Polyethylene Hdpe Pipe Fitting Gas Pipe Manual Butt Fusion Welding Machine

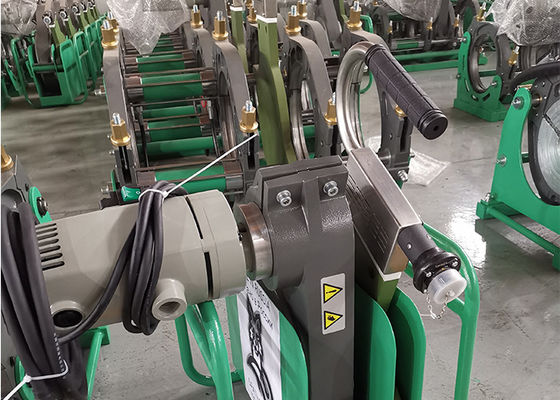

 SWT-V110/40M Polyethylene Hdpe Pipe Fitting Gas Pipe Manual Butt Fusion Welder

Manual Butt Fusion Welder Introduction:

SWT-V110M is manual butt fusion welder for pipes up to 110mm.
With compact and portable design,it will enable operators to work in the complicated condition.
The heating plate with digital display help operator reading the temperature in precise and convenient way.
It is suitable for welding plastic pipe and fittings made of HDPE,PP,PVDF.

Manual Butt Fusion Welder Specification:

Manual Butt Fusion Welder Advantages:

1) All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)

2) Provide on line video technique teaching of fusion welding

3) 2 years warranty

4) Provide customized welding machine

Features:

A. Heating Plate:

1.  Using Teflon coating material imported from Japan, after twice coating and three processes.

2. The solid core of the Heating plate is thickened and non-stick tube, the heat transfer is even, supporting the aviation connection line to ensure the contact safety of the power supply.

3. Compared with other manufacturers, the thickness of Heating plate is increased by 5mm, and the heat storage and thermal conductivity are strong.

B. Trimmer:

1. High power milling cutter, mirror cutter disk, strong motor, high concentricity, smooth milling.

2. High-power Bosch drill is adopted for milling motor, which is strong and strong without slipping.

3. The milling cutter is equipped with a limited position switch, which can be rotated only when placed in the frame to prevent accidental injury.
