40-110mm Aluminum Hdpe Pipe Manual Butt Fusion Welding Machine

40 - 110 Mm Aluminum Manual Plastic Butt Fusion Welder For HDPE Pipe

Manual Butt Fusion Welder Introduction:

SWT-V110/40M butt fusion welder apply to construction site, groove and join the PE, PP, PVDF pipes and pipe fittings, tubes and, also can be in workshop use;

The frame, milling cutter, independent the heating plate, mills and the heating plate bracket component.

Manual Butt Fusion Welder Specification:

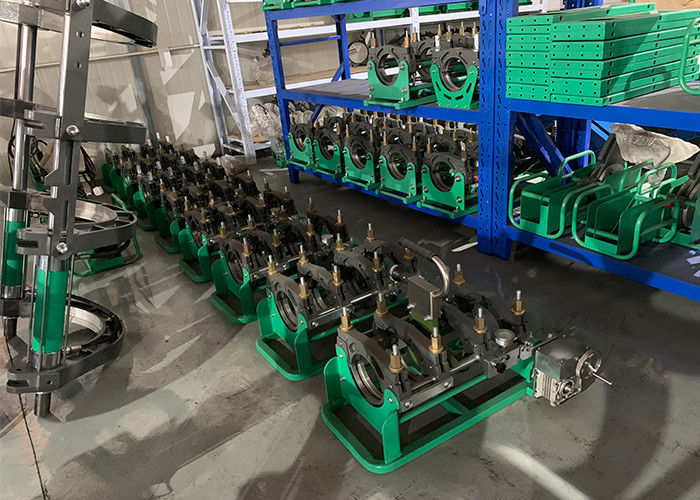

Display Pictures:

Features:

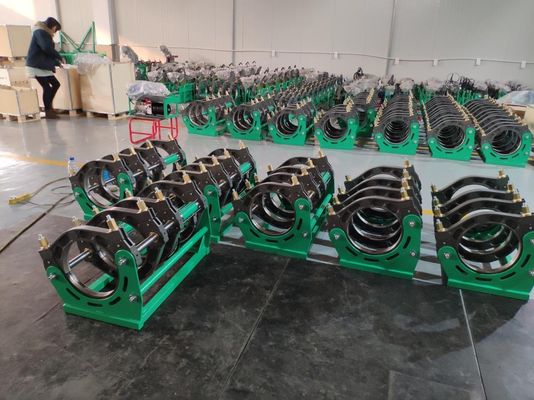

1. Main Body:

The main body supports and centres the plastic pipes with two fixed and two movable clamps.

Using the hydraulic pressure on the system, the two pistons on the carrying metal bars move the clamp forward and backward and supply the welding process.

2. Milling Cutter

The milling cutter is the tool which clean and smooth the both ends of the pipes before the heating process.

SWT-V110/40M butt fusion welding machine is designed for self aligning facer always produces parallel pipe faces.

3. Heater

The pipe ends will be heated by this heater before the welding process. The setting of the heater will be done by the thermostat on the plates. SWT-V110/40M butt fusion welder PTFE coated heating elements and uniform surface temperature.
