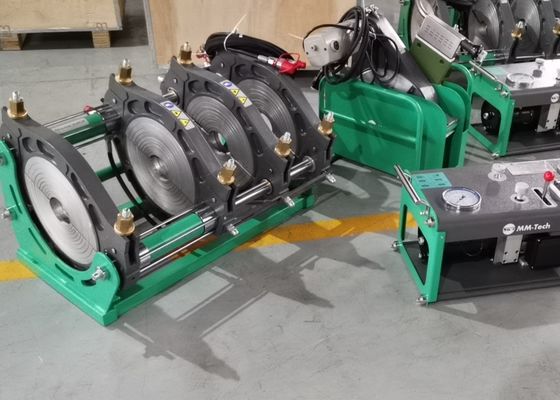

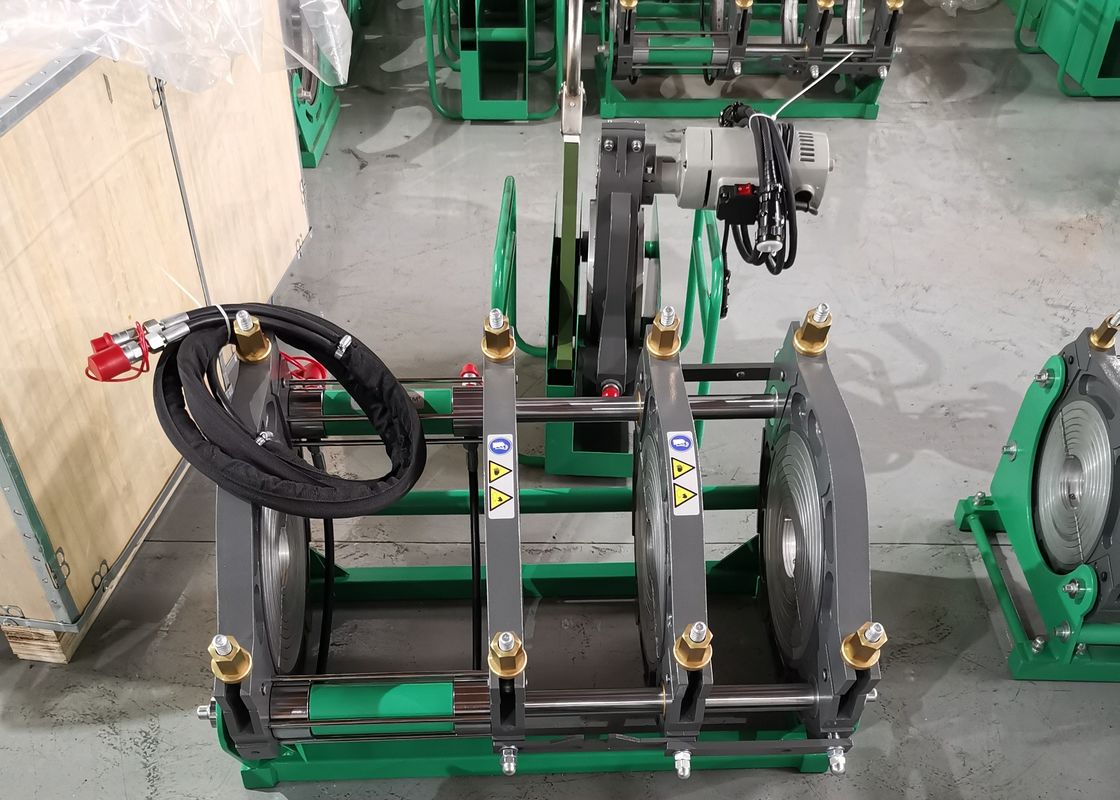

Pipe 50-200mm Manual Butt Fusion Welding Machine

Large Image : Pipe 50-200mm Manual Butt Fusion Welding Machine

Product Details:

Place of Origin:	Hebei,China
Brand Name:	MM-Tech
Certification:	CE,ISO
Model Number:	SWT-V200/50MS

Payment & Shipping Terms:

Minimum Order Quantity:	10 Sets
Price:	US$1200-US$1600
Packaging Details:	Plywood Case
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 Sets Per Month

Contact Now

Detailed Product Description

Product Name:	Butt Welding Fusion Machine Thermofusion Welding Machine	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Pipe Size:	50-200mm	Condition:	New
Type:	Manual	Power:	2.3kw
Warranty:	2 Years	Input Voltage:	110V/220V
Frequency:	50Hz	Usage:	Welding Pe,Pp,Pvdf,Pvc Pipe
Highlight:	200mm manual butt fusion welding machine , 50mm manual butt fusion welding machine , pipe hdpe butt fusion welding machine

DVS2207 SWT-V200 / 50MS Pipes Thermofusion Manual Butt Fusion Welding Machine Thermofusion Welder

Packaging & Delivery

Packaging Details

Packing in Wooden Box

shanghai/ningbo

Lead Time:

Quantity(Sets)	1 - 1	>1
Est. Time(days)	10	To be negotiated

Manual Butt Fusion Welding Machine Introduction:

SWT-V200/50MS is on-site manual butt fusion welding machine.
It is used to butt weld pipe and fittings such elbow, tees, wye and flange necks without any additional equipment by simply adjusting the clamps and drag bar.
It is suitable for welding plastic pipe and fittings made of HDPE, PP, PVDF and other thermoplastics material.

Manual Butt Fusion Welding Machine Specification:

Technical Parameters	SWT-V200/50MS
Welding Range O.D.	50,63-75-90-110-125-140-160-180-200 mm
Power Supply	(110V*) 220V, 50/60Hz
Rated Power	1.8 kw
Temperature Range	Max. 300ºC
Packing dimension	550480420 mm
Packing dimension	480420570 mm
Gross Weight	95 kgs

Manual Butt Fusion Welding Machine Application and Features:

Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop.
Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.
Removable PTFE coated heating plate with high accurate temperature control system;
Electrical planing tool.
Be made of lightweight and high strength material; simple structure, small and delicate, user friendly.
Low starting pressure ensures reliable welding quality of small pipes.
Changeable welding position enables to weld various fittings more easily.
High accurate and shockproof pressure meter indicates clearer readings.
Separate two-channel timer records time in soaking and cooling phases.

Optional parts:
1. Tube end device for short flange.
2. Data logger.

SWT-V200MS includes:

*A machine body with 2 aluminum made clamps;
*A Teflon coated heating plate with digital display, equipped with friendly handler;
*A electrical milling cutter;
*Support for milling cutter and heating plate.

Workshop:

FAQ:

Q1: Are you manufacturer or trading company?

A: We are Manufacturer with more than 10 years foreign trade experience. We have our own factory.

Q2: Can you produce based on our drawing & sample? We may also need our logo on it.

A: Yes, of course. We do OEM & ODM services. And definitely you can have logo on it.

Q3: What is the delivery time for bulk production?

A: About 30 days.

Q4: What about payment?

A: Usually we may ask for 30% T/T deposit and 70% T/T balance at the sight of B/L copy.

Q5: How do you control quality?

A: Under management of ISO9001 system, we check every process of production.
