CE 50-160mm Hdpe Butt Fusion Welding Machine

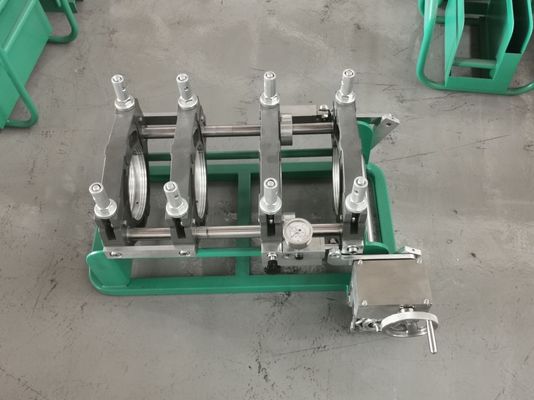

Large Image : CE 50-160mm Hdpe Butt Fusion Welding Machine

Product Details:

Place of Origin:	Hebei,China
Brand Name:	MM-Tech
Certification:	CE
Model Number:	SWT-V160/50M

Payment & Shipping Terms:

Minimum Order Quantity:	10 Sets
Price:	US$750-US$1750
Packaging Details:	Plywood Case
Payment Terms:	T/T, Western Union
Supply Ability:	1000 Sets Per Month

Contact Now

Detailed Product Description

Product Name:	Butt Fusion Welder	Option:	Digital Display Heating Plate
Pipe Size:	50,63,75,90,110,125,140,160	Package:	Wooden Box
Volume:	0.31CBM	Temp Deviation In Surface(170-250℃）:	＜±5℃
Heating Plate Max. Temo.:	270 ℃	Heating Plate Power:	1.0KW
Planning Tool Power:	0.7KW	Total Power:	1.7KW
Highlight:	160mm hdpe butt fusion welding machine , 50mm hdpe butt fusion welding machine , hdpe butt fusion welding machine CE

50 - 160mm Manual Butt Fusion Welder For Water Supply Plastic Hdpe Pipe

Butt Fusion Welder Description:

SWT-V160/50mm manual butt fusion welder suitable for welding of plastic pipes and / or fittings made of PE,PP, and PVDF, and can be operated in any complex work condition.
The operation is simple and easy to use, the material of the machine is light and the density is high, and it is portable and efficient.

Butt Fusion Welder Specification:

Pipe Size:	50,63,75,90,110,125,140,160
Working Voltage:	220V, 50/60HZ
Temp. Deviation in surface (170-250℃):	＜±5℃
Heating Plate Max.Temp.:	270℃
Heating Plate Power:	1.0KW
Planning Tool Power:	0.7KW
Total Power:	1.7KW
Volume:	0.31CBM
Option:	Digital Display Heating Plate
N.W/G.W:	50/60KG
Warranty:	2 years

Features:

1 Suitable for welding of plastic pipes and / or fittings made of PE, PP, and PVDF can be operated in any complex work condition.
2 Consists of basic frame, planing tool, heating plate and support for planing tool and heating plate.
3 Removable PTFE coated heating plate with separate temperature control system
4 Electric planing tool.
5 Be made of lightweight and high strength material; simple structure, small and delicate, user friendly.

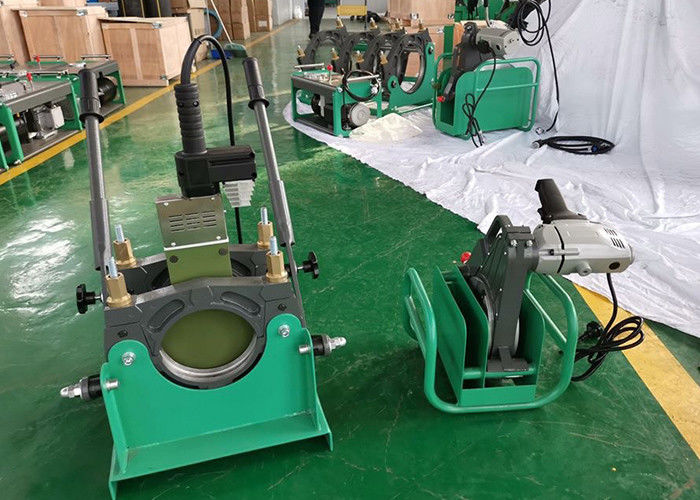

Physical Pictures:

CE 50-160mm Hdpe Butt Fusion Welding Machine 0

Services:

Pre-sale Services
24H/ 7D online support
Sample Testing support
View our factory

After-sale Services
Training how to instal the machine, training how to use the machine
Any parts broken or does not work under normal operating,we are free to provide.

Inspection execution standard:

All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)
International warranty:24months.

FAQ:

1. Certificate

--- We provide CE and ISO certification and official test reports for each machine

2. Voltage

---220V or 380V is normal voltage, can customized 110V,240V,450, and etc or according to your needs.

3. Mode of transportation

---Mostly by ship, less than 100kg, recommended by air or express.

CE 50-160mm Hdpe Butt Fusion Welding Machine 2
