50 - 160mm Manual Butt Fusion Welder For Water Supply Plastic Hdpe Pipe
Butt Fusion Welder Description:
SWT-V160/50mm manual butt fusion welder is suitable for PE and PP pipes and fittings. High quality design and construction provides an excellent machine for welding both on the worksite and in the factory. The use of high quality Aluminum casting allows for lower weight without compromising strength and performance.
Butt Fusion Welder Specification:
| Pipe Size: |
50,63,75,90,110,125,140,160 |
| Working Voltage: |
220V, 50/60HZ |
| Temp. Deviation in surface (170-250℃): |
＜±5℃ |
| Heating Plate Max.Temp.: |
270℃ |
| Heating Plate Power: |
1.0KW |
| Planning Tool Power: |
0.7KW |
| Total Power: |
1.7KW |
| Volume: |
0.31CBM |
| Option: |
Digital Display Heating Plate |
| N.W/G.W: |
50/60KG |
| Warranty: |
2 years |
Features:
● 110V voltage, manual welding of pipes, hot-melt butt welding of plastic pipes.
● It consists of a fixture frame, a heating plate, a milling machine (and its basket).
● Reasonable engineering mechanics design makes welding work more convenient and flexible.
● Four-card sleeve structure makes the pipe positioning better and firmer.
● If the clamshell structure is fixed on one side by the ferrule gland, the welding process is shorter and more effective.
●The locking mechanism can avoid the influence of external force during welding.
●The welding pressure is provided by the crank-driven mechanical mechanism, the transmission is stable and easy to operate.
● The motor drives the milling cutter.
● Excellent cost performance.

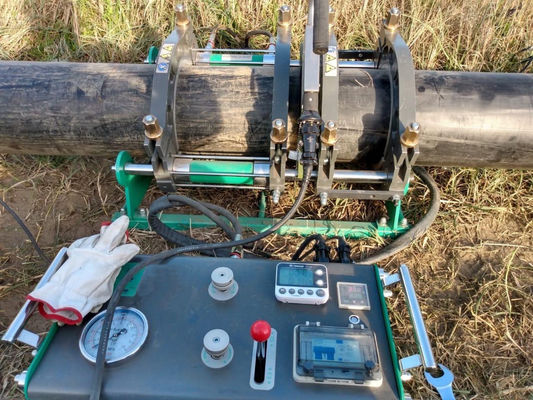

Physical Pictures:
Pre-sale Service:
1.24H/ 7D online support
2.Sample Testing support
3.View our factory
After-sale Services:
1.Training how to instal the machine, training how to use the machine
2.Any parts broken or does not work under normal operating,we are free to provide.
Inspection execution standard:
All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)
International warranty:24months.
