Vacuum Box 230v Air Leak Testing Equipment For Test Welding Quality

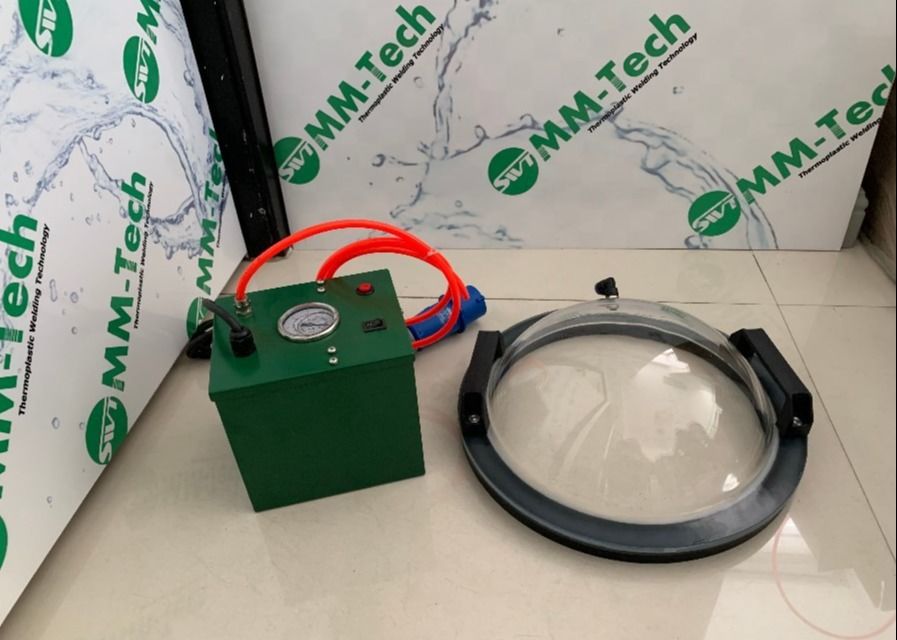

Large Image : Vacuum Box 230v Air Leak Testing Equipment For Test Welding Quality

Product Details:

Place of Origin:	Hebei,China
Brand Name:	MM-TECH
Certification:	CE,ISO
Model Number:	SWT-NS003

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD 780 - USD 850 per set

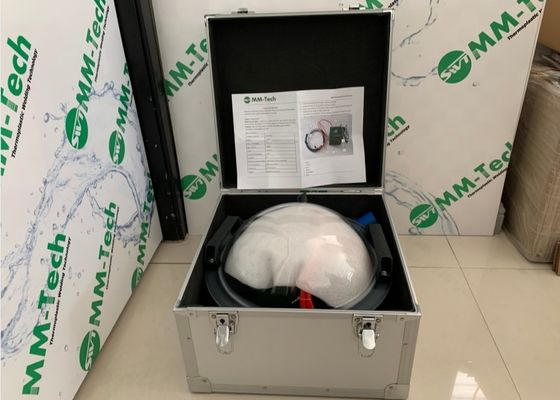

Packaging Details:	Aluminum Alloy Box
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 sets per week

Contact Now

Detailed Product Description

Model:	SWT-NS003	Weight:	15kg
Frequency:	50/60HZ	Temperature For Using:	5-40℃
Input Power:	<150W	Voltage:	230V
Product Name:	Vacuum Leak Test Cover
Highlight:	230v air leak testing equipment , 150w air leak testing equipment

Vacuum air leak tester is one of MM-TECH testing tools with geomembrane welding equipment which used for leak detection on job site.

Packaging & Delivery:

Selling Units:Single item

Single package size:40X38.5X28 cm

Single gross weight:9.000 kg

Lead Time:

Quantity(Sets)	1 - 5	>5
Est. Time(days)	10	To be negotiated

Description:

Shape:hemispherical

Working principles:pump is on, vacuum the hood, then close the valve, After some minutes, if the figure is not moving, pressure not changing means no leaking.

Features:fast vacuuming, high vacuuming, light weight, safe and reliable, especially for testing leak on job site.

Operating Steps:

Vacuum Box 230v Air Leak Testing Equipment For Test Welding Quality 0

Clean the welding part and lather around welding lap.
Locate the hood (1) and plug (6) connects to power.
Turn on the switch (5) and vacuum testing space, when the hand of watch (4) reaches 20-30 cm/Hg, do close switch (5).
Find if there is air leaking to observe bubble on testing area through the hood.
After test, collect the hood, then clean the sealing piece and put it in the box.

Specifications:

Voltage	220V
Frequency	50HZ
Power	150W
Max. Vacuum	84KPa
Max.air discharge	30L/min
Noise	48dB
Condition temperature	5-40℃
Insulation	B
Withstand Voltage Strength	1500V/50HZ 1min no breakdown
Net weight	8.4 kg
Thermal Protection	Auto reset 130±5℃
Testing size	700 square cm
