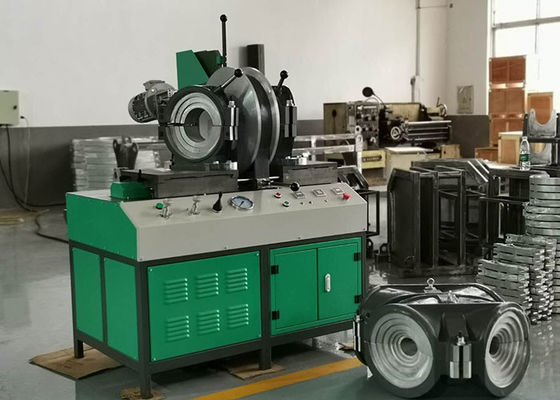

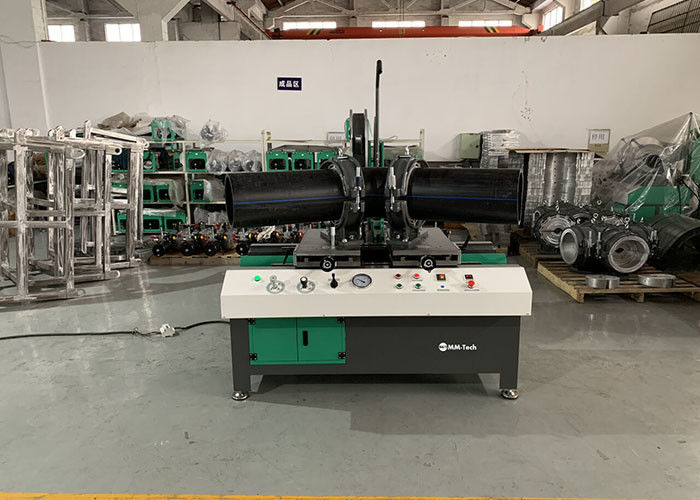

Workshop Multi Angle Welding 200 - 450MM Fitting Fusion Machine

Large Image : Workshop Multi Angle Welding 200 - 450MM Fitting Fusion Machine

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-MA450/200

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$32,900-43,180/set
Packaging Details:	4 Plywood Cases
Delivery Time:	Within 5 days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	24 sets / month

Contact Now

Detailed Product Description

Welding Range (Metric - OD):	200 - 450MM	Max Heater Temperature:	270℃
Input Voltage Requirement:	380V, 50/60Hz, 3P	Heater Power:	12.3KW
Facer Power:	3.0KW	Hydraulic Unit Power:	2.2KW
Total Power Requirements:	17.5KW	Reducer Inserts:	200, 225, 250, 280, 315, 355, 400 MM
Highlight:	200mm fitting fusion machine , 400mm fitting fusion machine , integrated structure fitting fabrication machine

Workshop Multi-Angle Fitting Welding Machine Product Profile:

High Performance Workshop Fittings Fabrication machine suitable for producing segmented elbow, tee, croos from 0-90℃ and Y shape(45℃ and 60℃ with optional parts) fittings of PE, PP, PB & PVDF for all SDR & Pressure stages.
Complete machine consists of basice frame with built in facer, heater & hydraulic unit, tool box, operational manual, manufacturer's test certificate & clamping inserts & accessories for producing tees, elbows & cross
High quality anti-stick PTFE coated heating plate with precision temperature control system.
Equipped w ith two inbuilt timer controller for notifyting soaking & cooling time.
High quality Electric facer with safety limit switch enbales to start only when it is safe.
Low starting pressure makes it easy to fabricate al types of fittings.
Machine base with drawer for keeping tools & clamps

Workshop Multi Angle Welding 200 - 450MM Fitting Fusion Machine 0

Workshop Multi-Angle Fitting Welding Machine Accessories:
