20 - 40mm Plastic Water Pipe OEM Socket Fusion Welder Machine

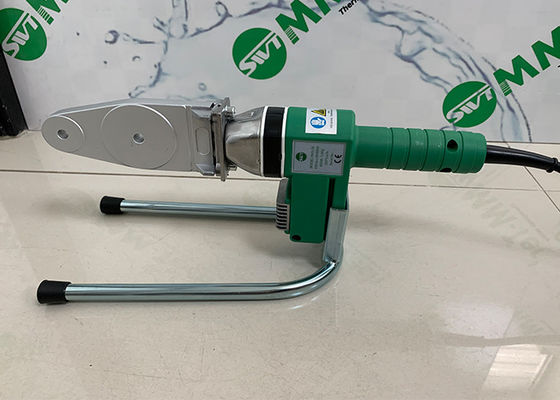

Large Image : 20 - 40mm Plastic Water Pipe OEM Socket Fusion Welder Machine

Product Details:

Place of Origin:	China
Brand Name:	MM-Tech
Certification:	CE
Model Number:	THJ-40

Payment & Shipping Terms:

Minimum Order Quantity:	100 set
Price:	$42-$58 /set
Packaging Details:	440290250 mm
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union, D/P
Supply Ability:	100 sets / per week

Contact Now

Detailed Product Description

Product Name:	Socket Fusion Welder	Welding Size:	20-25-32-40mm
Suit Material:	PP-R/PE/PB Etc	Dimension:	440290250
Voltage:	220V/110V	Frequency:	50Hz/60Hz
Working Temperature:	200-279℃	Warranty:	2 Years
Power:	650W	OEM:	Yes
Highlight:	20mm socket fusion welder , 40mm socket fusion welder , oem ppr socket fusion welding machine

20 - 40mm Socket Fusion Heating Machine Plastic Water Pipe Welding Machine

Socket Fusion Welder Presentation:

WATER PIPE WELDING TIME REFERENCE

1, ACCURATELY MASTER THE HEATING TIMEWATER PIPE WELDING TIME REFERENCE

If the heating time ls too short, It is easy to cause uneven heating of the plpe fittings. This leads to diffmculties In matching. the heating time ls too long. The plpe fittings are easy to melt and cause too much colloldal substance to be lost. The heating time selection can refer to the following table.

2,THERE SHOULD BE NO ROTATION WHEN DOCKING

Key points for hot-melt connection of plpes and fittings: After the heating time ls reached,Immedlately remove the plpes and fittings from the heating Jacket and heating head at the same time,and Insert them to the marked depth In a stralght line wlthout rotation,and a unlform flange ls formed at the Joint

PIPE DIAMETER /mm	MELTING TIME/s	PIPE DIAMETER/mm	MELTING TIME/s
20	5	63	24
25	7	75	30
32	8	9o	40
40	12	110	50
50	18

Socket Fusion Welder Instruction:

1. Clean repair position: Find the repair position and clear the hole surface.

2. Heating: Choose the right repair bar and push the bar and repair hole into the socket.

3. Connection: Insert the heated bar in the hole exactly adjustment finish in 5s and cooling.

4. Cutting the rest bar: Cutting the rest bar materail and keep it, bar can be used times.

Tips:

Includes:	1. 1 PPR welding machine

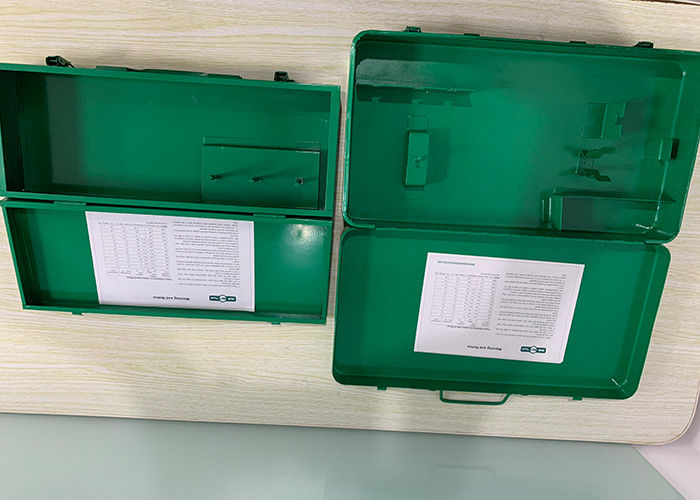

	2. 1 metal case
	3. 1 table stand
	4. 2 wrenches
	5. 2 bolts
	6. 1 ste black welding socket 20mm, 25mm, 32mm and 40mm

Factory Display:

20 - 40mm Plastic Water Pipe OEM Socket Fusion Welder Machine 0

FAQ:

Q: What is your MOQ?
A: As customer's request.

Q: Why choose us?
A: We are a professional and leader of HDPE pipe factory, we offer pipeline system one stop services with competitive price and fast delivery time, and we insure our quality is the second to none.

Q: How to buy the product?
A: Contact with us by email or by Trade Manager, and inform us which product and quantity that you need, we will contact you immediately. More specify the information that you provided more faster and easier you will get the quotation.

Q: Can I make my own design and logo on the product?
A: Yes, we do OEM. Welcome partner from globally, we can make your product in China.

Q: What's the payment term?
A: Order amount <=8,000USD, 100% in advance.
Order amount>=1,2000USD, 30% T/T in advance, balance before shipment.
Order amount>20,000USD, 30% T/T in advance, balance L/C at sight acceptable.
Order amount>100,000USD, 100% L/C at sight acceptable.

Q: Still have more questions?
A: Please use the table below and send your questions to us. Thank you.
