Multi Angle Fitting 140mm Fabrication Welding Machine

Large Image : Multi Angle Fitting 140mm Fabrication Welding Machine

Product Details:

Place of Origin:	China
Brand Name:	MM-Tech
Certification:	ISO,CE,
Model Number:	SWT-MA315

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$12500-$16000 per set
Packaging Details:	Plywood Case With Pallet
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union,
Supply Ability:	100 sets per week

Contact Now

Detailed Product Description

Product Name:	Fabrication Welding Machine	Pipe Sizes:	90,110,125,140,160,180,200,225,250,280,315
Payment Method:	Bank Account, Western Union	Available Options:	Clamps, Hydraulic Locking
Packing Cases:	4 Plywood Cases	Heating Plate Max. Temp:	270 Degree
Total Power:	7.25KW	Shippment:	By Sea
Weight:	890kg
Highlight:	140mm fabrication welding machine , multi angle fabrication welding machine , multi angle fitting fusion machine

SWT - MA315 Workshop Fittings Welding Machine Fabricating 90-315mm PE PiPE

Workshop Fitting Fusion Machine Introduction:

This type of Fabrication Fitting Machine suitable for welding of plastic pipes and fittings made from PE, PP & PVDF.

Welding position can transform that it is convenient for welding all kinds of pipe fittings.

Workshop Fitting Fusion Machine Specification:

Model	SWT-MA315
Pipe sizes(mm)	90,110,125,140,160,180,
Pipe sizes(mm)	200,225,250,280&315mm
Heating plate max.temp.	270°C
Temp.deviation in surface(170-270°C)	<±5°C
Pressure adjustable ranges	0-6Mpa
Working voltage	380V,50HZ
Heating plate power	5KW
Hydraulic unit power	1.5KW
Planing tool power	0.75KW
Total power	7.25KW

Available options:

Wyes clamps φ450(45°and 60°): inserts from 200mm to 450mm

Clamps for welding flange necks

Imperial inserts

Hydraulic open/close elbows clamp

Hydraulic open/close tees and crosses clamp

Hydraulic locking

Package & Delivery:

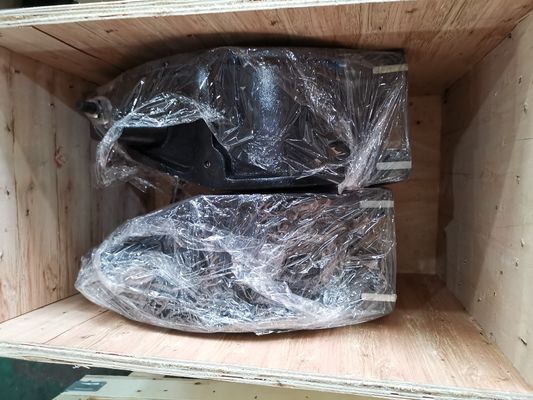

Multi Angle Fitting 140mm Fabrication Welding Machine 0

Advantages:

1) CE, SGS, ISO9001 certificate

2) Provide on line video technique teaching of fusion welding

3) 2 years warranty

4) Provide customized welding machine

Service:

Standard:Approved by ISO9001, CE,SGS,ROSH,EMC standard

Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.

Products:

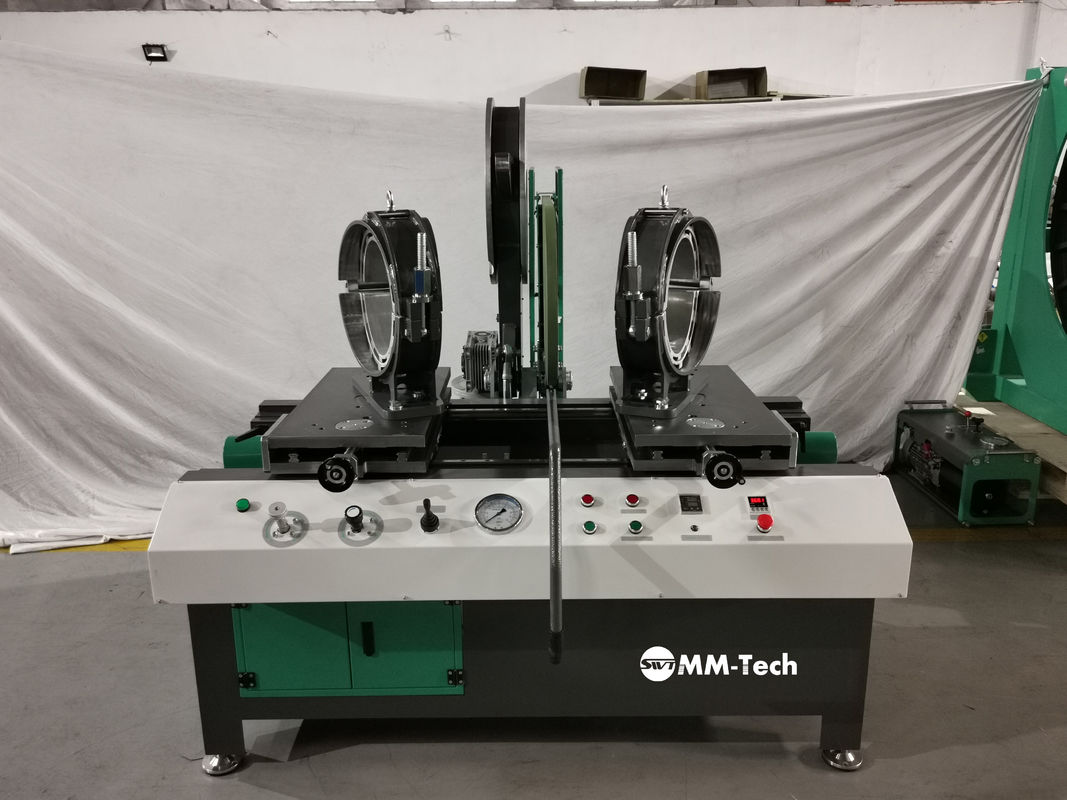

Multi Angle Fitting 140mm Fabrication Welding Machine 1
