Butt Fabrication Welding Machine To Workshop Fitting Multi Angle Fitting

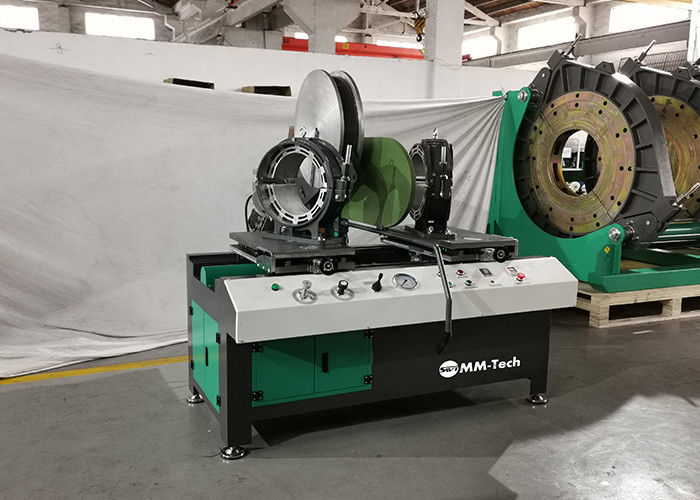

Large Image : Butt Fabrication Welding Machine To Workshop Fitting Multi Angle Fitting

Product Details:

Place of Origin:	China
Brand Name:	MM-Tech
Certification:	ISO,CE,
Model Number:	SWT-MA315

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$12500-$16000 per set
Packaging Details:	Plywood Case With Pallet
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union,
Supply Ability:	100 sets per week

Contact Now

Detailed Product Description

Product Name:	Fabrication Welding Machine	Pipe Sizes:	90,110,125,140,160,180,200,225,250,280,315
Working Voltage:	380V ±10%,50/60Hz	Packing Cases:	4 Plywood Cases
Heating Plate Max. Temp:	270 Degree	Shippment:	By Sea
Delivery Time:	30 Days	Weight:	890kg
Moq:	1 Set
Highlight:	multi angle fitting fabrication welding machine , butt fabrication welding machine , workshop fitting saddle welding machine

Butt Welding Machine Workshop Fitting Multi-Angle Fitting Saddle Fusion Machines

Workshop Fitting Fusion Machine Introduction:

It is suitable for fabricating elbow, tee, cross and Y shape (45° and 60°)fittingsof PE PP PVDF in workshop.;
The machine hase integrated structure. Nothing remains but to choose the differentspecial clamps while fabricating different fittings.

Workshop Fitting Fusion Machine Specification:

Model	SWT-MA315
Pipe sizes(mm)	90,110,125,140,160,180,
Pipe sizes(mm)	200,225,250,280&315mm
Heating plate max.temp.	270°C
Temp.deviation in surface(170-270°C)	<±5°C
Pressure adjustable ranges	0-6Mpa
Working voltage	380V,50HZ
Heating plate power	5KW
Hydraulic unit power	1.5KW
Planing tool power	0.75KW
Total power	7.25KW

Available options:

Wyes clamps φ450(45°and 60°): inserts from 200mm to 450mm

Clamps for welding flange necks

Imperial inserts

Hydraulic open/close elbows clamp

Hydraulic open/close tees and crosses clamp

Hydraulic locking

Sofa Factory:

Company Introduction:

The factory	Plant size	lt covers an area of 2,000square	Eight years of professional
	Quality of employees	More than 80 percent of employees have more than five vears of workin	Professional engineer team
	Foreign trade experience	In 16 years, the value of foreign trade has reached 20 million RMB	The products are exported all over the world
0ur Service	manufacture	Manual testing	Test five times before shipment
	deliver goods	sealed wooden	48 hours of delivery
	after sale	one year warranty	Life-long

Package & Shipping:

Butt Fabrication Welding Machine To Workshop Fitting Multi Angle Fitting 1

Service:

Standard:Approved by ISO9001, CE,SGS,ROSH,EMC standard

Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.
