380 V Pe Fittings Fabrication Welding Machine

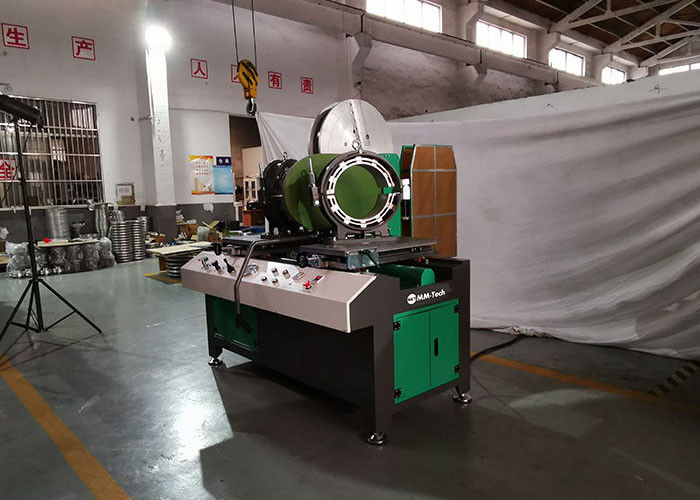

Large Image : 380 V Pe Fittings Fabrication Welding Machine

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-MA315

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$$16,000-19,000/SET
Packaging Details:	Plywood cases
Delivery Time:	Within 7 days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	1552 sets per week

Contact Now

Detailed Product Description

Power Supply:	380V, 50/60Hz	Rated Power:	5.25kW
Piston Area:	20.02 Cm²	Material:	PE-PP-PPR-PVDF
Net Weight:	780 Kg	Dimension:	1350 X 1350 X 1370 Mm
Highlight:	pe fittings fabrication welding machine , pe welding fitting fabrication machine , 380 v fabrication welding machine

PE Fittings Fabrication Welding Machine Standard Composition

Basic machine complete with two carriages, both driven by hydraulic system.
Manual hydraulic control panel with all functional keys and buttons plane layout.
Electrical trimmer with gear and safety micro switch.
PTFE coated heating plate with steel shield.
Left and right elbow clamps φ315mm with full set of aluminum inserts from φ90mm to φ280mm.
Left and right 90°Tees and Crosses clamps φ315mm with full set of aluminum inserts from φ90mm
to φ280mm.

380 V Pe Fittings Fabrication Welding Machine 0

PE Fittings Fabrication Welding Machine Optional Accessories
