500mm Hdpe Fittings Fabrication Welding Machine Making Reducing Cross

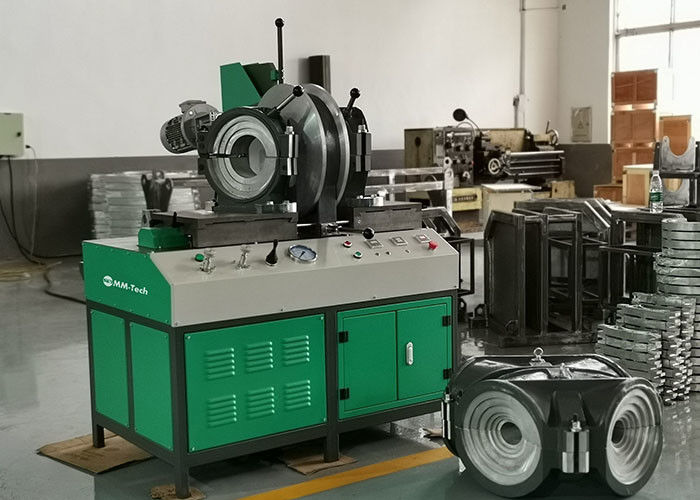

Large Image : 500mm Hdpe Fittings Fabrication Welding Machine Making Reducing Cross

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-MA800

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$72,580-US$82,580/SET
Packaging Details:	11 Plywood cases
Delivery Time:	Within 7 days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	1552 sets per week

Contact Now

Detailed Product Description

Pipe Size:	450, 500, 560, 630, 710, 800mm	Working Voltage:	380V, 50Hz
Pressure Adjustable Ranges:	0~0.14MPa	Planning Tool Power:	4kW
Total Power:	47.23kW	Weight:	4900KG
Highlight:	500mm fabrication welding machine , reducing cross fabrication welding machine , reducing cross fitting fabrication machine

HDPE Fittings Fabrication Machine Characteristics

Suitable for fabricating elbow, tee, cross and Y shape (45° And 60 ° ) fittings of PE PP PVDF in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting.
Removable PTFE coated heating plate
Separate two-channel timer records times in soaking and cooling phases.
Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings
Low starting pressure and high reliable seal structure
Electric planing tool with safety limit switch

HDPE Fittings Fabrication Machine Technical Data Sheet

Model		SWTMA315
Welding Range(mm)		90 110 125 140 160 180 200 225 250 280 315
Application		0-90
Heating Plate Max.Temp.		270℃
Temp. Deviation in Sureface		≤±7℃
Working Voltage		380V 50/60Hz
Heating Plate Power		5.0KW
Planning Tool Power		1.5KW
Hydraulic Unit Power		0.75KW
Total Power		7.25KW
Pressure Adjustable Ranges		0-6Mpa
Weight		760KG
Packing	Wooden Box	4 Wooden Boxes
	Volume	3 CBM
