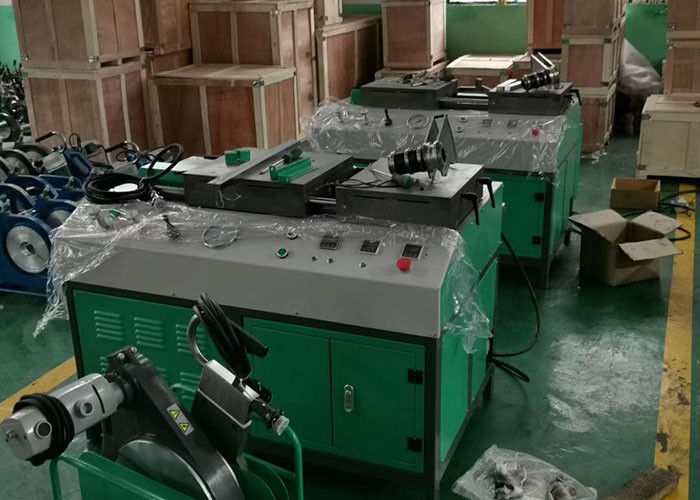

SWT-MA315 Workshop Fitting PVDF Butt Welding Machine

Large Image : SWT-MA315 Workshop Fitting PVDF Butt Welding Machine

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-MA315

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$10,800-US$16,800/SET
Packaging Details:	4 Plywood cases
Delivery Time:	Within 7 days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	1552 sets per week

Contact Now

Detailed Product Description

Pipe Size:	90-315mm	Working Voltage:	380V, 50Hz
Pressure Adjustable Ranges:	0~6MPa	Planning Tool Power:	1.5kW
Total Power:	7.25kW	Weight:	890KG
Highlight:	pvdf butt welding machine , 315mm butt welding machine , pvdf fitting fabrication machine

Fittings Workshop Welding Machine Product Application and Features

Suitable for fabricating elbow, tee, cross and Y shape (45° And 60 ° ) fittings of PE PP PVDF in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting.
Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings
Removable PTFE coated heating plate
Electric planing tool with safety limit switch
Low starting pressure and high reliable seal structure
Separate two-channel timer records times in soaking and cooling phases.
High-accurate and shockproof pressure meter indicates clearer readings. Digital pressure meter is installed on machines above SWT-MA315

Fittings Workshop Welding Machine Optional Accessories

Special clamps for welding flange stub
Special clamps for short spigot fitting
pecial clamps for welding Y shape (45° And 60 ° ) fittings

Fittings Workshop Welding Machine Technical Data

Model	SWT-MA315
Pipe Sizes	90, 110, 125, 140, 160, 180, 200, 225, 250, 280, 315
Application	0~90 elbow, tee, cross, 45° and 60° wyes (optional parts should be used)
Heating Plate Max. Temp.	270º C
Temp. deviation in surface (170~250 Degree)	± 7º C
Pressure adjustable ranges	0~6.3MPa
Working Voltage	380V, 50Hz
Heating Plate Power	5.15KW
Hydraulic unit power	1.5 KW
Planing tool power	0.75 KW
Total Power	7.4 KW
Total Weight	884 KG Exclude optional parts
