Automatic Docking Butt Welder HDPE Butt Fusion Machine Welding Range From 200-450mm
Packaging & Delivery
Port:Tianjin Port
Lead Time:
| Quantity(Units) |
1 - 10 |
>10 |
| Est. Time(days) |
5 |
To be negotiated |
Automatic Butt Welder Features:
- The CNC hydraulic control box is available for all MM-TECH basic model machines, covering the size from O.D 50mm through O.D 1200mm.
- Fully encased control box makes the protection level up to IP 54.
- Due to the unique powertrain, it could not only create sufficient hydraulic power during welding procedure, but also it makes sure the precise control.
- And most importantly, it greatly reduce the weight of control box. And the servo-motor applied significantly reduce the failure possibility and maintenance cost.
- All connections sockets are located at the back of hydraulic control unit, including sockets for trimmer tool and heating plate. No additional power distributor is needed.
- Various welding standards (DVS, ISO, WIS, etc.) could be pre-installed by different languages upon your request.
- All welding reports could be saved immediately to internal memory with a capacity of 2000 reports after welding accomplished, or print the report.
- Meanwhile, it is available for downloading through the USB interface.
- All MM-TECH V-CNC series hydraulic control box is featured with PLC touch screen, extremely user-friendly RFID access technology.
- Troubleshooting and program upgrade are available for remote control.
- When heating plate hook up with machine chassis, inserting or release the heater will be controlled remotely by hydraulic unit,which is same as trimmer.
- These characteristics prevent the operators from being injured.
Automatic Butt Welder Introduction:
Suitable for welding of plastic pipes and fittings made from PE,PP & PVDF . Be made of Aluminium material. Consists of planning tool, Heating Plastic, Basic Frame, Hydraulic unit and Support.
Automatic Butt Welder Specification:
| Welding Range |
280mm-500mm |
| Reducing Inserts |
280mm-315mm-355mm-400mm-450mm-500mm |
| Ranges of Application |
PE,PP and PVDF |
| Working Voltage |
400V±10%,50/60Hz |
| Total Power |
9.5KW |
| Heating Plate |
6.50KW |
| Planning Tool |
1.5KW |
| Hydraulic Unit Motor |
1.5KW |
| Environment Temperature |
-10°~45° |

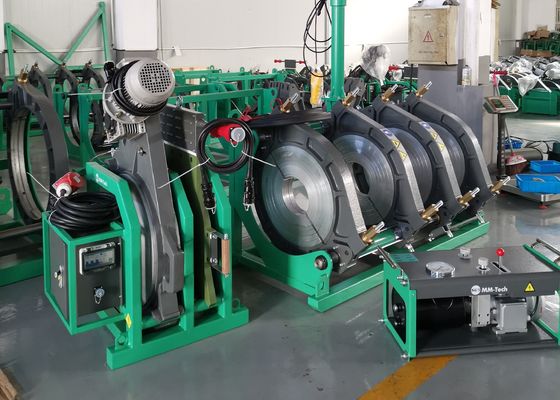

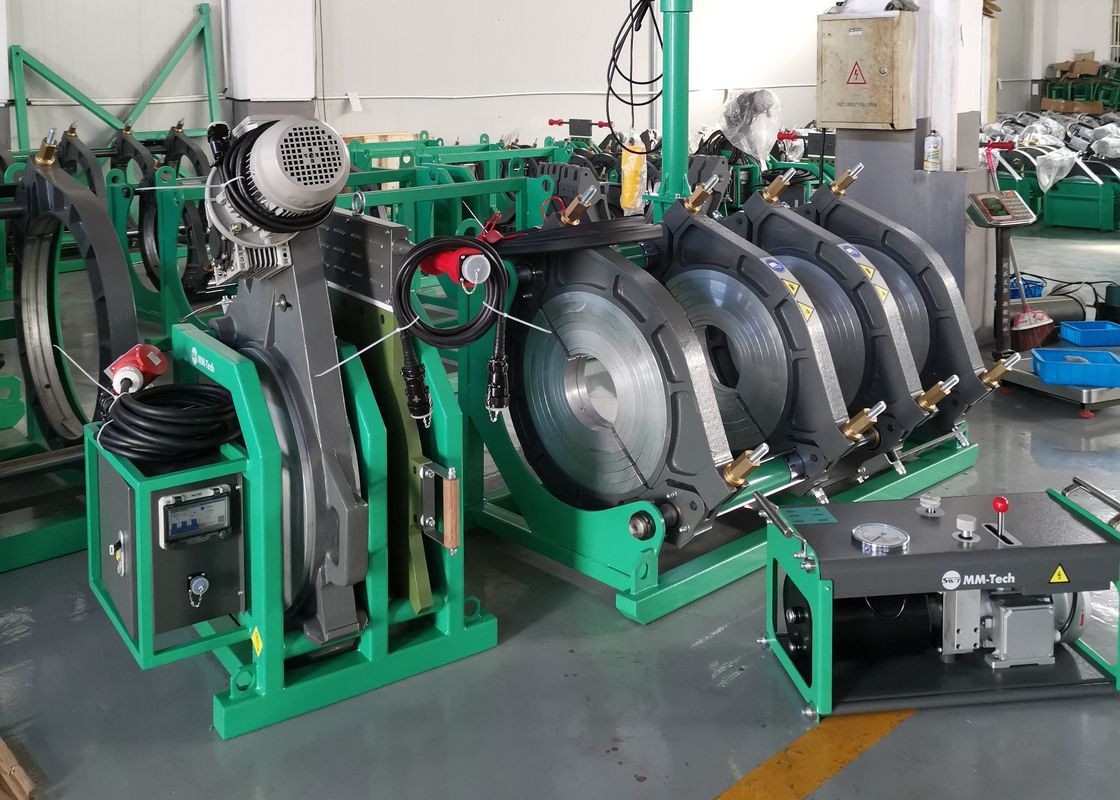

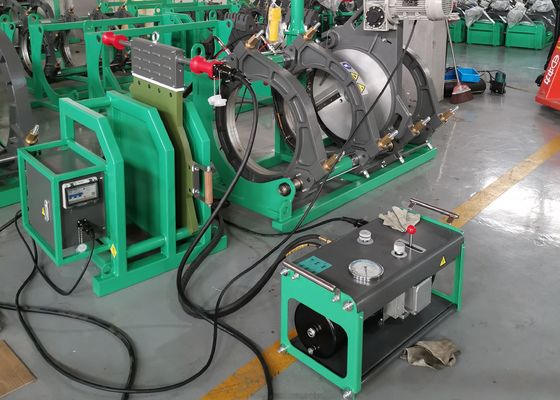

SWT-V500A includes:
A machine body with 4 clamps and 1 automatic console with quick connector;
A Teflon coated heating plate with separate temperature control system;
Self detaching device: helps removing the heating plate after soaking process;
A electrical milling cutter;
Hydraulic hoses with quick couplings;
Support for milling cutter and heating plate.
FAQ:
Q1: Are you manufacturer or trading company?
A: We are Manufacturer with more than 10 years foreign trade experience. We have our own factory.
Q2: Can you produce based on our drawing & sample? We may also need our logo on it.
A: Yes, of course. We do OEM & ODM services. And definitely you can have logo on it.
Q3: What is the delivery time for bulk production?
A: About 30 days.
Q4: What about payment?
A: Usually we may ask for 30% T/T deposit and 70% T/T balance at the sight of B/L copy.
Q5: How do you control quality?
A: Under management of ISO9001 system, we check every process of production.
After-sales Service:
We always provide high quality products and workable price for every clients and have won the trust,
enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating,
we provide them for free!
