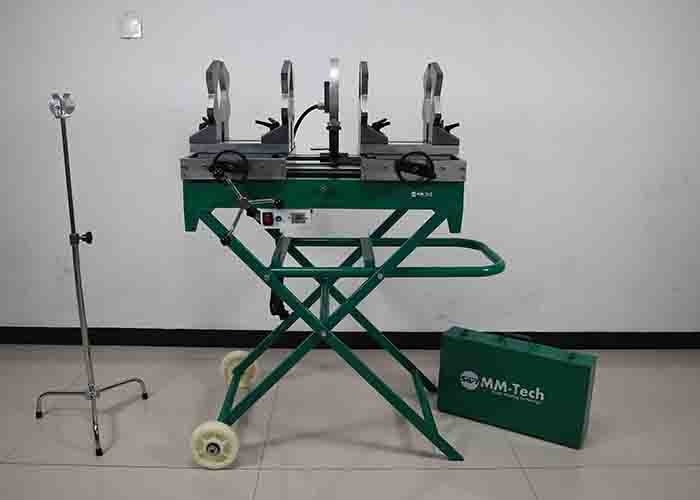

Prisma 125 Manual Table Socket Fusion Welder For Ppr Pipe

Prisma 125 Manual Table Socket Fusion Welder For Ppr Pipe
Prisma 125 Manual Table Socket Fusion Welder For Ppr Pipe Prisma 125 Manual Table Socket Fusion Welder For Ppr Pipe

Large Image :  Prisma 125 Manual Table Socket Fusion Welder For Ppr Pipe

Product Details:
Place of Origin: Hebei,China
Brand Name: MM-Tech
Certification: ISO,CE
Model Number: Prisma 125
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD2000-USD2600 per set
Packaging Details: Wooden Package
Payment Terms: T/T, Western Union
Supply Ability: 100 sets per week
Contact Now
Detailed Product Description
Product Name: Table Socket Fusion Welding Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas
Materials: HDPE,PPR,PPH,PB, PVDF Transport Case Wood: 1500*800*1300mm
Rated Voltage: 220VAC-50/60Hz Working Range: 25-125mm
Certifacate: CE,DVS Warranty: 2 Years
Rated Power: 1400W Weight: 150kg
Highlight:

prisma 125 socket fusion welder

,

manual table socket fusion welder

,

125mm ppr socket fusion welding machine

Prisma 125 125mm Manual Table Socket Fusion Welding Machine For PPR Pipe



Socket Fusion Welding Machine Specification:


Model Prisma125 Prisma160
Working tempera-
ture		 180-280℃ 180-280℃
Materials HDPEPP-R/PPH/PB/PVDF
Rated voltage 220VAC-50/60HZ
Rated power 1400W 2000w
Working range 25-125mm 75-160mm
Dimensions machine
working		 1500*840*1260 1600*900*1100
Transport case
wood		 1500*800*1300 1600*920*1150
weight prisma only 68-100kg 78-110kg
weight case wood 53kg 60kg



Prisma 125 Manual Table Socket Fusion Welder For Ppr Pipe 0

socket
20 25 32  40 50 63      75 90 110 125 140 160
0.12 0.15 0.22 0.32 0.45 0.60 0.77 1.2 1.82 2.13 2.68 3.12
7.86Kg 5.8Kg





Features:



1. Accurately control the welding depth ofdifferent pipes and fittings
2. Accurate control the depth that pipe in-sert fittings
3. The diameter selector can avoidover-meltingcaused byexcessiveforcewhen pipes are inserted into pipes
4. Mechanical operation makes each weld-ing interface Standardization ,improve weld-ing quality.



Prisma 125 Manual Table Socket Fusion Welder For Ppr Pipe 1

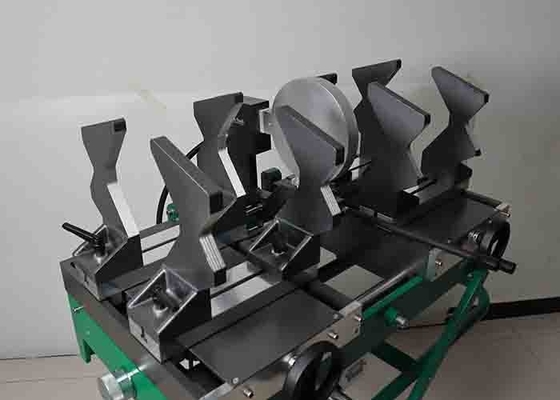

Basic composition:



1. Tripod Stand

2. Clamps

3. Heater Plate

4. Machine Rack

5. Big Handle Wheel

6. Control Box

7. Anchor Button

8.Small Handle Wheel

9. Working Stand With Wheel



Package:



 Prisma 125 Manual Table Socket Fusion Welder For Ppr Pipe 2


After-sales Service:

We always provide high quality products and workable price for every clients and have won the trust,
enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating,
we provide them for free!
