Prisma125 Socket Welding Machine Ppr Pipe Hot Melt Fusion Bench

Large Image : Prisma125 Socket Welding Machine Ppr Pipe Hot Melt Fusion Bench

Product Details:

Place of Origin:	China
Brand Name:	MM-Tech
Certification:	CE
Model Number:	Prisma125

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Fumigation Wooden Box
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union
Supply Ability:	10 sets

Contact Now

Detailed Product Description

Model:	TSC-125	Shipping Method:	Courier, Sea/ Air Freight
Package:	Wooden Carton	Rated Voltage:	220VAC/50HZ
Materials:	PE/PP/PVDF	Working Range:	20-125mm
Sea Port:	Shanghai	Customized:	Support
NW/GW:	40/60kg	Original:	China
Highlight:	125mm socket welding machine , hot melt bench socket welding machine , pvdf socket fusion welding machine

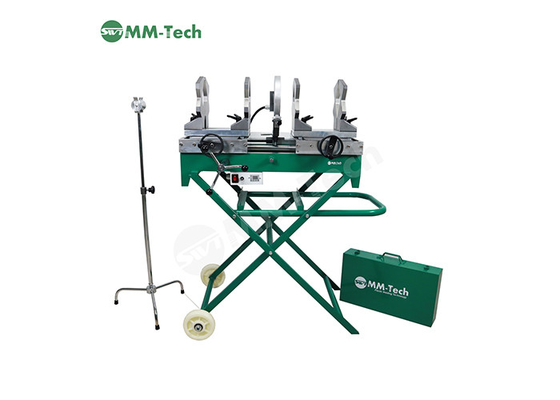

Prisma125 PPR Pipe Hot Melt Fusion Bench Socket Welding Machine

Table Socket Fusion Welding Machine Presentation:

PRISMA 125 this workshop/construction site welding machine is suitable for the socket fusion of pipes and fittings up to an OD of 125 mm (¾” to 4”), in accordance with the standards in force. And it is available in two versions, depending on the type of sockets & spigots supplied: PRISMA 125 type A and PRISMA 125 type B.

Table Socket Fusion Welding Machine Specification:

Model	Prisma125	Prisma160
Working tempera- ture	180-280℃	180-280℃
Materials	HDPE/PP-R/PPH/PB/PVDF
Rated voltage	220VAC-50/60HZ
Rated power	1400w	200ow
Working range	25-125mm	75-160mm
Dimensions machine working	15008401260	16009001100
Transport case wood	15008001300	16009201150
Weight prisma only	68-100kg	78-110kg
Weight case wood	53kg	60kg

Standard Composition:

1. Machine body complete with an electronic socket welder
2. Steel case complete with sockets and spigots from Ø 25 to Ø 125 mm and tool kit
3. Pipe support tripod
4. Sliding trolley

Prisma125 Socket Welding Machine Ppr Pipe Hot Melt Fusion Bench 0

Die Head Size:

20,25,32,40,50,75,63,90,110,125 sockets and spigots

Prisma125 Socket Welding Machine Ppr Pipe Hot Melt Fusion Bench 1

Service:

1. Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.

2. 24-hour online customer service to solve after-sales problems, professional engineer guidance + video teaching

Prisma125 Socket Welding Machine Ppr Pipe Hot Melt Fusion Bench 2
