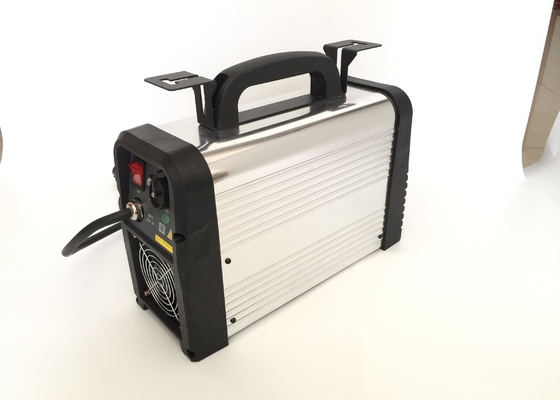

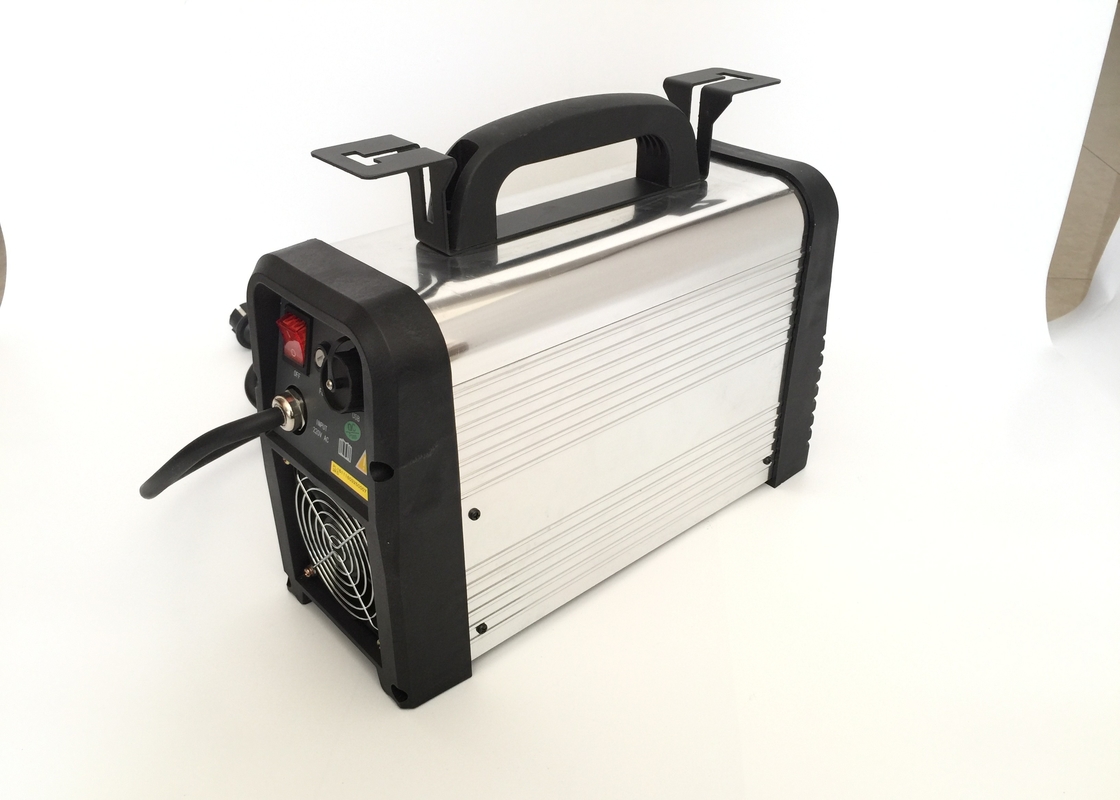

Electrofusion Welding Machine Application:
The product is the special connecting device used to polythene pressure and non-pressure pipe electrofusion of socket connection.
Electrofusion Welding Machine Specification:
| Model |
DPS20-3K5 |
| Rated Power |
3.5KW |
| Input Voltage |
220V |
| Rated Current |
55A |
| Rated Voltage |
75V |
| Welding Specification |
Dn20-315 |
| L*W*H |
352X188X341 |
| Weight |
15KG |
Electrofusion Welding Machine Features:
Advanced digital MCU as control core,with abundant parameter setting,detection and perfect protection functions.
High brightness LCD,multi language operation,friendly human-machine interface.
20% wide supply voltage input,fully adapted to complex construction site specific power envionment.
Swiftly output response time when power supply breaks,highstability.
0.5% high precision power,time control,ensure welding quality.
USB read,import welding records storage function.
Keyboard manual input or barcode scan input.
Automatic retrieval of pipe fittings for welding.
With up to 6 phases programmable welding function,can adapt to different pipe welding requirements.
Good doubling protection function.
Optimized design and SMT welding process,reduce the fault rate of whole machine.
Compact structural design,lightweight,suitable for non ground construction carrying.
Using high protection level design.
Package:
