Thermoplastic Fabrication Hdpe Extrusion Welding Gun 1600W

Thermoplastic Fabrication Hdpe Extrusion Welding Gun 1600W
Thermoplastic Fabrication Hdpe Extrusion Welding Gun 1600W Thermoplastic Fabrication Hdpe Extrusion Welding Gun 1600W

Large Image :  Thermoplastic Fabrication Hdpe Extrusion Welding Gun 1600W

Product Details:
Place of Origin: Hebei,China
Brand Name: MM-TECH
Certification: CE,ISO
Model Number: SWT-NS600A
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD1500-USD1800 per set
Packaging Details: Aluminum Alloy Box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per week
Detailed Product Description
Model: SWT-NS600A Voltage: 110V/220V
Frequency: 50/60Hz Power: 1600W
Warranty: 2 Years Color: Green
Hot Air Power: 800W Weight: 13kg
Highlight:

1600w hdpe extrusion welding gun

,

thermoplastic fabrication hdpe extrusion welding gun

,

1600w plastic extrusion welding gun

Extrusion Welding Machine Specification:



Voltage: 220V
Frequency: 50/60HZ
Power: 1600W Hot Air + 800W Hitachi Motor
Wind Temperature: 20-600℃
Heating Temperature When Extrudng: 200-380℃
Extruding Volume: 2 kg/h
Diametere of Welding Rod: Φ3.0mm-4.0mm
Weight: 13 kg
Usage: PVC Tarpaulin Welding Extruder
Wedling Thickness: 1-20mm



Extrusion Welding Machine Instruction:



Hand Held Plastic Extrusion Welder is used for welding PE, PP, PVC, PVDF, HDPE and so on.
Hand held Plastic Extrusion Welding Machines are used for plastic sheets, and bitumen

waterproofing and packaging materials with hot air for tanks and lining and agricultural

and environmental cover.
Welding machines for polypropylene and polyethylene pipes.
Hand held Plastic Extrusion Welding Machines are designed for water conservancy,

aquaculture,landfills,chemical mining,sewage treatment,roof construction, and other

waterproofing projects.



Extrusion Welding Machine Features:



1.Doule heating system:welding rod feed heating system and hot air heating system make sure

the best welding quality.

2.Digital display controller microcomputer chip contoller makes easy operation.

3.360 degree rotating welding head:the 360 degreerotating hot air welding nozzle can be applied

to defferent needs.

4.Motor cold start protection:extruding motor well shut down automatically if it has not reached

the preset melting temperature,which avoid lose caused by operating mistake.

5.Driving motor:HITACHI

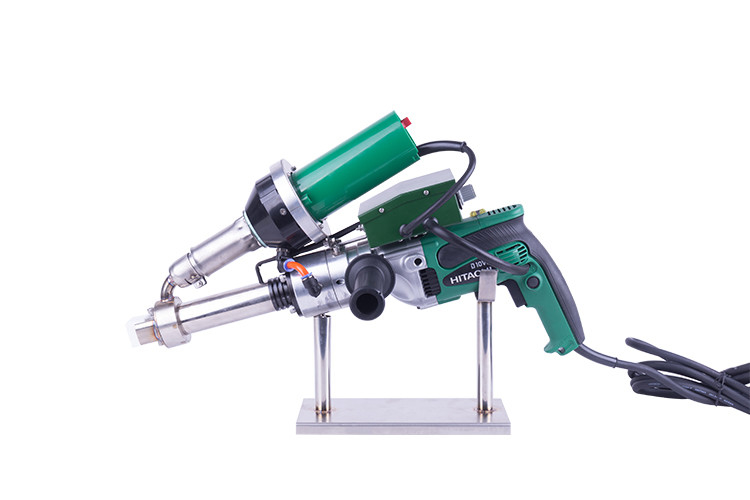

Thermoplastic Fabrication Hdpe Extrusion Welding Gun 1600W 0

Package:

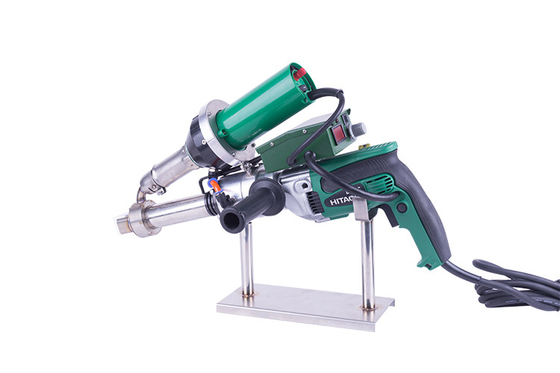

Thermoplastic Fabrication Hdpe Extrusion Welding Gun 1600W 1
