Pond Liner Hot Wedge Geomembrane Welding Machine With Digital Display

Large Image : Pond Liner Hot Wedge Geomembrane Welding Machine With Digital Display

Product Details:

Place of Origin:	Hebei,China
Brand Name:	MM-TECH
Certification:	CE,ISO
Model Number:	SWT-NS900D

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD2700-USD3200 per set
Packaging Details:	Aluminum Alloy Box
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 sets per week

Contact Now

Detailed Product Description

Product Name:	Geomembrane Welding Machine	Usage:	Tunnel, Tank, Pond Liner
Welding Speed:	0.5-5M Adjustable	Voltage:	220V, Customized
Temperture:	0-450 Degree	Material:	PP,HDPE,PVC
Welding Type:	Hot Wedge	Welding Range:	1.0-3.0mm
Digital Display:	Yes	Power:	1800W
Highlight:	pond liner geomembrane welding machine , hot wedge geomembrane welding machine , digital display pond liner welding machine

SWT - NS900D 3mm Hot Wedge Geomembrane Welding Machine With Digital Display

Geomembrane Welding Machine Description:

It adopts an advanced hot wedge structure. With its high power, high speed, and pressure, it welds 1.0-3.0mm thickness hot melting materials such as HDPE, LDPE, PVC, EVA, ECB, PP, and others. This machine is specially designed for water conservancy, aquaculture, landfills, chemical mining, sewage treatment, roof constructions, and other waterproofing projects.

Geomembrane Welding Machine Specification:

	Digital Display Hot Wedge Welder	Welding Speed	0.5M-10M/Min(Adjustable)
Voltage	220v (Customized Acceptable)	Thickness Welded	1.0-3.0mm(single layer)
Frequency	50/60Hz	Welding Temperature	0-450°C(Adjustable)
Power	1800W	Seam Strength	≥85%Welded Layer

Geomembrane Welding Machine Features:

Control System	Advanced intelligent digital control system
Drive System	High power and torque motor combined with double precise driving motion
Pressure Adjustment System	Advance "T" style jib design and pressure regulation structure
Pressure Roller	Special stainless steel pressure roller with a strong pressure force
Heating System	Powerful metal hot wedge and special heating system design

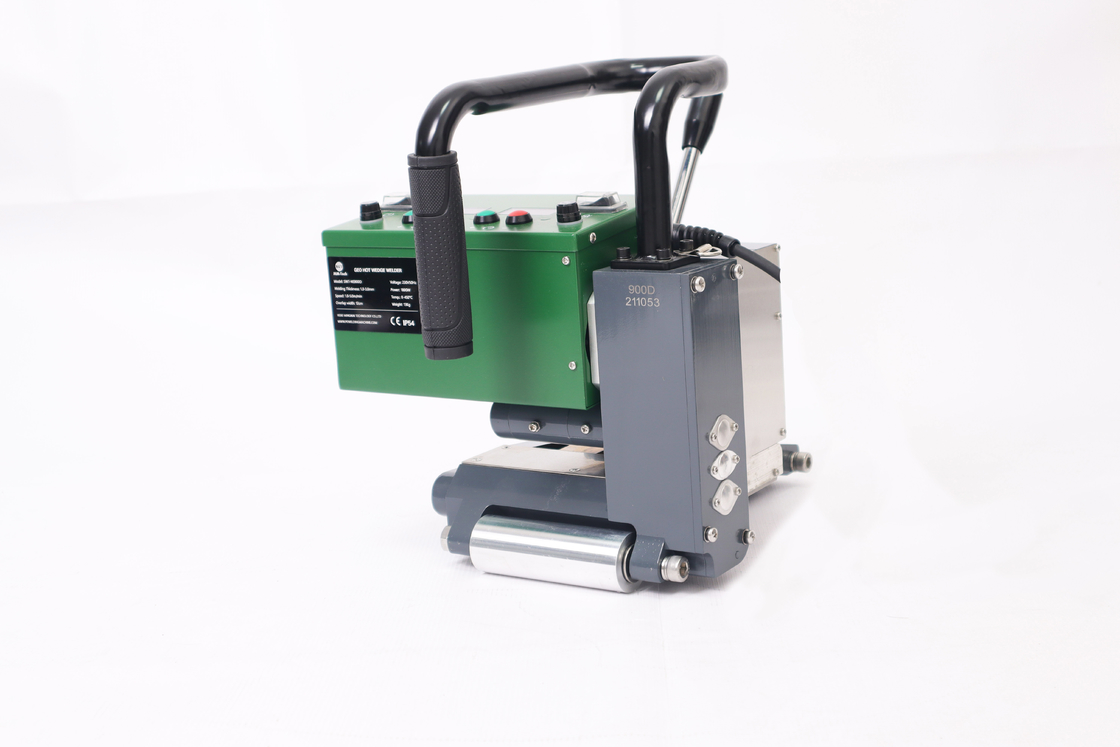

Pond Liner Hot Wedge Geomembrane Welding Machine With Digital Display 0

Package:

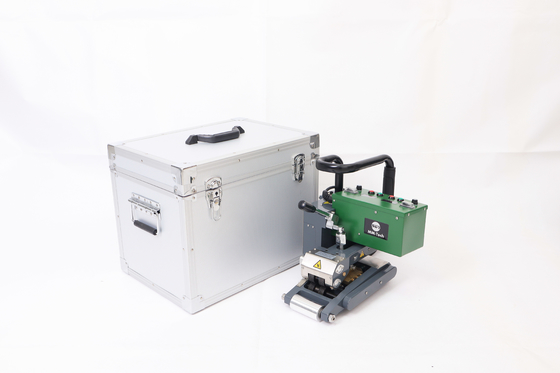

Pond Liner Hot Wedge Geomembrane Welding Machine With Digital Display 1

The whole machine includes:

1. SWT-NS900D geomembrane welding machine

2. 3 pcs heating tube

3. Wrenches

4. Screwdrivers

5. A operating manual
