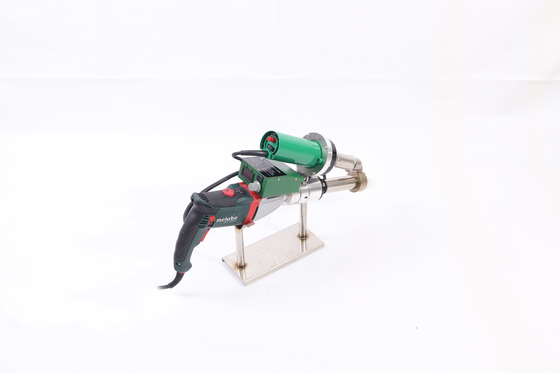

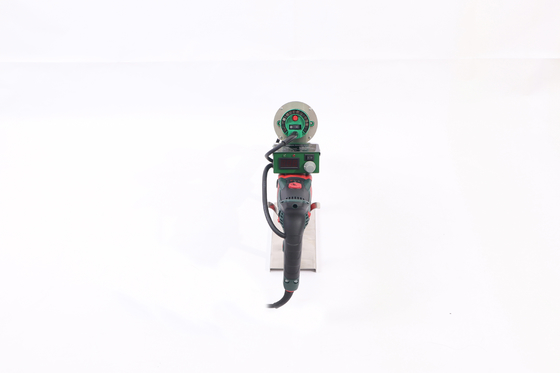

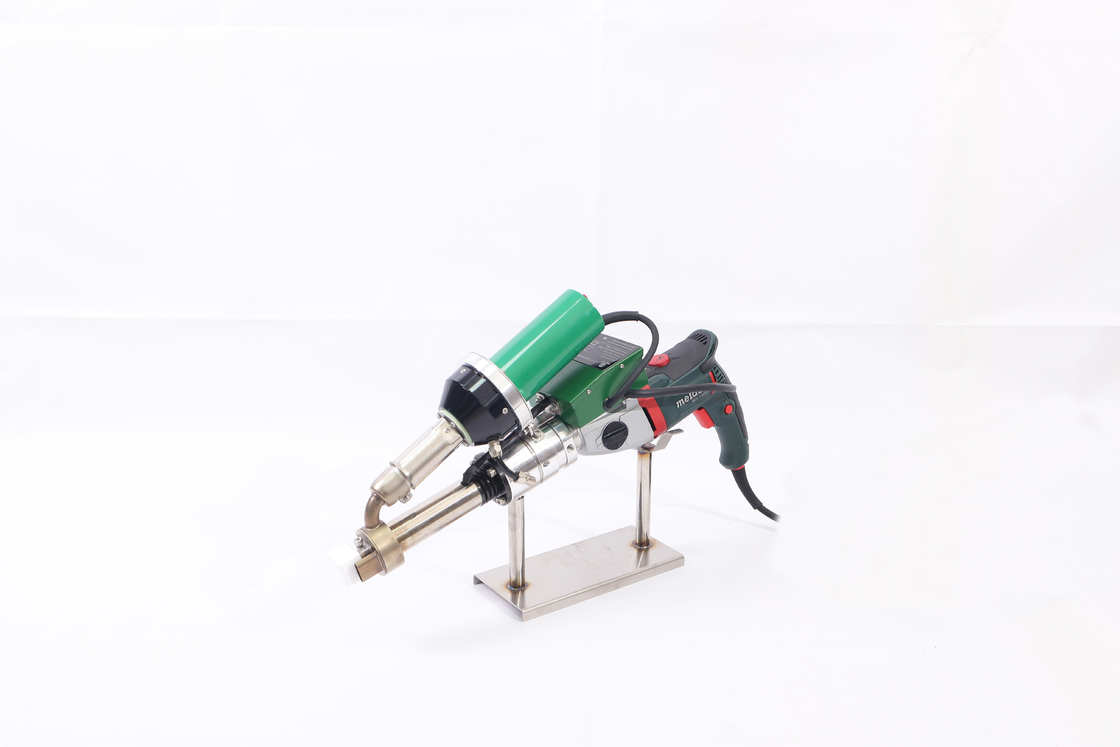

3mm 800w Hand Held Plastic Extruder For Sheet Geomembrane Pipe

SWT-NS610A 3mm Handheld Plastic Extruder For Sheet Geomembrane Pipe

Extrusion Welding Machine Instruction:

This extrusion welding machine is used for welding PE,PP,PVDF and so on.Plastic Extrusion Welder can use to making enviromental equipment, anticorrosive equipment, plating equipment, acid and alkali resistance equipment, carriage, plastic water tank, food tank.

Extrusion Welding Machine Specification:

Extrusion Welding Machine Features:

1. Have a digital display controller to show welding rod current temperature.

2. Two different angle welding nozzles with anti-scalding design- air outlet on the top and air outlet on the left.

3. The motor cold start protection to protect the extruding auger and extend its lifetime.

4. Independent heating systems of welding rod and parent materials-800w heater for welding rod and 3400w air blower for parent materials.

5. 800w Japan Hitachi extruding auger,3400w CE approved hot air blower and 800w welding rod heating system.

Package:

Aluminum box + carton box

1pc extra 220v/1550w heating element

3pcs power fuse

2pcs screwdrivers

3pcs wrenches

1pcs aluminumcase

1pcs English Manual

Tips:

a. Preheating 3-5 mins and make previous welding flux soften, then using tools to pick out the softened flux before start work.

b. This Hand Extruder is welded with PE/PP/HDPE welding rod Φ3.0-4.5mm, the welding speed is 1.8-3.6Kg/h.
c. Any customized demands, you can ask us directly. We have professional technicians team.
