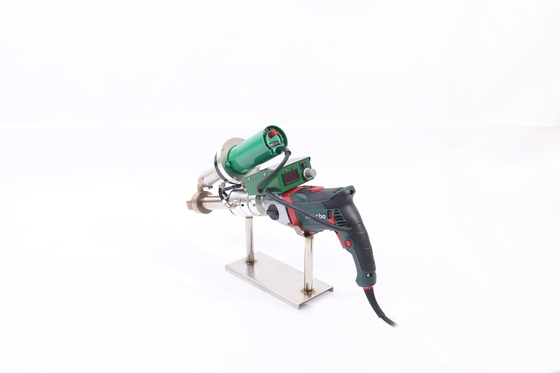

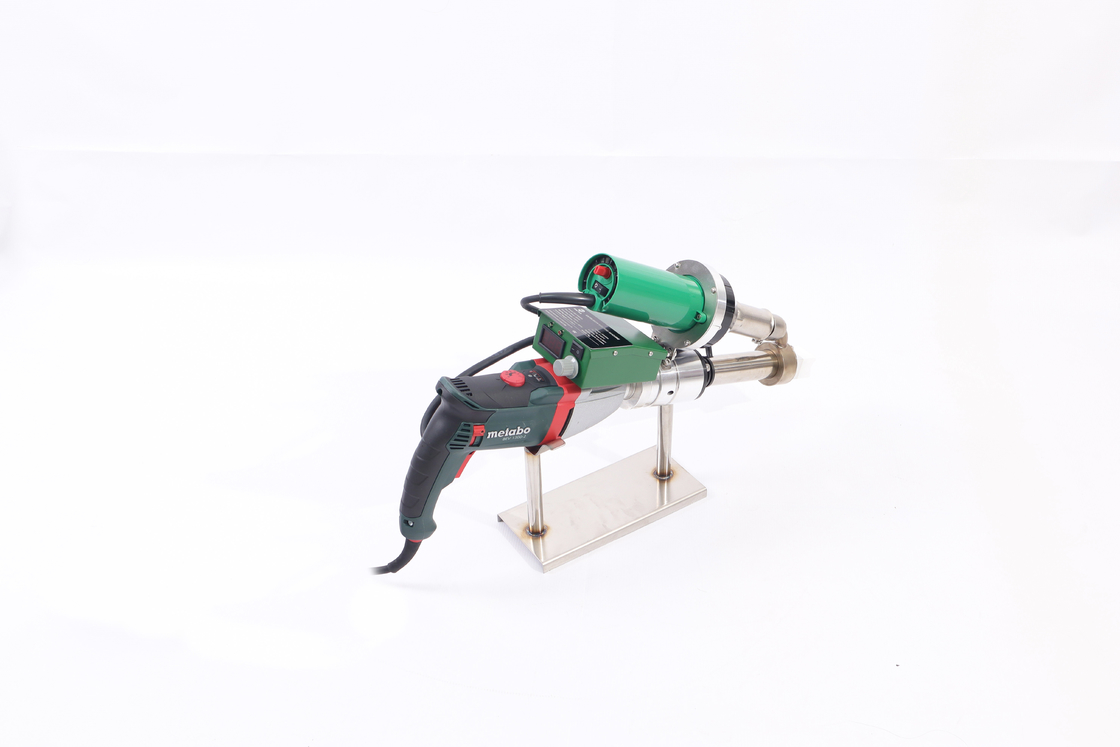

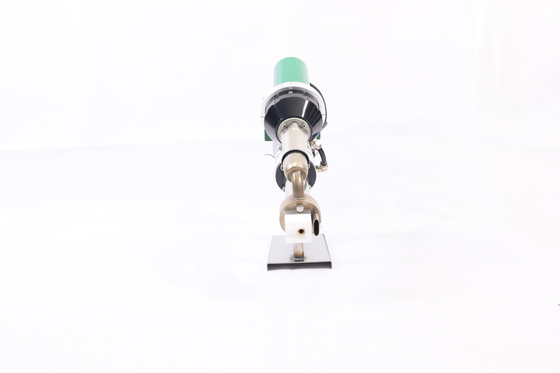

5mm Plastic Hdpe 1600w Extrusion Welding Machine

SWT-NS610A 5mm Plastic Extrude Welding Welder Hdpe Extrusionhand Extruder

Extrusion Welding Machine Instruction:

This extrusion welding machine is with two major components, preheating raw materials hot air part and welding rods extrusion part. Hot air part with an adjustable temperature controller to heat automatically, and extrusion part with the independent thermostatic heating control system to send hot air independently, It is easy to adjust extrusion speed and use screw extruding for powerful extrusion pressure.

Extrusion Welding Machine Specification:

Extrusion Welding Machine Advantage:

1. Double heating system: welding rod feed heating system and hot air heating system make sure the best welding quality.

2. Digital display controller microcomputer chip controller makes easy operation.

3.360-degree rotating welding head: the 360-degree rotating hot air welding nozzle can be applied to different needs.

4. Motor cold start protection: extruding motor well shut down automatically if it has not reached the preset melting temperature, which avoids loss caused by operating mistake.

5. Driving Motor: METABO

Package:

Aluminum box + carton box

1pc extra 220v/1550w heating element

3pcs power fuse

2pcs screwdrivers

3pcs wrenches

1pcs aluminum case

1pcs English Manual

Tips:

a. Preheating 3-5 mins and make previous welding flux soften, then using tools to pick out the softened flux before start work.

b. This Hand Extruder is welded with PE/PP/HDPE welding rod Φ3.0-4.5mm, the welding speed is 1.8-3.6Kg/h.
c. Any customized demands, you can ask us directly. We have professional technicians team.
