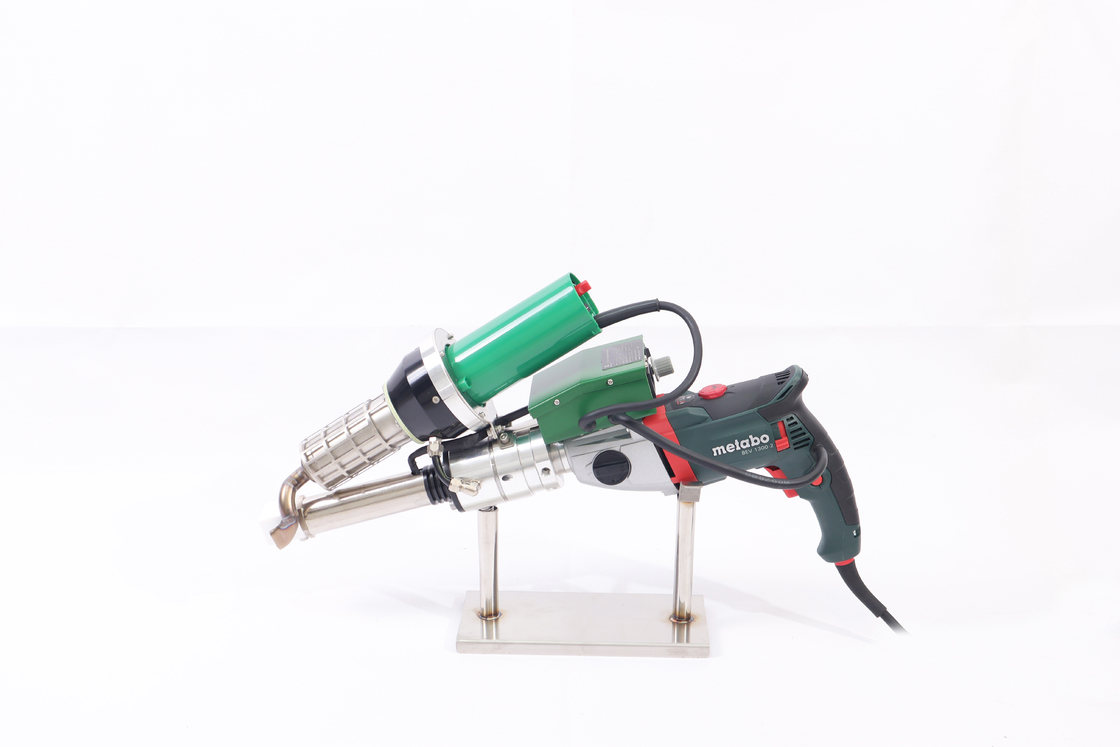

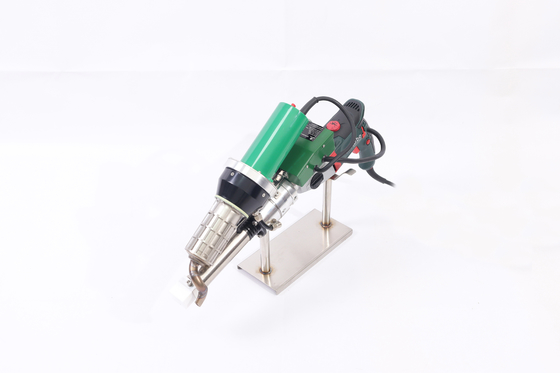

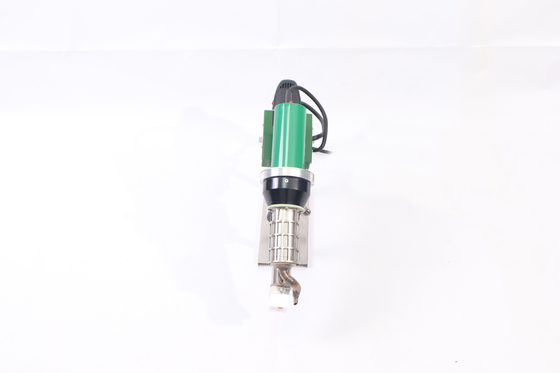

SWT-NS610B PP PE Extrusion Welding Machine For Welding Water Tank
Extrusion Welder Machine :
This Extrusion Welding machine has 220v power supply uniformly to weld plastic sheets,tube and other thermoplastic products,especially for both ends of large diameter hollow wall pipe,producing pipe and repairing pipe and so on.
Available welding materials: thermoplastic HDPE, PP, PVDF, especially PE .Do not apply in a conductive plastic (PE-EL),
or cause the machine to produce a conductive short-circuit.
Extrusion Welder Machine Specification:
| Voltage: |
220V |
| Frequency: |
50/60HZ |
| Power: |
3400 W hot air + 1350 W motor |
| Motor: |
Metabo |
| Heating Temperature When Extrudng: |
200-380℃ |
| Extruding Volume: |
2.5kg/h |
| Diametere of Welding Rod: |
Φ3.0mm, 4.0mm, 5.0mm |
| Weight: |
7 kg |
| Usage: |
HDPE PP Pipe |
| Welding thickness: |
8-44mm |
Extrusion Welder Machine Advantages:
1. Independently developed intelligent protection function, so that more assured!
2. Automatic Temperature Compensation Function
3. Cold Start Protection of drive motor
4. Fault Alarm display
Package:
Precaution:
1. Prohibited the extrusion nozzle facing the person or object of any likely to be scalded when
devices work.
2) Stop using the equipment, or start using must ensure that the head nozzle is not covered with
plastic, and if so may result in poor extrusion , resulting in a backflow or injection, reflux causes the
damage, spray may cause burns.
3) When the device is working, any metal part is proibited to touch, otherwise there will be danger
of burns.
4) The device is turned on, there must be supervised, or may cause equipment damage and cause
a fire hazard.
