Fusion Hydraulic Butt Welder For 90mm Hdpe Pipe Welding

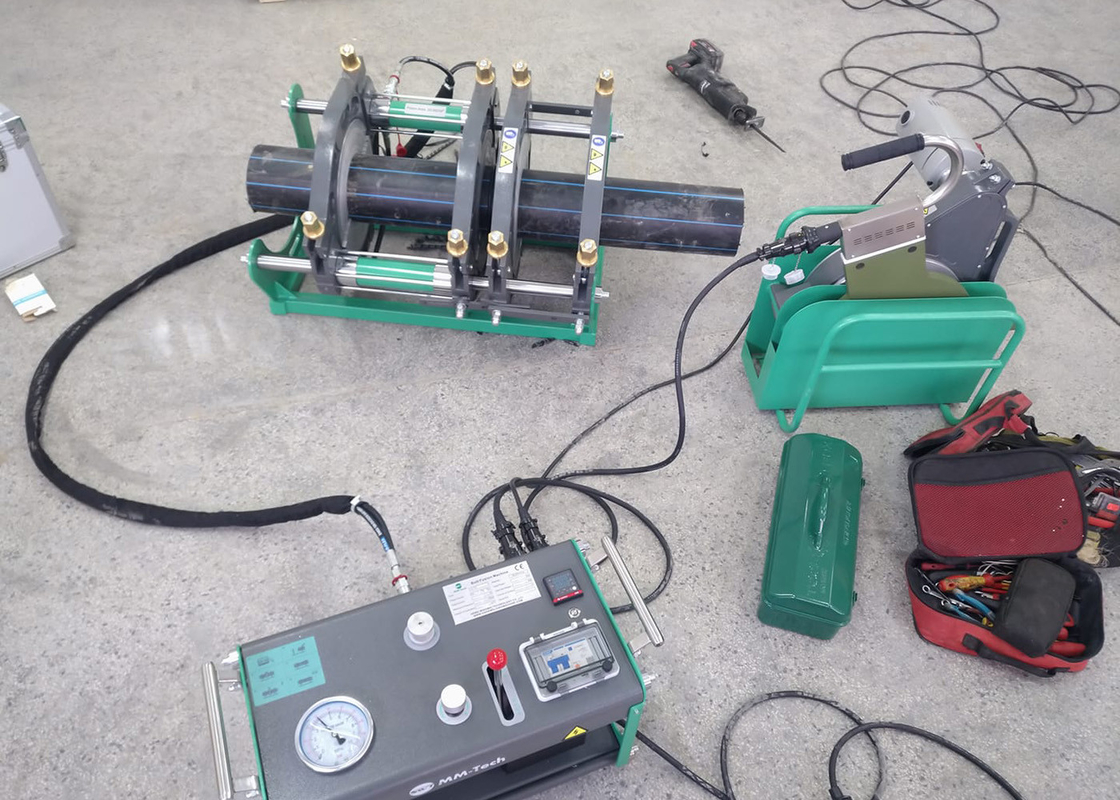

Large Image : Fusion Hydraulic Butt Welder For 90mm Hdpe Pipe Welding

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-V355/90H

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$1,950.00-3,500.00/SET
Packaging Details:	3 Plywood Cases
Delivery Time:	Within 7 days
Payment Terms:	BBVA, BCP, SANTANDER, BOLETO, WESTERN UNION, PAYPAL, T/T
Supply Ability:	846 sets per week

Contact Now

Detailed Product Description

Product Name:	Butt Fusion Welder	Weldable Pipe Size:	90-355mm
Voltage:	220V	Frequency:	50Hz
Rated Power:	6.25KW	Piston Area:	20.02cm²
G.W.:	256kg	USB Charing Port:	Support
PTFE-Coated Heating Plate:	Yes	Data Logger:	On Customers Request
Highlight:	fusion hydraulic butt welder , hdpe pipe welding hydraulic butt welder , 90mm butt fusion welding machine

Hydraulic Butt Fusion Welder HDPE Pipe Welding Machine Working Principle

Butt Fusion is a process of joining two HDPE pipes/ fitting components which involves simultaneous heating of the both ends of pipe until a molten state is attained on each contact surface.

Other details:

HDPE Pipe Butt Fusion Welding Machines 20 mm to 1600 mm
We are engaged in supplying latest technology HDPE Pipe Jointing Machine
This Butt Fusion machine is semi-automatically operated

Hydraulic Butt Fusion Welder HDPE Pipe Welding Machine Technical Data

Product name	Butt Fusion Welder
Weldable Pipe Size	90-355mm
Voltage	220V
Frequency	50Hz
Rated power	6.25KW
Piston Area	20.02cm²
G.W.	256kg
Quality	Excellent
Customer Satisfaction	5 stars
CE	Available

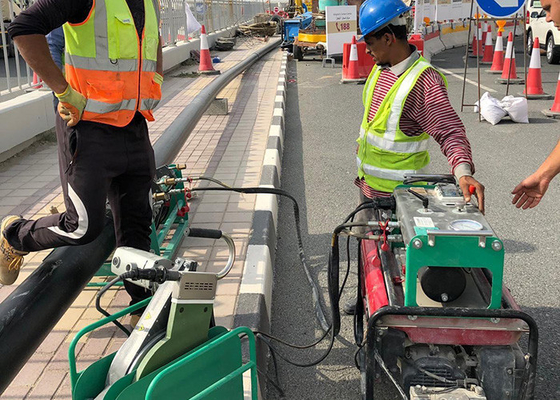

Hydraulic Butt Fusion Welder HDPE Pipe Welding Machine Application

Fusion Hydraulic Butt Welder For 90mm Hdpe Pipe Welding 0
