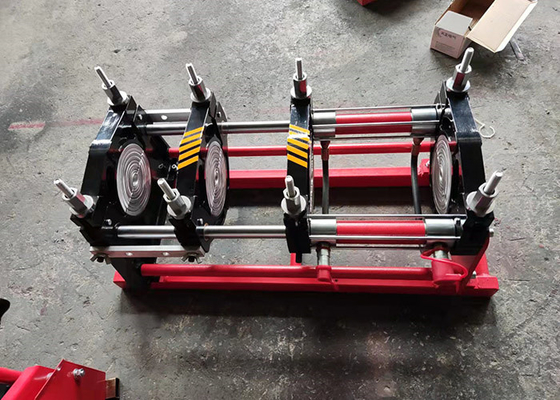

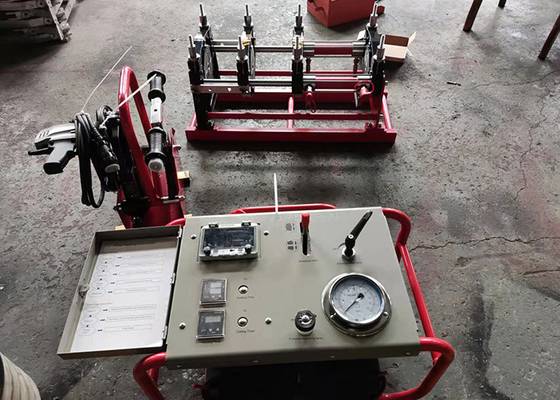

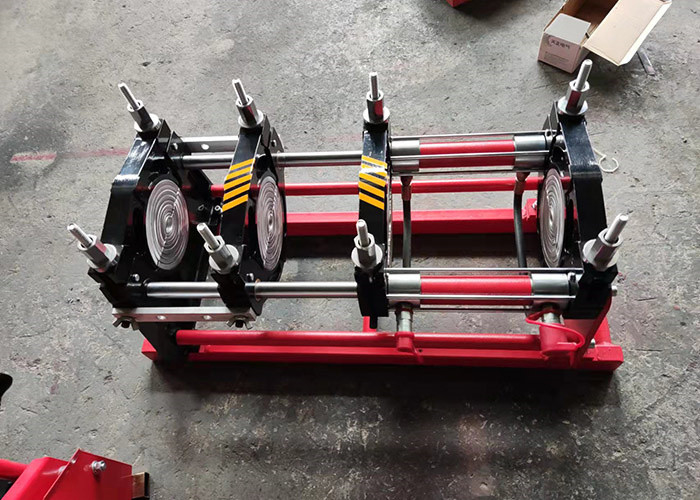

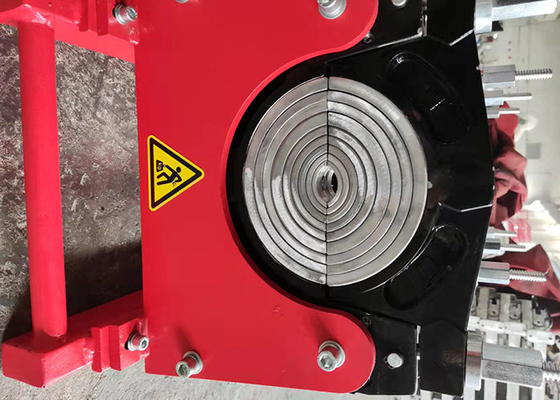

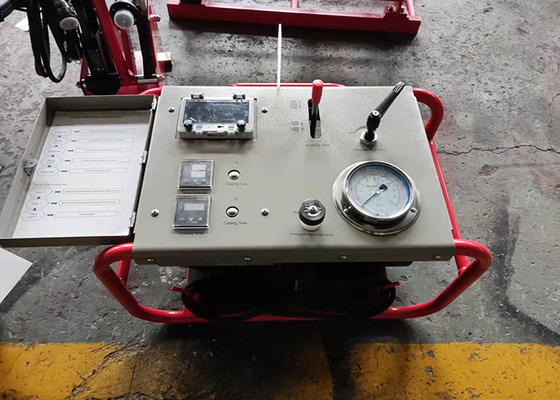

32-160mm Hdpe Pipe Butt Fusion Welding Machine 220v

Large Image : 32-160mm Hdpe Pipe Butt Fusion Welding Machine 220v

Product Details:

Place of Origin:	CHINA
Brand Name:	MM-Tech
Certification:	CE
Model Number:	SWT-V160/32H

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$1,980-2,160/set
Packaging Details:	3 Plywood Cases
Delivery Time:	Within 7 days
Payment Terms:	BBVA, BCP, SANTANDER, BOLETO, WESTERN UNION, PAYPAL, T/T
Supply Ability:	1,688 sets per month

Contact Now

Detailed Product Description

Product:	HDPE Pipe Welding Machine	Model:	SWT-V160/32H
Welding Range:	32-160mm	Voltage:	220V
Frequency:	50Hz	Rated Power:	2.5KW
Piston Area:	6.27cm²	Temperature Controller:	Yes
Timer:	Yes	G.W.:	124kg
Highlight:	hdpe pipe butt fusion welding machine jointing , 160mm hdpe pipe butt fusion welding machine , 32mm hdpe butt fusion jointing machine

32-160MM HDPE Pipe Butt Fusion Welding Machine Work Procedure

Insert two pipes ends on both side of the machine clamps, protrude approx. 3-5 cm. from each shell side,
clamping and adjust the pipe or piping part, the surfaces to be welded should be parallel to each other.
• Adjust the alignment of pipe line by tightening or losing bronze nuts on the top aluminum clamps.
• Secure longitudinal movement of the parts to be welded by taking appropriate measures.
• Clean outside and inside pipe surface.

32-160MM HDPE Pipe Butt Fusion Welding Machine Technical Data

Product	HDPE Pipe Welding Machine
Model	SWT-V160/32H
Welding range	32-160mm
Voltage	220V
Frequency	50Hz
Rated power	2.5KW
Piston Area	6.27cm²
Temperature Controller	Yes
Timer	Yes
G.W.	124kg

32-160MM HDPE Pipe Butt Fusion Welding Machine Application

32-160mm Hdpe Pipe Butt Fusion Welding Machine 220v 0
