315-630mm Hdpe Pipe Butt Fusion Jointing Machine 3P Power

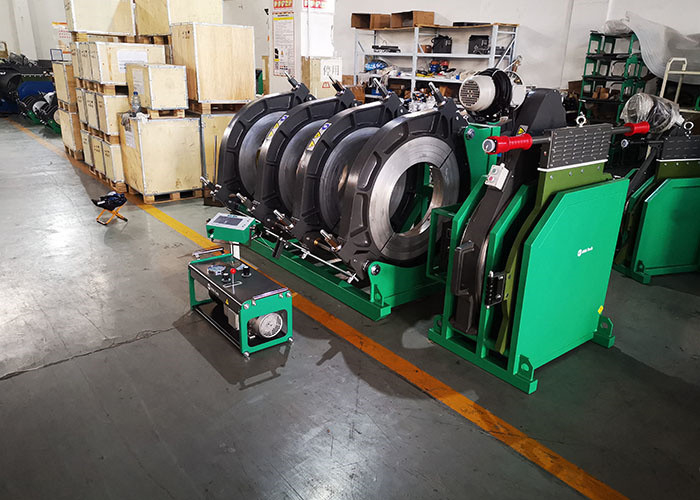

Large Image : 315-630mm Hdpe Pipe Butt Fusion Jointing Machine 3P Power

Product Details:

Place of Origin:	CHINA
Brand Name:	MM-Tech
Certification:	CE
Model Number:	SWT-V630/315H

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$6,600-7,150/set
Packaging Details:	3 Plywood Cases
Delivery Time:	Within 7 days
Payment Terms:	BBVA, BCP, SANTANDER, BOLETO, WESTERN UNION, PAYPAL, T/T
Supply Ability:	1,688 sets per month

Contact Now

Detailed Product Description

Product:	HDPE Pipe Butt Welding Machine	Manufacturer:	MM-Tech
Diameters To Joint:	315-630mm	Power Supply:	380V, 50Hz, 3P
Rated Power:	12.3KW	Piston Area:	23.06cm²
Packing Weight:	729kg	Temperature Controller & Timer:	Support
Support Roller:	Optional	Crane Hoist:	Optional
Highlight:	custom hdpe pipe butt fusion jointing machine , 630mm hdpe pipe butt fusion jointing machine , 315mm hdpe pipe butt joint machine

315-630MM HDPE Pipe Butt Welding Machine Product Introduction

The Hydraulic butt fusion welding machine, mainly consists of 3 major parts: Carriage (also called frame or base), planing tool (also called trimmer or facer) and heater, hydraulic station with control device. Carriage for precise face joint and steady pipe clamping, planing tool and heater responsible for accurate trimming and heating, hydraulic station provides actuation and control.

315-630MM HDPE Pipe Butt Welding Machine Technical Data

Product	HDPE Pipe Butt Welding Machine	Piston Area	23.06cm²
Manufacturer	MM-Tech	Packing weight	729kg
Diameters to joint	315-630mm	Temperature Controller & Timer	Support
Power supply	380V, 50Hz, 3P	Support Roller	Optional
Rated power	12.3KW	Crane hoist	Optional

315-630MM HDPE Pipe Butt Welding Machine Application

315-630mm Hdpe Pipe Butt Fusion Jointing Machine 3P Power 0
