355mm Pipe Hdpe Butt Fusion Welding Machine 6.25kw

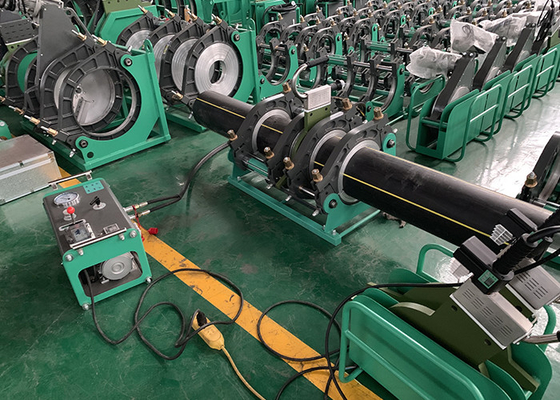

Large Image : 355mm Pipe Hdpe Butt Fusion Welding Machine 6.25kw

Product Details:

Place of Origin:	CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-V355/90H

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$3,500.00 - US$3,700.00/set
Packaging Details:	3 Plywood Cases
Delivery Time:	Within 7 days
Payment Terms:	T/T, Western Union, PayPal, Credit Card
Supply Ability:	500 sets per month

Contact Now

Detailed Product Description

Product Name:	HDPE Pipe Butt Fusion Welding Machine	Weldable Pipe Size:	90mm - 355mm
Voltage:	220V	Frequency:	50Hz
Rated Power:	6.25KW	Piston Area:	20.02cm²
G.W.:	256kg	Quality Warranty Period:	24 Months
Country Of Origin:	CHINA	Pipe Materials:	PE, PP, PPR
Highlight:	355mm hdpe butt fusion welding machine , 6.25kw hdpe butt fusion welding machine , pe butt fusion welding machine

HDPE Pipe Butt Fusion Welding Machine Description

Butt fusion is a thermofusion process which involves the simultaneous heating of the ends of two pipe/fitting components which are to be joined, until a molten state is attained on each contact surface. The two surfaces are then brought together under controlled pressure for a specific cooling time and a homogenous fusion joint is formed. The resultant joint is fully resistant to end loads and has comparable performance under pressure to the pipe itself.

HDPE Pipe Butt Fusion Welding Machine Technical Data

Product name	HDPE Pipe Butt Fusion Welding Machine
Weldable Pipe Size	90mm - 355mm
Voltage	220V
Frequency	50Hz
Rated power	6.25KW
Piston Area	20.02cm²
G.W.	256kg
Quality Warranty Period	24 months
Country of Origin	CHINA
Pipe Materials	PE, PP, PPR

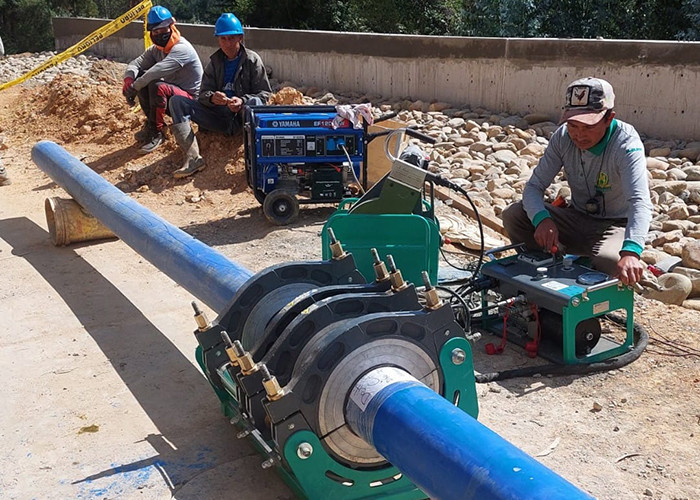

HDPE Pipe Butt Fusion Welding Machine Application

355mm Pipe Hdpe Butt Fusion Welding Machine 6.25kw 0
