500mm Hdpe Pipe Butt Fusion Welding Machine CE

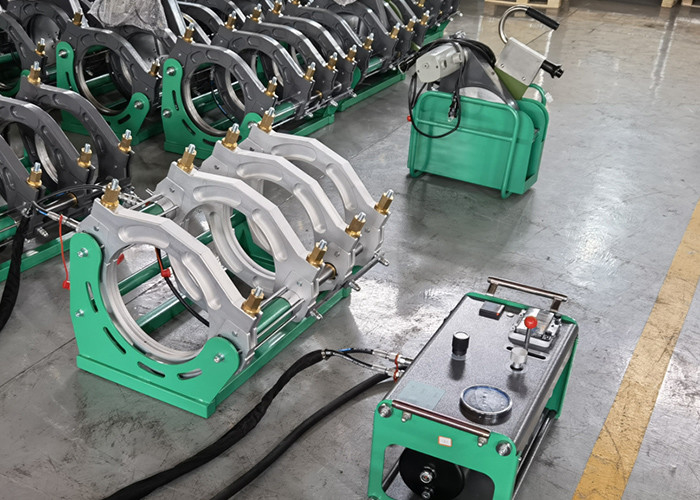

Large Image : 500mm Hdpe Pipe Butt Fusion Welding Machine CE

Product Details:

Place of Origin:	CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-V500/280H

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$2,310.00 - US$4,310.00/set
Packaging Details:	3 Plywood Cases
Delivery Time:	Within 7 days
Payment Terms:	T/T, Western Union, PayPal, Credit Card
Supply Ability:	500 sets per month

Contact Now

Detailed Product Description

Product Name:	HDPE Pipe Butt Fusion Welding Machine	Model:	SWT-V500/200H
Welding Range:	200mm - 500mm	Voltage:	380V
Frequency:	50Hz	Rated Power:	10.3KW
Piston Area:	23.06cm²	Gross Weight:	520kg
Electrical Crane & Stub End Device:	Optional	Recommended Generator:	16KW
Highlight:	500mm hdpe pipe butt fusion welding machine , ce hdpe pipe butt fusion welding machine , 500mm butt fusion welding machine

HDPE Pipe Butt Fusion Welding Machine Working Principle

Butt fusion involves the simultaneous heating of the ends of two pipe/fitting components which are to be joined, until a molten state is attained on each contact surface. The two surfaces are then brought together under controlled pressure for a specific cooling time and a homogeneous fusion joint is formed.

HDPE Pipe Butt Fusion Welding Machine Technical Data

Product name	HDPE Pipe Butt Fusion Welding Machine
Model	SWT-V500/200H
Welding range	200mm - 500mm
Voltage	380V
Frequency	50Hz
Rated power	10.3KW
Piston Area	23.06cm²
Gross weight	520kg
Electrical Crane & Stub end device	Optional
Recommended Generator	16KW

HDPE Pipe Butt Fusion Welding Machine Application

500mm Hdpe Pipe Butt Fusion Welding Machine CE 0
HDPE Pipe Butt Fusion Welding Machine Application
