Polypropylene Hdpe Pipe Hydraulic Butt Welding Machine With Timer

Large Image : Polypropylene Hdpe Pipe Hydraulic Butt Welding Machine With Timer

Product Details:

Place of Origin:	CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-V315/90H

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$3,000.00 - 4,000.00/SET

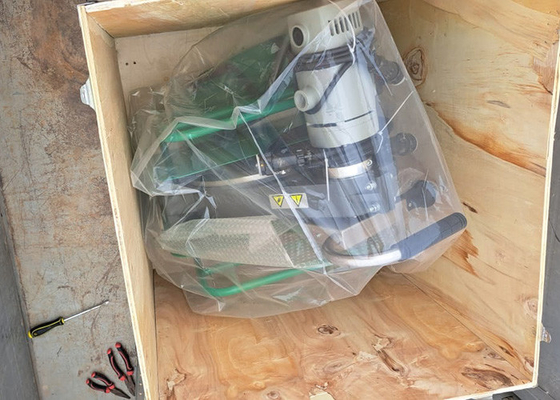

Packaging Details:	3 Plywood Cases
Delivery Time:	Within 7 days
Payment Terms:	BBVA, BCP, SANTANDER, BOLETO, WESTERN UNION, PAYPAL, T/T
Supply Ability:	500 sets per month

Contact Now

Detailed Product Description

Item:	HDPE Pipe Buttt Welding Machine	Pipe Size:	90mm - 315mm
Power Supply:	220V, 50Hz	Rated Power:	5.25KW
Piston Area:	20.02cm²	G.W.(kg):	242kg
Temperature Controller:	Support	Timer:	Support
Data Logger:	Optional	Materials:	HDPE, PP
Highlight:	polypropylene hydraulic butt welding machine , timer hydraulic butt welding machine , polypropylene hydraulic butt fusion welding machine

HDPE Pipe Buttt Welding Machine Control Unit

Electric and hydraulic control unit; It transmits the electricity required for the operation of the machine to the heater and razor and the hydraulic pressure to the main machine.

Control unit is operated by hand control. There are four buttons and a switch on the hand control. The buttons move the movable clamps back and forth. The switch turns the shaver on.

HDPE Pipe Buttt Welding Machine Working Method

Generally, the electrical type required for the machine to work is 380 V. However, this situation varies depending on the dimensions of the machine. As a matter of fact, there are different product designs in accordance with the usage area and structure. In this context, along with the product dimensions, it is possible to evaluate it over 220 V, which is optional. However, in general, it offers a very satisfactory working effect in terms of performance.

Technical Data

Item	HDPE Pipe Buttt Welding Machine
Pipe size	90mm - 315mm
Power supply	220V, 50Hz
Rated power	5.25KW

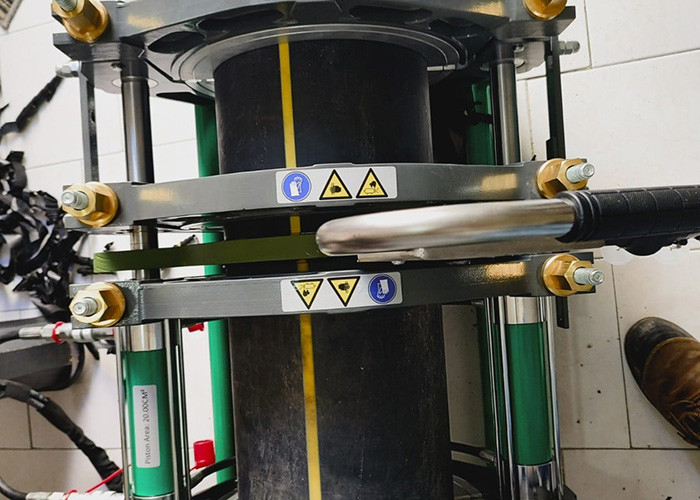

Piston Area	20.02cm²
G.W.(kg)	242kg
Temperature Controller	Support
Timer	Support
Data Logger	Optional
Materials	HDPE, PP
