Polyfusion Tube Hydraulic Butt Fusion Welding Machine 6.25kw

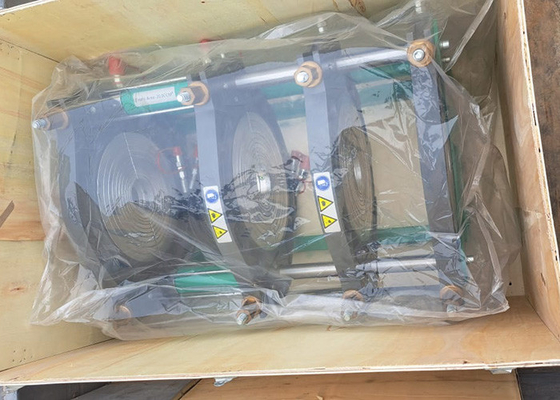

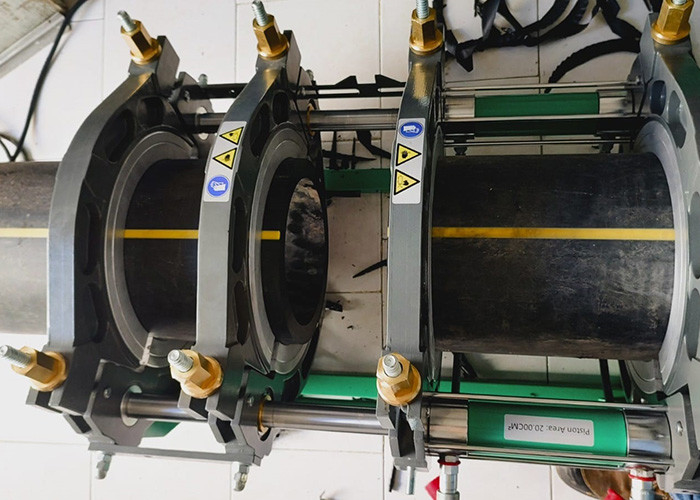

Large Image : Polyfusion Tube Hydraulic Butt Fusion Welding Machine 6.25kw

Product Details:

Place of Origin:	CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-V14H

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$3,700.00 - 5,000.00/SET
Packaging Details:	3 Plywood Cases
Delivery Time:	Within 7 days
Payment Terms:	BBVA, BCP, SANTANDER, BOLETO, WESTERN UNION, PAYPAL, T/T
Supply Ability:	500 sets per month

Contact Now

Detailed Product Description

Item:	Polyfusion Tube Welding Machinee	Pipe Size:	3'' - 14''
Voltage:	220V	Frequency:	50Hz
Rated Power:	6.25KW	Piston Area:	20.02cm²
Total Packing Weight:	256kg	Temperature Diaplay:	Available
Support Roller:	On Customers Request	Recommended Generator:	10KW
Highlight:	polyfusion hydraulic butt fusion welding machine , 6.25kw hydraulic butt fusion welding machine , 6.25kw hdpe hydraulic welding machine

Butt Welding Machine Types

These machines vary in size between W160 (d.40-160) -W2800 (d.1800-2800). Butt welding machines start from W160 Plastic Pipe Hydraulic Butt Welding Machine and continue until W2800 plastic pipe hydraulic butt welding machine.

W160 Plastic Pipe Hydraulic Butt Machine’s hydraulic power is 220 V – 0.55 kW, while the hydraulic power of W2800 plastic pipe hydraulic butt welding machine is 380 V – 4 kW.

Technical Specifications of Butt Welding Machine

Total electricity consumption, working pressure and required generator power vary depending on the machine type. DVS 2207-1, DVS2207-11, ISO 21307 provides powerful, easy and rapid resource reporting with the shortest operational setup in accordance with international standards. Butt welding machines provide ease of usage thanks to their light structure. The maximum operating pressure of these machines is designed as 250 Bar. It is suitable for operation at the ambient temperature of -10 C ° ~ + 40 C °.

Technical Data

Product name	Polyfusion Tube Welding Machine
Pipe Size	3'' - 14''
Voltage	220V
Frequency	50Hz
Rated power	6.25KW
Piston Area	20.02cm²
Total packing weight	256kg
Temperature Diaplay	Available
Support Roller	On Customers Request
Recommended Generator	10KW

Application

Polyfusion Tube Hydraulic Butt Fusion Welding Machine 6.25kw 0
