3'' - 14'' Hdpe Tube Hydraulic Butt Fusion Welding Machine 220V

Large Image : 3'' - 14'' Hdpe Tube Hydraulic Butt Fusion Welding Machine 220V

Product Details:

Place of Origin:	CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-V14H

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$3,700.00 - 5,000.00/SET
Packaging Details:	3 Plywood Cases
Delivery Time:	Within 7 days
Payment Terms:	BBVA, BCP, SANTANDER, BOLETO, WESTERN UNION, PAYPAL, T/T
Supply Ability:	500 sets per month

Contact Now

Detailed Product Description

Product Name:	HDPE Tube Butt Welding Machine	Pipe Size:	3'' - 14''
Voltage:	220V	Frequency:	50Hz
Rated Power:	6.25KW	Piston Area:	20.02cm²
Packing Weight:	256kg	CE:	Available
Crane Hoist:	On Customers Request	Materials:	HDPE, PP
Highlight:	3" hydraulic butt fusion welding machine , hdpe hydraulic butt fusion welding machine , 14" hdpe hydraulic welding machine

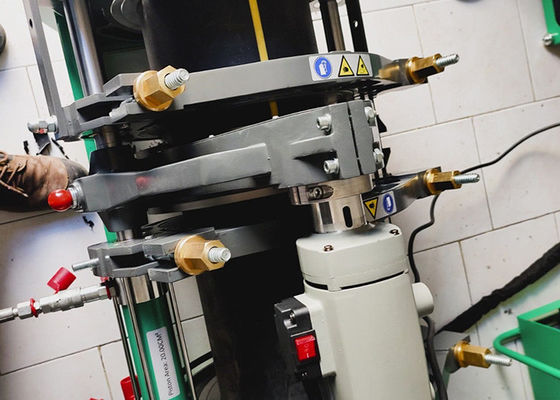

Butt Welding Machine Body

It supports the plastic pipes to be welded with two movable and two fixed clamps on it, and it provides fixing and centring.

The hydraulic pressure force is applied to the system.

With two pistons on the carrier shaft, this force directs the movable clamps back and forth and provides the movement required for the welding process to take place.

Butt Welding Machine Trimmer

It is a butt machine element that cleans the frontal area of the pipes fixed and centred on the main body with the two rotary blades and parallel pipe surfaces ready for heating.

The rotary motion of the trimmer is provided by the motor and reducer group on it.

Technical Data

Product name	HDPE Tube Butt Welding Machine
Pipe size	3'' - 14''
Voltage	220V
Frequency	50Hz
Rated power	6.25KW
Piston Area	20.02cm²
Packing weight	256kg
CE	Available
Crane Hoist	On Customers Request
Materials	HDPE, PP

Application
