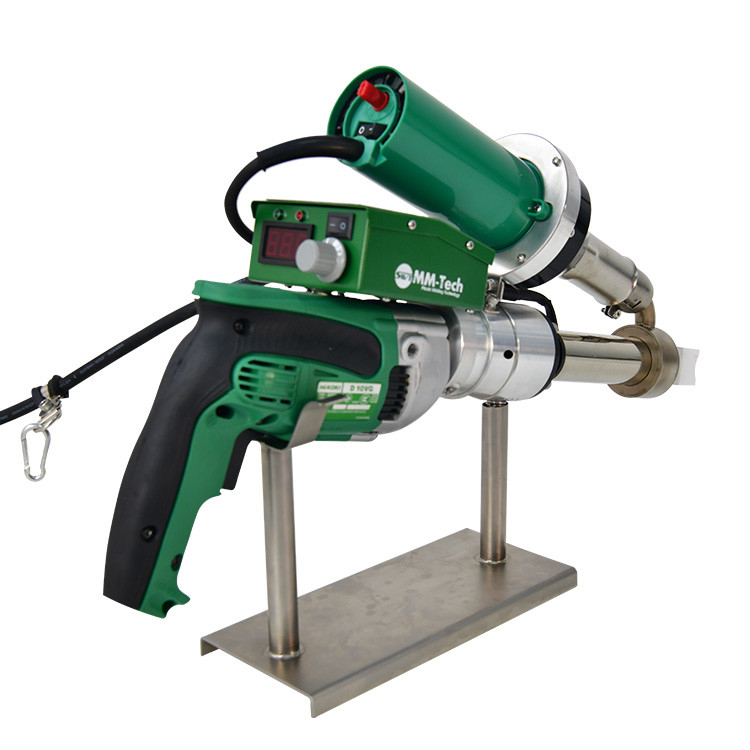

Plastic Welding SWT-NS600AHot Air Hand Extruder For Polypropylene Pipe
Extrusion Welding Machine Instruction:
Hand Held Plastic Extrusion Welder is used for welding PE, PP, PVC, PVDF, HDPE and so on.
Hand held Plastic Extrusion Welding Machines are used for plastic sheets, and bitumen waterproofing and packaging materials with hot air for tanks and lining and agricultural and environmental cover.
Welding machines for polypropylene and polyethylene pipes.
Hand held Plastic Extrusion Welding Machines are designed for water conservancy,aquaculture,landfills,chemical mining,sewage treatment,roof construction, and other waterproofing projects.
Extrusion Welding Machine Specification:
| Voltage: |
220V |
| Frequency: |
50/60HZ |
| Power: |
1600W Hot Air + 800W Hitachi Motor |
| Wind Temperature: |
20-600℃ |
| Heating Temperature When Extrudng: |
200-380℃ |
| Extruding Volume: |
2 kg/h |
| Diametere of Welding Rod: |
Φ3.0mm-4.0mm |
| Weight: |
13 kg |
| Usage: |
PVC Tarpaulin Welding Extruder |
| Wedling Thickness: |
1-20mm |
Extrusion Welding Machine Features:
1.Doule heating system:welding rod feed heating system and hot air heating system make sure
the best welding quality.
2.Digital display controller microcomputer chip contoller makes easy operation.
3.360 degree rotating welding head:the 360 degreerotating hot air welding nozzle can be applied
to defferent needs.
4.Motor cold start protection:extruding motor well shut down automatically if it has not reached
the preset melting temperature,which avoid lose caused by operating mistake.
5.Driving motor:HITACHI
Package:
After-Sales Service:
We always provide high quality products and workable price for every clients and have
won the trust, enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under
normal operating, we provide them for free.
