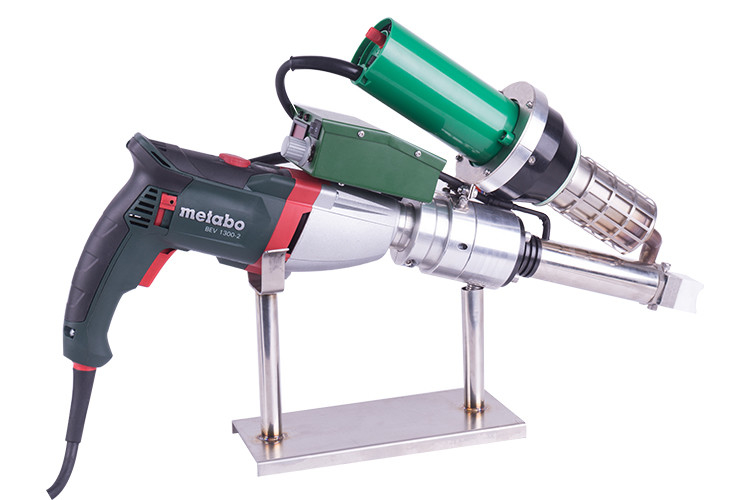

8-40mm PP PE Plastic Hand Extrusion Welder 3400W 3/4mm Welding Rod

Large Image : 8-40mm PP PE Plastic Hand Extrusion Welder 3400W 3/4mm Welding Rod

Product Details:

Place of Origin:	Hebei,China
Brand Name:	MM-TECH
Certification:	CE,ISO
Model Number:	SWT-NS610B

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD2000-USD2300 per set
Packaging Details:	Aluminum Alloy Box
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 sets per week

Contact Now

Detailed Product Description

Product Name:	Extrusion Welding Machine	Voltage:	230V 50/60HZ
Plastic Processed:	PE,PP,HDPE	Welding Thickness:	8-40mm
Welding Rod:	3/4mm (5mm Can Be Customized)	Driving Motor:	Metabo
Welding Shoe:	V Tape And Flat Tape	Extruding Volume:	2.5 KGS/Hour
Certification:	CE ISO	Application:	Tank, Liner, Sheet
Highlight:	8-40mm Plastic Hand Extrusion Welder , 3400W Plastic Hand Extrusion Welder , 3/4mm Plastic Hand Extrusion Welder

SWT-NS610B HDPE Plastic Welding Machine Extruder Hot Air Welding Machine

Extrusion Welder Machine :

This Extrusion Welding machine uses 1300w electric drill imported from Germany Metabo as the extrusion motor, with high power, low resistance and strong protection. And adopting dual heating system can independently control the heating temperature of the base material and the welding rod, which makes the welding efficiency higher and the welding seam quality better

Extrusion Welder Machine Specification:

Voltage:	220V
Frequency:	50/60HZ
Power:	3400 W hot air power+ 1300W extruding power
Driving motor:	METABO
Welding Shoe:	V & Flat Type, customized
Extruding Volume:	2.5kg/h
Diametere of Welding Rod:	Φ3.0mm, 4.0mm (5mm can be customized)
Digital Display:	Yes
Usage:	PP, PE
Welding thickness:	8-40mm

Extrusion Welder Machine Advantages:

1. Independently developed intelligent protection function, so that more assured!

2. Automatic Temperature Compensation Function

3. Cold Start Protection of drive motor

4. Fault Alarm display

8-40mm PP PE Plastic Hand Extrusion Welder 3400W 3/4mm Welding Rod 0

Package:

8-40mm PP PE Plastic Hand Extrusion Welder 3400W 3/4mm Welding Rod 1

Services:

Machine: 24months warranty.
1. Provide neutral packaging and small batch of customized services.

2. Provide a variety of welding boots small batch customization services.

3. The LCD display of the control box is more intuitive and convenient.

4. CE certification testing by third party.
