Butt Fusion Welding Machine Description

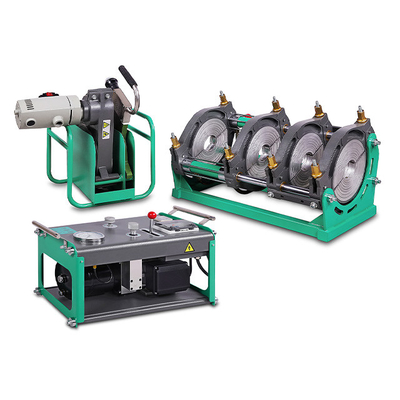

The MM-Tech SWT-V315/90H is a robust hydraulic butt fusion welding machine, perfect for seamless welding of pipes and fittings such as elbows and tees without extra equipment. Capable of handling HDPE, PP, and PVDF materials, it features a removable PTFE-coated heating plate with independent temperature control. Crafted from lightweight high-strength materials, its user-friendly design ensures easy operation. With a low starting pressure for small pipes, dual-channel timers for precise welding phases, and a shockproof pressure meter, it offers reliable, high-quality fusion welding for various industrial needs.
Technical Data
| Product Name |
Butt Fusion Welding Machine |
| WELDING RANGE O.D. |
90MM - 315MM |
| POWER SUPPLY |
220V±10%, 50/60HZ |
| HEATER POWER |
3.0 KW |
| TRIMMER POWER |
1.5KW |
| PUMP POWER |
1.1KW |
| WORKING PRESSURE RANGE |
0-80 BAR |
| WELDING RANGE INCH |
3''-12'' IPS |
| TEMPERATURE RANGE |
MAX. 280°C |
| PACKING DIMENSION |
930*620*630 MM |
| 630*600*730 MM |
| 650*340*380 MM |
| GROSS WEIGHT |
241 KGS |
| Country of origin |
China |
| Materials |
PE,PP |
PRODUCT FEATURES

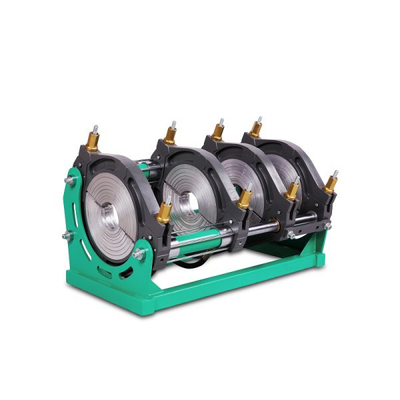

Machine Chassis
The butt fusion welding machine features an integrated chassis design, enabling quick disassembly for efficient maintenance. Compact yet sturdy, it resists deformation and oil leakage, even when handling thick pipes under harsh conditions. Fitted with premium hydraulic components sourced from top German, Italian, and Japanese suppliers, the chassis ensures reliable operation and long - lasting durability.

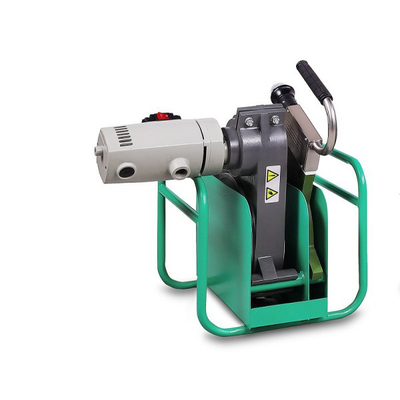

Heating Plate & Trimmer
The Heating Plate & Trimmer is engineered for optimal performance and durability. Constructed with high - grade Teflon from a leading brand, it minimizes adhesion between the plate and molten plastic, extending its service life. The plate offers precise temperature control, maintaining a stable ±3°C range on both sides for even heat distribution. Its stainless - steel junction box provides excellent corrosion resistance, ensuring reliable operation in tough conditions. Featuring a powerful electric drill for efficient pipe milling, the tool also has an ergonomic handle for a comfortable, secure grip, making it a robust and user - friendly solution.
Power Station
The Power Station is engineered with advanced features for exceptional performance and reliability. Its robust hydraulic system delivers up to 80 bar of pressure, ensuring stable power for demanding operations. Cartridge valves simplify maintenance, while precise temperature control minimizes discrepancies between actual and displayed temperatures, guaranteeing high - quality welding results. The integral frame features a quick - release mechanism for efficient servicing, and its compact, sturdy design resists deformation under external forces, making it perfect for heavy - duty applications.
Butt Fusion Welding Machine Application
Suitable for butt welding of plastic pipes and fittings made of PE,PP, and PVDF in worksite or workshop.
The SWT-V315/90H is a versatile fusion welding solution. It's essential for water infrastructure, creating secure, leak-proof joints in water supply networks. In gas distribution, it maintains infrastructure integrity by welding pipes reliably. For industrial applications using thermoplastic pipes, it offers durable fusion joints. In the mining industry, it efficiently welds pipelines transporting water, chemicals, and other resources, ensuring robust, long-lasting connections.
Weldable materials
MM-Tech Hydraulic Butt Fusion Welding Machine excels in wide material adaptability, proficiently welding HDPE, PE, PP, and PVDF plastic pipes—known for their physical strength and chemical stability across industrial applications.
Welding Effects Display
Admire the superior details and meticulous craftsmanship of our machine-welded HDPE pipelines. Each welded joint demonstrates flawless integrity and robust reliability, ensuring exceptional strength and precision. Using advanced detection technologies and strict quality control, we guarantee every weld meets the highest industry standards, securing long-term safety, durability, and optimal performance for your piping systems.
Service
Warranty Service:We provide two-year warranty service .Let you have worry-free after-sales service.
Pre-After Service:We offer comprehensive support, from expert guidance before purchase to personalized one-on-one service after purchase, ensuring you receive top-tier service throughout.
Professional service team:Our professional team is dedicated to providing premium service to meet your needs. We offer training and provide on-site solutions as needed to respond quickly to your requirements.
Abuout MM-Tech
Since 2011, MM-Tech has been a leading Chinese manufacturer of thermoplastic welding equipment, serving over 3,000 customers in 100+ countries. Its product line includes butt fusion, Workshop Fitting Fabrication, PPR, and Electrofusion machines, designed for diverse industrial needs. Driven by technical innovation and strict quality control, all products ensure reliable performance. With a global after-sales network, it provides prompt support for minimal downtime. Under the SWT and MM-TECH brands, the company focuses on integrity and sustainability, aiming to be the world’s top provider of comprehensive thermoplastic welding solutions, empowering customers with exceptional products and project solutions.
FAQ
How do I buy a machine from MM-Tech?
First, please click here to leave your request and contact information.
Then, our sales staff will contact you later to learn about your specific welding materials, thickness, working size, usage, etc. They will recommend the most suitable welding equipment according to your situation and give you a quotation.
After we agree on the welding equipment and contact terms through negotiation, we can arrange the production process after you pay the deposit.
You are welcome to communicate with our sales staff via text, phone or video call at any time to check the production progress of your welding equipment.
Do you offer a warranty?
Yes, we offer 1 year warranty. During the warranty period, if the machine is damaged by non-human factors, we promise to replace it with new parts for free.
How long is your delivery lead time?
Normally, our fiber laser cutting machine production lead time is 25-30 working days. The production cycle will vary depending on the machine required. Our sales staff will keep in touch with you to keep you informed of the latest developments.
What are the delivery methods?
Normal shipping methods are acceptable, such as air, sea and express.
What are your usual trade terms?
EXW, FOB, CFR, CIF, DAP, DDP, CPT and CIP
What payments do you support?
T/T, VISA, mastercard, Paypal, western union
How much temperature on the heater surface needed to butt fuse the pipes?
It varies depending on the pipe material and welding norms. Please consult the pipe manufacturer's recommended parameters.
What types of plastics are suitable for butt welding machines
Butt welding machines are suitable for most thermoplastic materials, which soften when heated and solidify when cooled.
The following are commonly used types of plastics suitable for hot melt welding:
Polyethylene (PE): Polyethylene is a common thermoplastic material used extensively in the manufacturing of plastic bags, bottles, containers, and pipes.
Polypropylene (PP): Polypropylene is another widely used thermoplastic material suitable for automotive components, electronic devices, medical instruments, and more.
Polyvinyl Chloride (PVC): PVC exhibits excellent chemical resistance and heat resistance, making it applicable in construction, wire and cable, pipe manufacturing, and other industries.
Polystyrene (PS): Polystyrene is commonly used in packaging, insulation cups, household appliance casings, and other manufacturing applications.
Polycarbonate (PC): Polycarbonate offers outstanding impact resistance and transparency, making it popular in the electronics, optical, and medical fields.
How Often Should We Replace The Blade of Pipe Fusion Welding Machine?
Replacing the blade not depends on a certain period. But you should replace it when two sides of the blade are blunt or chipped. The life of blade varies depending on the hours of operation, material being face, periodical maintenance, etc.
Can i buy extra spare parts if the machine broken?
Yes,we supply spare parts for machines,and technical teaching video for repair
