Effecitve 1000mm HDPE Pipe Butt Fusion Welding Machines For Irrigation Water Supply

Large Image : Effecitve 1000mm HDPE Pipe Butt Fusion Welding Machines For Irrigation Water Supply

Product Details:

Place of Origin:	China
Brand Name:	MM-Tech
Certification:	CE& ISO
Model Number:	SWT-V1000/630H

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 24500-26000/set
Packaging Details:	Plywood carton
Delivery Time:	5-8 working days
Payment Terms:	T/T 100% in advance
Supply Ability:	1 set per 20days

Contact Now

Detailed Product Description

Color:	Green	Warranty:	24 Months
Certificates:	CE&ISO	Welding Standard:	DVS2207
Welding Material:	HDPE PP PVDF PPH	Name:	Butt Fusion Welding Machines
Application:	Water Supply	Material:	Steel & Aluminum
Brand:	MM-Tech	Welding Range:	630-1200mm
Highlight:	Effecitve hdpe welding machines , 1000mm hdpe welding machines , Water Supply hdpe welding machines

Effecitve 1000mm HDPE Pipe Butt Fusion Welding Machines For Irrigation Water Supply 0

Overview:

HDPE Butt Fusion Welding Machines, which usually used to weld thermoplastic pipes like PP and PE, consists of three parts:

Machine Chasis: The intergral frame features a quick and detachable structure, facilitating rapid maintenance and repair.

Heating Plate & Trimmer: Ergonomic operation handle designed in accordance with ergonomic principles.

Power Station: Robust hydraulic power with a maximum system pressure of up to 140 bar.

Effecitve 1000mm HDPE Pipe Butt Fusion Welding Machines For Irrigation Water Supply 1

Technical Parameters:

Welding Range O.D.	630-1000 MM	Welding Range Inch	24''-42''IPS
Power Supply	380V ±10%, 50/60HZ	TEMPERATURE RANGE	MAX. 280 °C
HEATER POWER	17.5 KW	PACKING DIMENSION	255018501800 MM
TRIMMER POWER	3.0 KW		160011501900 MM
PUMP POWER	2.2 KW		800350400 MM
WORKING PRESSURE RANGE	0 - 140 BAR	GROSS WEIGHT	2318 KGS

Welding Materials and Types:

High-quality butt fusion welding machines are designed for welding HDPE, PP, PPH, PVDF, and PPR pipes across various industries, including water supply, irrigation, drainage, gas, water treatment, mining, and chemical plants.

Effecitve 1000mm HDPE Pipe Butt Fusion Welding Machines For Irrigation Water Supply 2

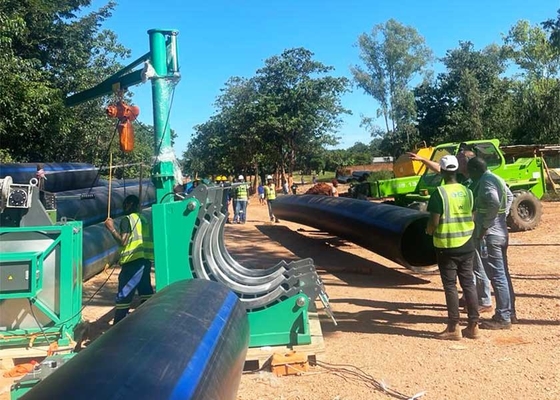

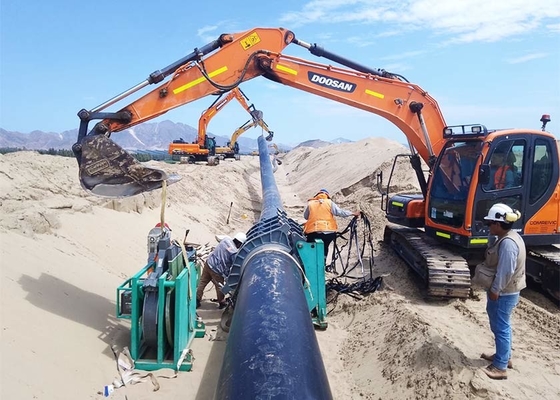

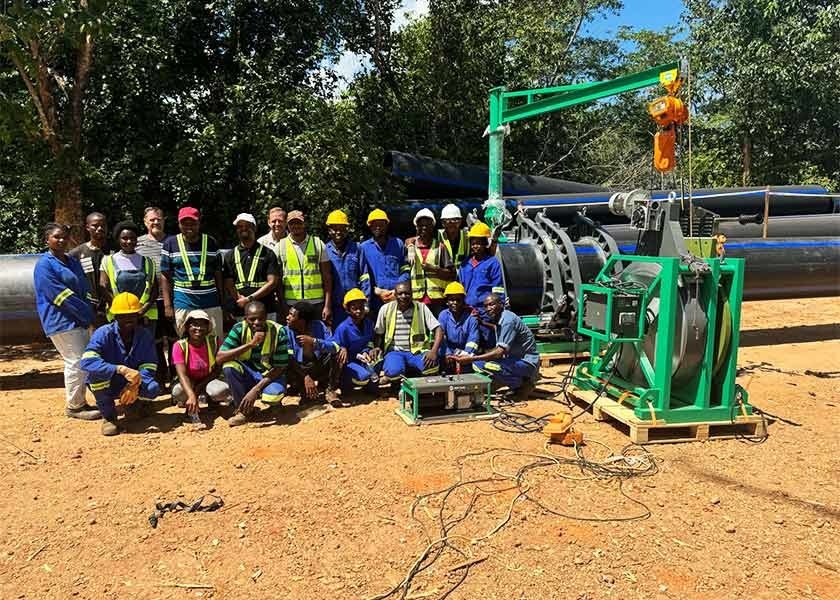

Application:

Effecitve 1000mm HDPE Pipe Butt Fusion Welding Machines For Irrigation Water Supply 3

Advantages:

These thermofusion welding machines are manufactured in strict compliance with the ISO 12176 standard and comply with the DVS 2207 welding standard. Additionally, they offer customization options to meet the ISO 21307 and ASTM F2620 high-force standards

1. The circuit breaker works with electricity leakage protection switch.

2. Bigger load capacity solid relays, longer service life.

3. Cartridge valve, making the layout of the oil block simpler.

4. Accumulator: keep the pressure stable for welding procedure.

5. Safety valve mounted on the side of the hydraulic block.

6. Using integral shaft instead of assembled shaft.

7.STUCCHI quick coupling; Oil seal kit (Glyd Ring type) origin from Germany and Japan, ensure long service life and reduce the risk of oil leakage

8. Brass iron meets iron, more soft than iron, longer service life.

9. Dupont Teflon-coating heating plate, and the temperature deviation on the surface is within 2℃.

10. Non-fan and sufficient power motor.

Certification:

CE & ISO certificates

After-Sales Service:

1. 7*24h online technical support.

2. Machines Quality Warranty: 24 months. If any main parts are broken or can not work under normal operating, we will provide them for free.
