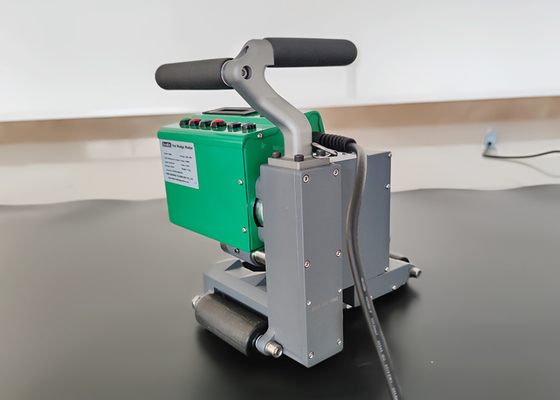

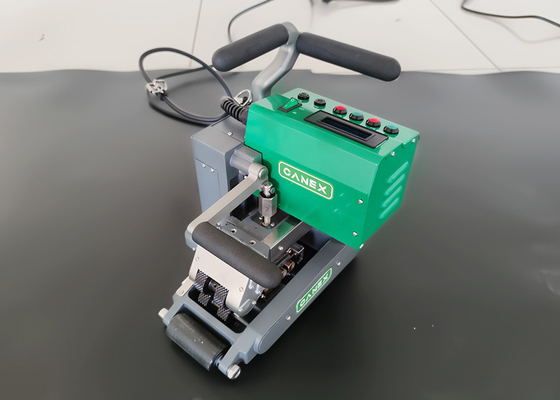

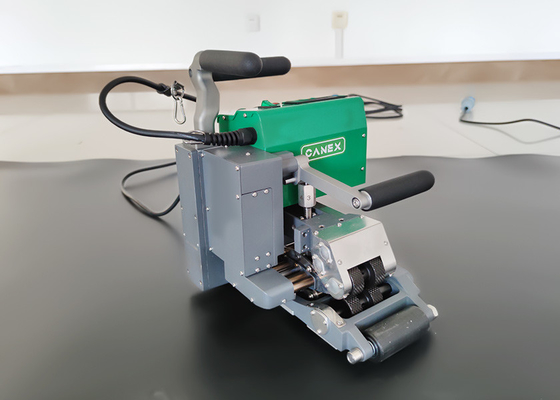

CX700 Geomembrane Welding Machine For 1.0-4.0mm PP PE Geomembrane
Product Description:
The CX700 weighs 11.5kg and has a power of 2400W. The main frame of this machine the material used is aviation aluminum, the characteristics of this material, light weight, high strength, no deformation, and we use the die casting process, (not foundry die casting), is open steel mold, the use of 1500 tons of die casting machine die casting molding, after forming, the surface is painted treatment, spray paint after processing.
Product Specification:
| Voltage: |
220V |
| Frequency: |
50Hz |
| Power: |
2400W |
| Weding speed: |
0-8m/min |
| Heating temperature: |
0-450℃ |
| Welding material thickness: |
1.0-4.0mm |
| Welding seam width: |
16mm*2, inner cavity 16mm |
| Welding seam strength: |
≥85% of original material |
| Overlap width: |
120mm |
| Net weight: |
11.5kg |
Applications:
The geomembrane welding machine CX700 is a versatile tool with broad applications. In hydraulic engineering, it ensures the integrity of canals and reservoirs by securely welding geo-membrane. For waste management, it's vital in landfill liners to prevent toxic leakage, safeguarding the environment. In mining, it effectively constructs secure tailings ponds. Also, it serves in agricultural water conservancy, building leak - proof irrigation systems and ponds. In civil engineering, it helps create durable and waterproof foundations for roads and railways. Its reliable performance is key to the success of various projects.
Product Advantages:
1. Main Frame Design:
The main frame is made of aviation aluminum, die-cast, and painted on the surface, which is light and strong.
2. Precision Bearings:
The bearing position and screw holes are CNC machined, using Japanese IKO needle roller bearings and German NSK deep groove ball bearings.
3. Liquid Crystal Display Screen:
The temperature and speed are controlled by computer chip programming, and the LCD screen digitally displays the temperature and speed.
4. Pressure Adjustment:
The entire bearing of the machine is imported from Germany.
5. Hot Wedge:
Equipped with a copper hot wedge, the thermal conductivity of copper is 4 times that of brass. Copper has good viscosity and the fixing screws are not loose.
6. Heating Tube:
The wading depth of the machine is 50mm (water lees than or equal to 50mm will not burn the machine). The heating cartridge adopts a curved tube design.
