80mm SWT-WP2 Roofing Hot Air TPO Welding Machine For SBS Bitumen Welding

Large Image : 80mm SWT-WP2 Roofing Hot Air TPO Welding Machine For SBS Bitumen Welding

Product Details:

Place of Origin:	China
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-WP2

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	US$2700-US$2800/set
Packaging Details:	aluminum box
Delivery Time:	5-8 working day
Payment Terms:	T/T, Western Union
Supply Ability:	1000sets/week

Contact Now

Detailed Product Description

Application:	SBS Bitumen Welding	Model:	SWT-WP2
Voltage:	230V	Power:	4200W
Welding Speed:	1.0-10.0m/min	Heating Temeperature:	50-620℃ Adjustable
Welding Pressure:	200N,addible	Welding Seam:	80-100mm
Net Weight:	36kg
Highlight:	Hot Air TPO Welding Machine , 80mm TPO Welding Machine , Roofing Hot Air Welding Machine

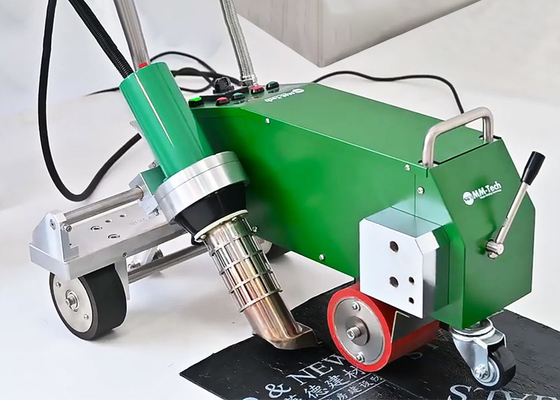

80mm SWT-WP2 Roofing Hot Air TPO Welding Machine For SBS Bitumen Welding

80mm SWT-WP2 Roofing Hot Air TPO Welding Machine For SBS Bitumen Welding 0

Product Description:

PVC, TPO, modified SBS and other materials in industrial plants, public places, underground

projects, ports, swimming pools, etc. can be matched with different types of roof welding machines. Whether it is large-area welding of flat roofs or local welding of parapets and gutters, it can meet all customer needs for welding roof waterproofing materials, making it more convenient and easy to use and more reliable to weld.

SWT-WP2 hot air welding machine is designed for asphalt specially, it can weld asphalt polymer materials seamlessly and tightly, with excellent sealing and waterproof properties.

Application	SBS Bitumen welding
Model	SWT-WP2
Voltage	230V
Welding speed	4200W
Heating temeprature	50-620℃ adjustable
Welding speed	1.0-10.0m/min
Welding pressure	200N addible
Welding seam	80-100mm
NET weight	36kg
Certificates	CE

Product Advantage:

1.Control system: Microcomputer chip control system shows temperature and speed, the accurate operation and strong protection make the performance ation accuracy is high and protection is stong.

2.Pressure system: Belt and pressure rollers can be transformed that balances the pressure and walking, which keeps perfect welding seam.

3.Accurate positioning system: it ensures walking straightly without deviation.

4.Efficent welding nozzle: Anti-scald protection design with maximizing heat volume and air volume.

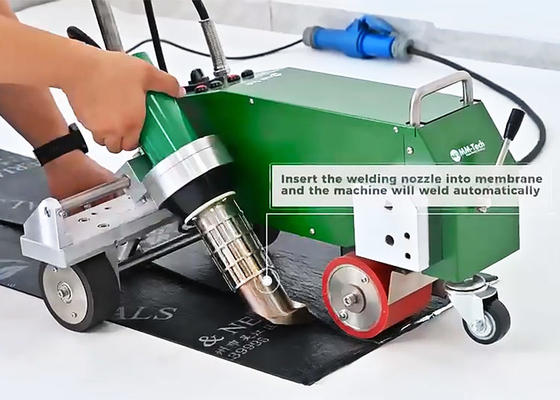

80mm SWT-WP2 Roofing Hot Air TPO Welding Machine For SBS Bitumen Welding 1

Application:

Waterproofing Tunnels, Basements, Landfills, Reservoirs

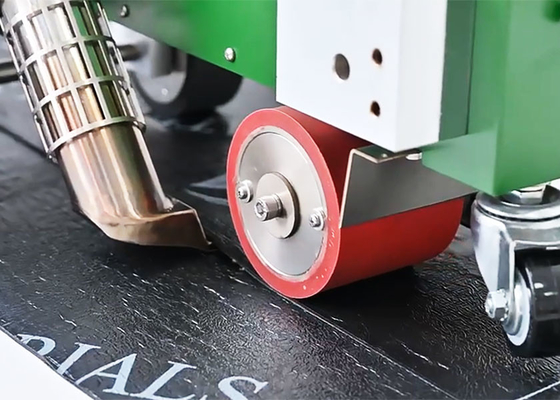

80mm SWT-WP2 Roofing Hot Air TPO Welding Machine For SBS Bitumen Welding 2

80mm SWT-WP2 Roofing Hot Air TPO Welding Machine For SBS Bitumen Welding 3

Related products:

80mm SWT-WP2 Roofing Hot Air TPO Welding Machine For SBS Bitumen Welding 4

80mm SWT-WP2 Roofing Hot Air TPO Welding Machine For SBS Bitumen Welding 5

FAQ

Q: Can the SWT-WP2 weld thicker membranes?

A: Yes, it handles thicker TPO/PVC membranes (1.5–2mm+) better than the WP1 due to improved heating.

Q: Is it suitable for outdoor use in cold weather?

A: Yes, but preheating the membrane is recommended below 50°F (10°C).

Q: What maintenance does it need?

Clean rollers & nozzles after each use.
Check heating element for wear.
Store in a dry place to avoid electrical damage.
