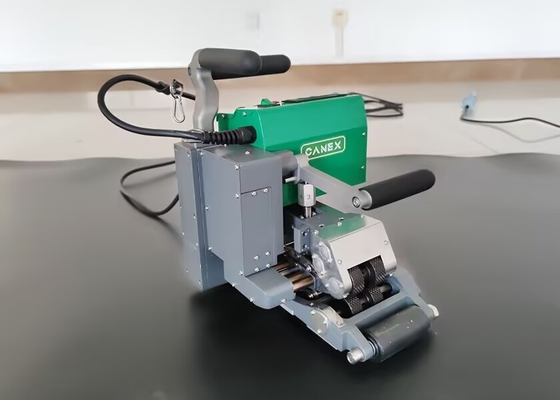

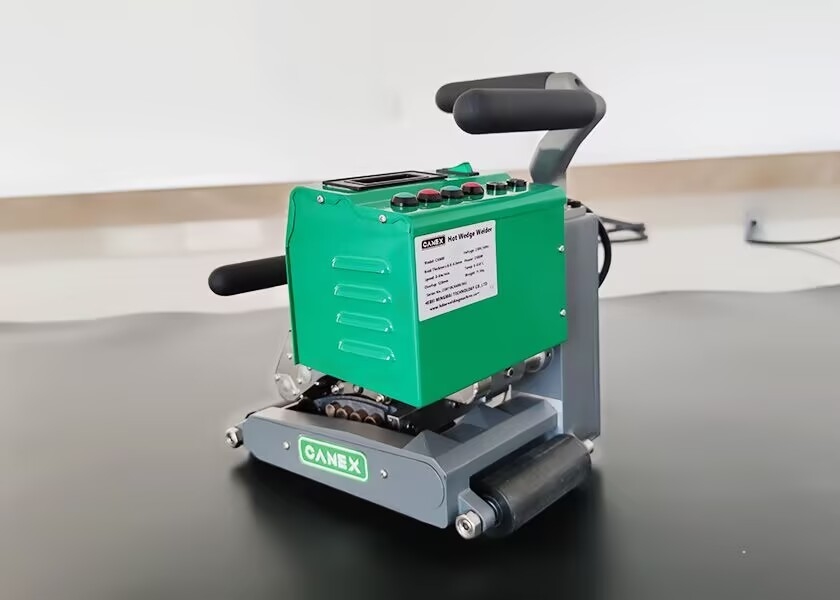

220V CX600 Geomembrane Hot Wedge Welding Machine With Warranty 5 year
CX series geomembrane welding machines are equipped with copper or brass hot wedges to ensure efficient and accurate welding process and meet the welding requirements of membranes of different materials.The bearings of the whole machine are imported from Germany, with excellent stability and durability, which effectively extends the service life of the equipment and ensures long-term stable operation.The welding machines are suitable for welding geomembranes with a thickness of 0.3-4.Omm. They are easy to operate and have excellent performance. They are ideal choices for geomembrane welding projects.The hot air guns are equipped with replaceable different welding nozzles to adapt to different welding needs.It adopts imported heating elements to ensure long-term stable work at high temperature.
Product Description:
The Cx600 has a power of 210oW and a weight of 11.5kg. The main frame of this machine, the material used is aviation aluminum, the characteristics of this material, light weight, high strength, no deformation, and we use the die casting process, (not foundry die casting), is open steel mold, the use of 15oo tons of die casting machine die casting molding,after forming, the surface is painted treatment, spray paint after processing.
| Voltage |
220V |
| Frequency |
50HZ |
| Power |
1400W |
| Welding speed |
0-8m/min |
| Heating temperature |
0-450℃ |
| Welding material thickness |
0.8mm-4mm |
| Welding seam strenght |
≥85%original material |
| Overlap width |
120mm |
| Net weight |
11.5kg |
| Certificate |
CE |
1. The temperature and speed are controlled by computer chip programming, and the LCD screen digitally displays the temperature and speed.
2. Equipped with a copper hot wedge, the thermal conductivity of copper is 4 times that of brass. Copper has good viscosity and the fixing screws are not loose.
3. The wading depth of the machine is 50mm (water less than or equal to 50mm will not burn the machine). The heating cartridge adopts a curved tube design.
4. The entire bearing of the machine is imported from Germany.
5. The gearbox transmission adopts the most advanced helical gear transmission technology.
6. The temperature sensor adopts a stainless steel armor shell, which is not afraid of acid and alkali corrosion.
Products Advantage:
1. Main Frame Design:
The main frame is made of aviation aluminum,die-cast, and painted on the surface, which is light and strong.
2. Precision Bearings:
The bearing position and screw holes are CNC machined, using Japanese IKO needle roller bearings and German NSK deep groove ball bearings.

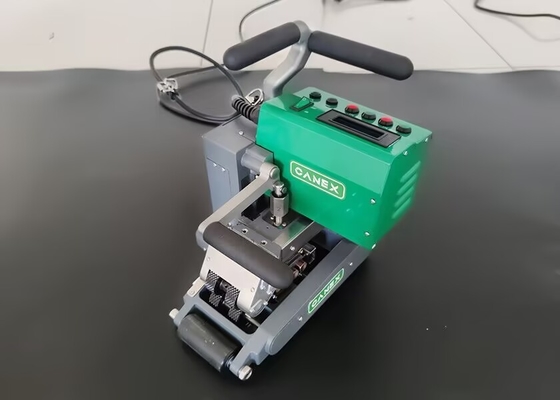

3. Digital Display Screen:
The temperature and speed are controlled by computer chip programming, and the LCD screen digitally displays the temperature and speed.
4. Pressure Adjustment:
The double handle design is ergonomic and the pressure nut is equipped with a high-strength spring for easy adjustment.
5. Hot Wedge
Equipped with a copper hot wedge, the thermal conductivity of copper is 4 times than that of brass. Copper has good viscosity and the fixing screws are not easy to lose.
6. Heating Cartridge
The wading depth of the machine is 50mm (water less than or equal to 50mm will not burn the machine). The heating cartridge adopts a curved tube design.
Application:
1. Mining:
Mime wastewater, waste residue treatemnt, Tailings Leakage Prevention
2. Environmental Engineering:
Landill, Sewage treatment plant
3. Aquaculture:
Aquaculture ponds, fish ponds, shrimp ponds, etc,.
