SWT-NS900D Hot Wedge Welding Machine 1800W for 1-3mm Geomembranes

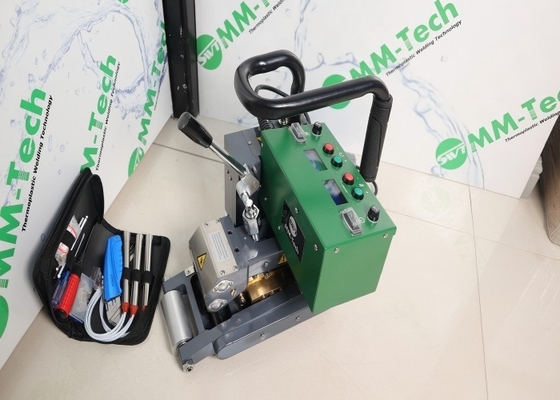

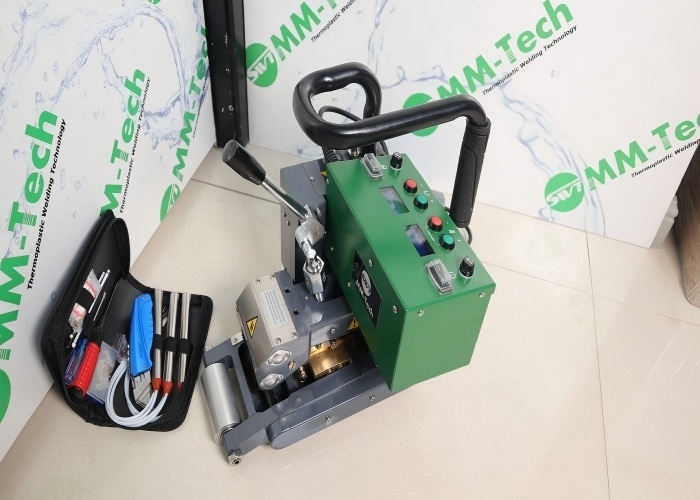

Large Image : SWT-NS900D Hot Wedge Welding Machine 1800W for 1-3mm Geomembranes

Product Details:

Place of Origin:	China
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-NS900D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	1910/set
Packaging Details:	aluminum box
Delivery Time:	5-8 work day
Payment Terms:	T/T, Western Union
Supply Ability:	1000sets/week

Contact Now

Detailed Product Description

Voltage:	230V	Product Name:	SWT-NS900D
Power:	1800W	Weight:	13kg
Overlap Width:	12cm	Welding Speed:	1-5m/min
Temperature:	50-450℃	Seam Strength:	≥85% Original
Welding Thickness:	1-3mm	Feeding Method:	From Two Sides
Highlight:	hot wedge welding machine for geomembranes , 1800W geomembrane welding machine , 1-3mm geomembrane welding equipment

Hot Wedge Welding Machine SWT-NS900D Two Sides 1-3mm Thickness

Product Specifications

Attribute	Value
Voltage	230V
Product name	SWT-NS900D
Power	1800W
Weight	13kg
Overlap Width	12cm
Welding speed	1-5m/min
Temperature	50-450℃
Seam strength	≥85% original
Welding thickness	1-3mm
Feeding method	From Two sides

Product Description

The welding machine adopts advanced heat chip structure, high power, high pressure, fast welding speed suitable for 1.0-3.0mm thick film material welding machine, suitable for HDPE, LDPE, PVC, EVA, ECB, PP and other hot melt materials.

Technical Data

Voltage	230V
Frequency	50/60Hz
Power	1800W
Weight	13kg
Welding speed	1-5m/min
Overlap width	12cm
Temperature	50-450℃
Seam width	15mm*2, interior Cavity 15mm
Welding thickness	1-3mm
Seam strength	≥85% Original
Feeding method	From two sides
Digital display	Temperature & speed

Applications

Products are used in water conservancy, aquaculture, landfill, chemical and mining, sewage treatment, roof construction and other fields of waterproof and seepage control engineering.

Product Features

High power and torque motor combined
Advanced "T" style jib design and pressure regulation structure
Advanced intelligent digital temperature and speed control systems
1800W powerful metal hot wedge and special heating system design
Special stainless steel pressure rollers with strong pressure force to weld 1.0mm-3.0mm membrane
