CX700 Geomembrane Welding Machine 1400W 1-4mm Thickness

Large Image : CX700 Geomembrane Welding Machine 1400W 1-4mm Thickness

Product Details:

Place of Origin:	China
Brand Name:	MM-Tech
Certification:	CE
Model Number:	CX700

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	US$2850-US$2900/set
Packaging Details:	aluminum box
Delivery Time:	5-8 working day
Payment Terms:	T/T,Western Union
Supply Ability:	1000set a week

Contact Now

Detailed Product Description

Voltage:	220v	Overlap Width:	120MM
Welding Way:	Same Welding Way	Frequency:	50HZ
Power:	1400w	Welding Speed:	0-8m/min
Welding Material Thickness:	1mm-4mm	Heating Temeperature:	0-450℃
Net Weight:	11.5kg	G.W.:	18kg
Highlight:	CX700 geomembrane welding machine 1400W , geomembrane welding machine 1-4mm thickness , hydraulic butt fusion welding machine

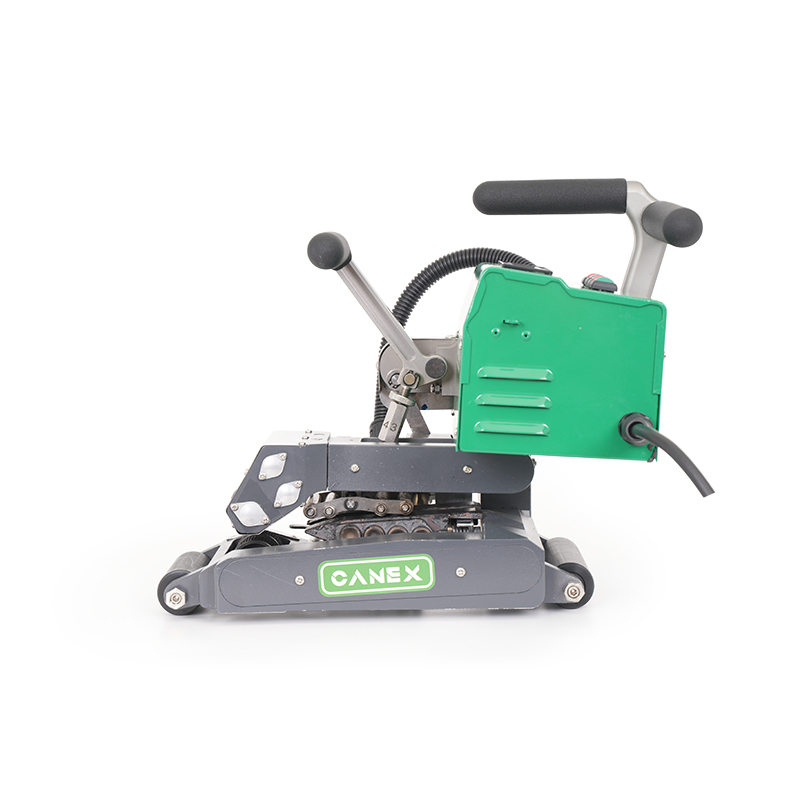

Same Side Welding 1.0-4mm CX700 Fish Pond Hot Wedge Welding Machine

The CX700 geomembrane welding machine is designed for fish pond applications, featuring a copper hot wedge for efficient welding of 1.0-4mm thick membranes. With German-imported bearings and aviation aluminum construction, this 11.5kg machine delivers stable, long-term performance for demanding welding projects.

Key Specifications

Voltage	220V
Frequency	50HZ
Power	1400W
Welding speed	0-8m/min
Heating temperature	0-450℃
Welding material thickness	1mm-4mm
Welding seam strength	≥85% original material
Overlap width	120mm
Net weight	11.5kg
Certificate	CE

Advanced Features

Computer-controlled temperature and speed with LCD digital display
Copper hot wedge with 4x better thermal conductivity than brass
50mm wading depth capability with curved tube heating cartridge design
German-imported bearings for enhanced durability
Helical gear transmission technology in gearbox
Stainless steel armored temperature sensor resistant to acid/alkali corrosion

Product Advantages

Aviation Aluminum Frame: Die-cast construction with surface painting for lightweight strength
Precision Bearings: CNC-machined positions using Japanese IKO and German NSK bearings
Digital Controls: Computer chip programming with LCD display
Ergonomic Design: Double handle with high-strength spring pressure adjustment
Superior Heat Transfer: Copper hot wedge maintains secure screw fastening
Water-Resistant: Curved tube heating cartridge protects against water damage

Applications
