220V 2400W CX700 Geomembrane Welding Machine 1-4mm Thickness

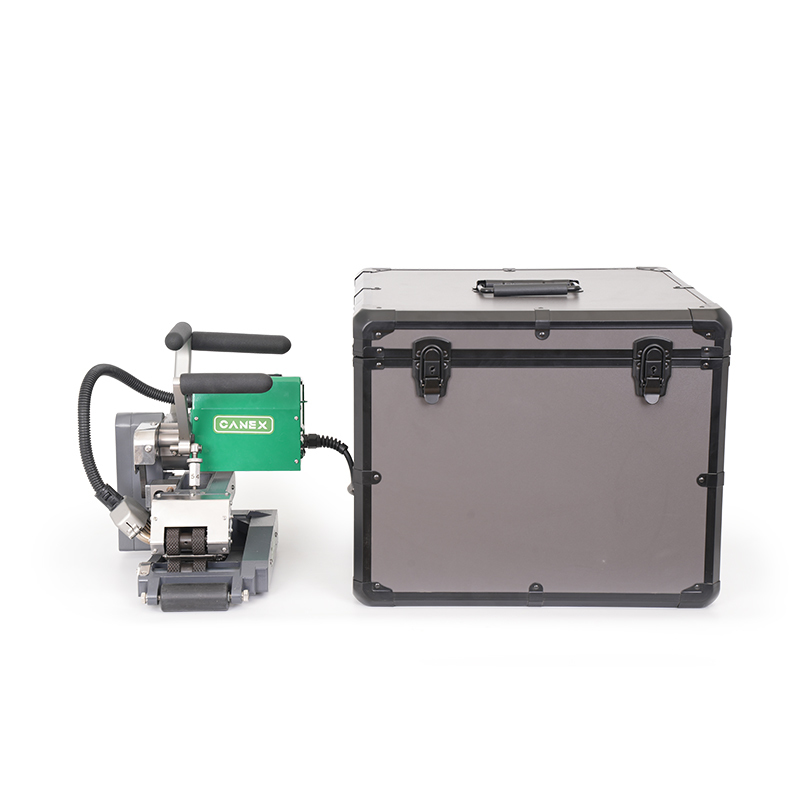

Large Image : 220V 2400W CX700 Geomembrane Welding Machine 1-4mm Thickness

Product Details:

Place of Origin:	China
Brand Name:	MM-Tech
Certification:	CE
Model Number:	CX700

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	US$2850-US$2900/set
Packaging Details:	aluminum box
Delivery Time:	5-8 working day
Payment Terms:	T/T,Western Union
Supply Ability:	1000set a week

Contact Now

Detailed Product Description

Voltage:	220v	Welding Seam Width:	16mm×2, Inner Cavity 16mm
Frequency:	50HZ	G.W.:	18kg
Power:	2400w	Welding Speed:	0-8m/min
Heating Temeperature:	0-450℃	Net Weight:	11.5kg
Overlap Width:	120mm	Welding Material Thickness:	1mm-4mm
Highlight:	220V geomembrane welding machine , 2400W hydraulic fusion welder , 1-4mm thickness CX700 welder

1-4mm 2400W CX700 Landfill Hot Wedge Welding Machine

1.0-4mm CX700 Geomembrane Welding Machine For FishPond

CX series geomembrane welding machines feature copper or brass hot wedges for efficient, precise welding of membranes with different material requirements. With German-imported bearings for excellent stability and durability, these machines ensure long-term reliable operation. Suitable for welding geomembranes with thicknesses from 0.3-4.0mm, they offer easy operation and superior performance for geomembrane welding projects.

Product Specifications

Voltage	220V
Frequency	50HZ
Power	1400W
Welding speed	0-8m/min
Heating temperature	0-450℃
Welding material thickness	1mm-4mm
Welding seam strength	≥85% original material
Overlap width	120mm
Net weight	11.5kg
Certificate	CE

Key Features

Computer chip programming controls temperature and speed with LCD digital display
Copper hot wedge provides 4x better thermal conductivity than brass
50mm wading depth capability with curved tube heating cartridge design
German-imported bearings throughout the machine
Advanced helical gear transmission technology in gearbox
Stainless steel armored temperature sensor resistant to acid/alkali corrosion

Product Advantages

1. Main Frame Design: Aviation aluminum construction with die-cast, painted surface for lightweight strength.

2. Precision Bearings: CNC-machined bearing positions using Japanese IKO and German NSK bearings.

3. Digital Display: Computer-controlled temperature/speed with LCD readout.

4. Pressure Adjustment: Ergonomic double handle design with high-strength spring pressure nut.

5. Hot Wedge: Copper construction for superior thermal conductivity and secure fastening.

6. Heating Cartridge: Curved tube design with 50mm water resistance.

Applications

Mining: Mine wastewater treatment, waste residue containment, tailings leakage prevention
Environmental Engineering: Landfills, sewage treatment plants
Aquaculture: Fish ponds, shrimp ponds, and other aquaculture applications
