63mm-200mm Automatic CNC HDPE Butt Welding Machine

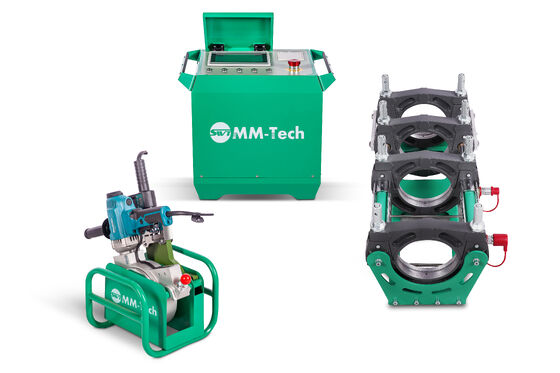

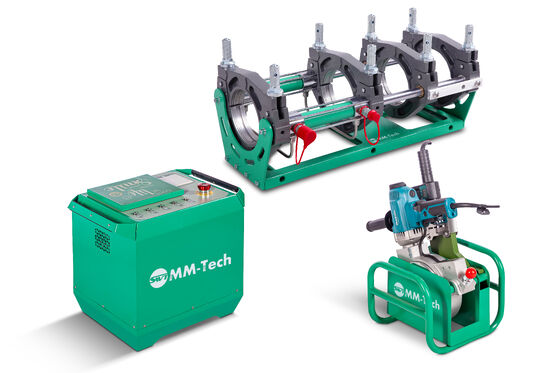

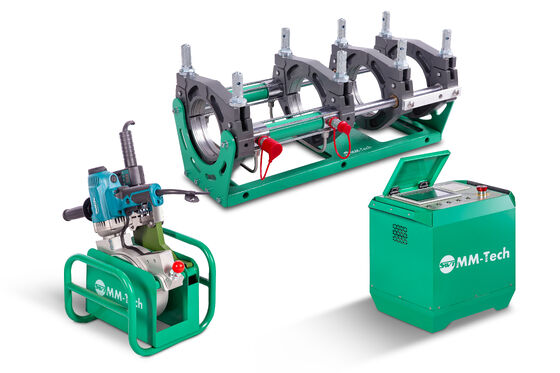

Large Image : 63mm-200mm Automatic CNC HDPE Butt Welding Machine

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-V200/63A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD7,200/set
Packaging Details:	3 Plywood Cases
Delivery Time:	Within 7 days
Payment Terms:	T/T,Western Union,PayPal
Supply Ability:	10/set per month

Contact Now

Detailed Product Description

Voltage:	230V	Frequency:	50/60Hz
Type:	Fully Automatic	Rated Power:	3.0KW
Welding Range:	63 - 200mm	Usage:	Butt Welding
Quality Guarantee:	24 Months	Brand:	MM-TECH
Model:	SWT-V200/63A	Weldable Material:	HDPE PP PVDF And Other Thermoplastic Materials
Color:	Green	Application:	Pipe Systems
Highlight:	63mm-200mm HDPE pipe welding machine , automatic CNC butt fusion welder , HDPE pipe butt welding machine with warranty

Automatic 63 - 200mm HDPE Butt Fusion Welding Machine

Butt Fusion Welding Machine Introduction

The MM-TECH V-CNC series automatic hydraulic butt welding machines are applied to joint PE, PP, PPR and PVDF pipes and moulded fittings. Selection of components with a long service life ensures a low maintenance and repair, friendly and reliable operation.
Due to the unique powertrain, it could not only create sufficient hydraulic power during welding procedure, but also it makes sure the precise control. And most importantly, it greatly reduce the weight of control box. And the servo-motor applied significantly reduce the failure possibility and maintenance cost.

Butt Fusion Welding Machine Datasheet

Model	SWT-V200/63A
Welding Range O.D.(mm)	63 - 200mm
Reducer Inserts	63,75,90,110,125,140,160,180
Power Supply	230V 50/60Hz
Rated Power(kW)	3.0
Piston Area(cm²)	6.27
Overall N.W./G.W.(kg)	110kg/140kg

Butt Fusion Welding Machine Application

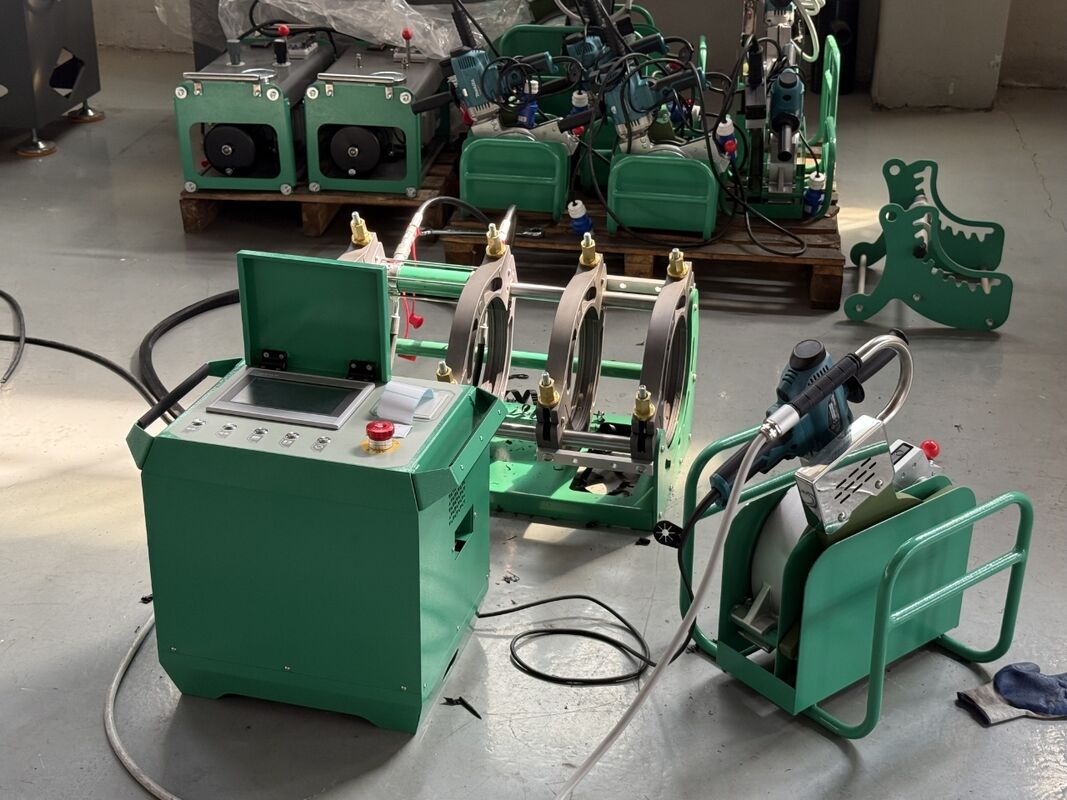

63mm-200mm Automatic CNC HDPE Butt Welding Machine 0

Exhibition

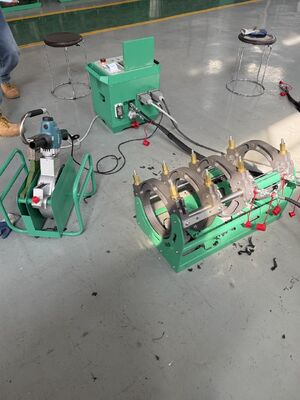

63mm-200mm Automatic CNC HDPE Butt Welding Machine 1

Quality Guarantee	2 years
Delivery Time	Within 7 days
