CX500S 220V 2mm Thickness Geomembrane Climbing Pond Liner Dam Liner Hot Wedge Welder

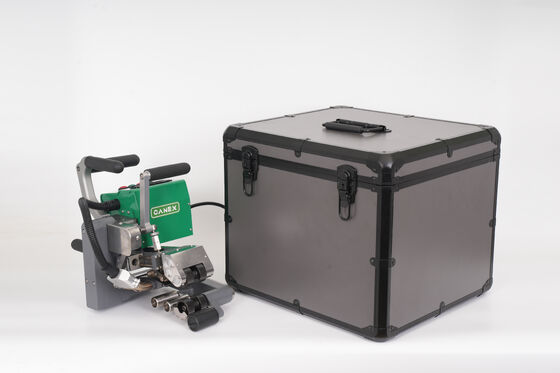

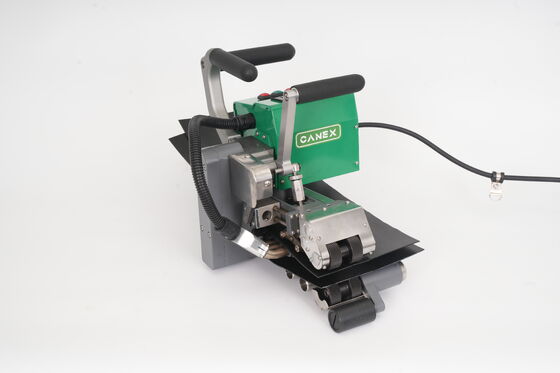

Large Image : CX500S 220V 2mm Thickness Geomembrane Climbing Pond Liner Dam Liner Hot Wedge Welder

Product Details:

Place of Origin:	Hebei,China
Brand Name:	Canex
Certification:	CE,ISO
Model Number:	CX500S

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	US$1900-US$2200 per set
Packaging Details:	Aluminum Box + Carton
Delivery Time:	7 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	20sets per day

Contact Now

Detailed Product Description

Voltage:	220V	Frequency:	50HZ
Power:	1800W	Welding Speed:	0-6m/min
Welding Material Thickness:	0.8-3mm	New Weight:	10kg
Overlap Width:	110mm
Highlight:	geomembrane hot wedge welder , 2mm thickness pond liner welder , 220V dam liner welding machine

CX500S 220V 2mm Thickness Geomembrane Climbing Pond Liner Dam Liner Hot Wedge Welder

More stable, more efficient, more durable; dual-purpose automatic crawling hot wedge welding machine, with dual weld seam leakage detection channels, suitable for geotextile engineering projects such as landfill sites, reservoirs, aquaculture ponds, and tunnel anti-seepage.

Voltage:	220V
Frequency:	50Hz
Power:	1800W
Welding speed:	0-6m/min
Heating emperature:	0-450℃
Welding material thickness:	0.8mm-3.0mm
Welding seam width:	16mm*2, inner cavity 16mm
Welding seam strength:	≥85% of the original material
Overlap width:	110mm
G./N. weight:	17kg/10kg

CX500S 220V 2mm Thickness Geomembrane Climbing Pond Liner Dam Liner Hot Wedge Welder

Application fields

Application Case – CX500S Geomembrane Welder in South America

A mining company in the Peruvian highlands needed reliable anti-seepage lining for a tailings pond. Harsh terrain and fluctuating temperatures made weld quality a major concern, and the client feared failed seams could cause leakage and environmental penalties.

They chose the CANEX CX500S geomembrane welder (1800W, 10kg). The copper hot wedge with uniform heating produced strong double seams with an interior leak-test cavity, allowing on-site pressure testing to verify every joint. Its stable speed control maintained consistent weld quality even on slopes and in cold conditions, while the ergonomic design let operators work efficiently over the large pond area.

The result: the pond lining was completed ahead of schedule, and all weld seams passed field acceptance tests. The client reported the CX500S delivered dependable performance, reducing rework and boosting construction efficiency across their project.
