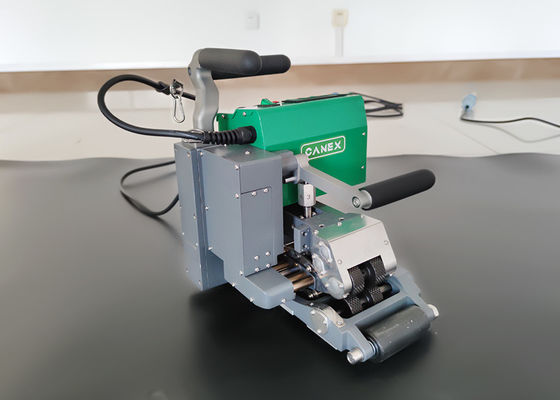

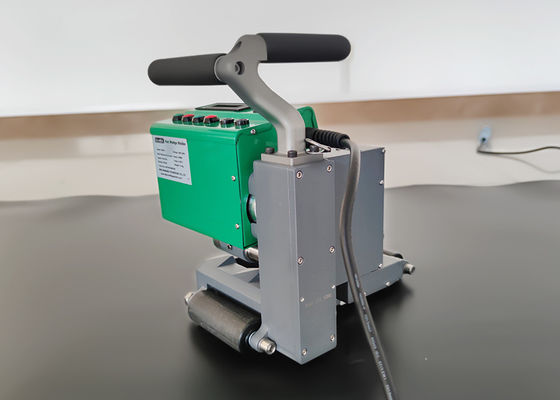

CX600 220V 0.5mm Thickness High Quality Geomembrane Climbing Pond Liner Dam Liner Hot Wedge Welder
Product Description:
The CX600 has a power of 2100W and a weight of 11.5kg. The main frame of this machine, the material used is aviation aluminum, the characteristics of this material, light weight, high strength, no deformation, and we use the die casting process, (not foundry die casting), is open steel mold, the use of 1500 tons of die casting machine die casting molding, after forming, the surface is painted treatment, spray paint after processing.
| Voltage: |
220V |
| Frequency: |
50Hz |
| Power: |
2100W |
| Welding speed: |
0-8m/min |
| Heating temperature: |
0-450℃ |
| Welding material thickness: |
0.8-4.0mm |
| Welding seam width: |
16mm*2, inner cavity 16mm |
| Welding seam strength: |
≥85% of original material |
| Overlap width: |
120mm |
| Net weight: |
11.5kg |
Application of CX Series Geomembrane Welding Machines
The CANEX CX series are automatic hot wedge welders designed for reliable seaming of HDPE, PVC, EVA and LDPE geomembranes across a wide range of anti-seepage projects.
Landfill & Mining. The CX600 handles thicker liners for landfill covers, tailings ponds and mining anti-seepage works. Their double seams with an interior leak-test cavity support on-site pressure testing, reducing leakage risk in waste and mineral containment.
Biogas & Energy Digesters. Used to weld biogas pond and digester liners, delivering uniform seams under repeated temperature changes.
Water Conservation & Tanks. Suitable for reservoirs, irrigation ponds, industrial storage tanks and capping liners, supporting overlap lap welding.
Complete Construction. Paired with hot air guns, extrusion welders and pressure testing tools, the CX series covers main seaming, corner repair and quality inspection in one efficient workflow. With adjustable pressure and film-thickness adaptation, CX machines balance portability for small sites and output for large projects.
Product Features
- Main Frame Design
The main frame is made of aviation aluminum, die-cast, and painted on the surface, which is light and strong.
- Precision Bearings
The bearing position and screw holes are CNC machined, using Japanese IKO needle roller bearings and German NSK deep groove ball bearings.
- Digital Display Screen
The temperature and speed are controlled by computer chip programming, and the LCD screen digitally displays the temperature and speed.
- Pressure Adjustment
The double handle design is ergonomic, and the pressure nut is equipped with a high-strength spring for easy adjustment.
- Hot Wedge
Equipped with a copper hot wedge, the thermal conductivity of copper is 4 times than that of brass. Copper has good viscosity and the fixing screws are not easy to loose.
