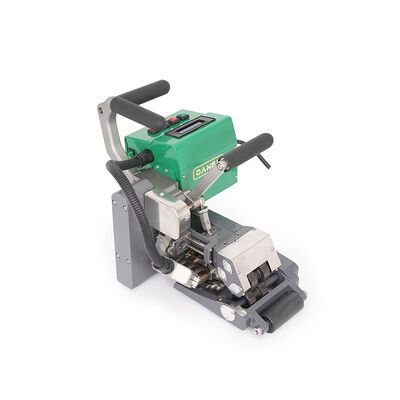

CX700 1-4mm 2400w Reliable Plastic Pehd Geomembrane Hot Wedge Welder For Welding Polypropylene Hdpe

Large Image : CX700 1-4mm 2400w Reliable Plastic Pehd Geomembrane Hot Wedge Welder For Welding Polypropylene Hdpe

Product Details:

Place of Origin:	Hebei,China
Brand Name:	Canex
Certification:	CE,ISO
Model Number:	CX700

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	US$2650-US$2800/set
Packaging Details:	Aluminum Box + Carton
Delivery Time:	7 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	20sets per day

Contact Now

Detailed Product Description

Product Name:	Geomembrane Welding Machine	Model:	CX700
Overlap Width:	100mm	Frenquency:	50Hz
Welding Speed:	0-8m/min	Seam Strength:	≥85% Of Original Material
Usage:	HDPE Geomembrane Welding	Certificate:	CE ISO
Warranty:	2 Years
Highlight:	CX700 geomembrane hot wedge welder , 2400w HDPE geomembrane welder , 1-4mm plastic geomembrane welder

Product Overview

The CX700 is a reliable hot wedge welder designed for welding PEHD geomembrane and polypropylene/HDPE materials with a thickness range of 1–4 mm. Weighing 11.5 kg and delivering 2400 W of power, it is built for dependable, continuous performance on demanding job sites.

The main frame is constructed from aviation aluminum, a material chosen for its light weight, high strength, and resistance to deformation. It is produced using a die casting process with an open steel mold on a 1500-ton die casting machine. After forming, the surface receives a painted finish for added durability and a professional appearance.

Technical Specifications

Voltage	220V
Frequency	50HZ
Power	1400W
Welding Speed	0–8 m/min
Heating Temperature	0–450 °C
Welding Material Thickness	1 mm–4 mm
Welding Seam Strength	≥85% of original material
Overlap Width	120 mm
Net Weight	11.5 kg
Certificate	CE

Product Features

1. Main Frame Design

The main frame is made of aviation aluminum, die-cast and surface-painted, combining light weight with high strength.
2. Precision Bearings

Bearing positions and screw holes are CNC machined, using Japanese IKO needle roller bearings and German NSK deep groove ball bearings.
3. Digital Display Screen

Temperature and speed are controlled by computer chip programming, with an LCD screen providing digital readouts of both values.
4. Pressure Adjustment

The entire bearing assembly of the machine is imported from Germany.
5. Hot Wedge

Equipped with a copper hot wedge, whose thermal conductivity is four times that of brass. Copper offers good viscosity, and the fixing screws are not easy to loosen.
6. Heating Cartridge

The machine has a wading depth of 50 mm, meaning water at or below 50 mm will not damage the machine. The heating cartridge adopts a curved tube design.
