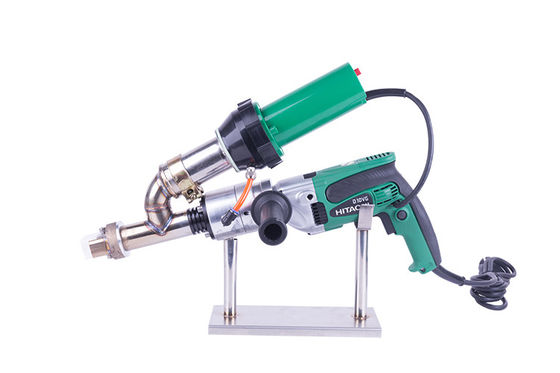

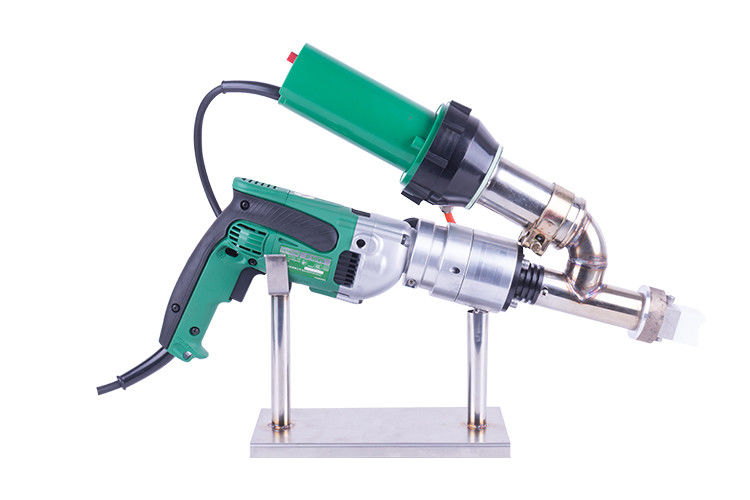

SWT-NS600E Hdpe Pipe Plastic Pipe Jointing Extrusion Welding Machine

SWT-NS600E Hdpe Pipe Plastic Pipe Jointing Extrusion Welding Machine
SWT-NS600E Hdpe Pipe Plastic Pipe Jointing Extrusion Welding Machine SWT-NS600E Hdpe Pipe Plastic Pipe Jointing Extrusion Welding Machine SWT-NS600E Hdpe Pipe Plastic Pipe Jointing Extrusion Welding Machine

Large Image :  SWT-NS600E Hdpe Pipe Plastic Pipe Jointing Extrusion Welding Machine

Product Details:
Place of Origin: Hebei,China
Brand Name: MM-TECH
Certification: CE,ISO
Model Number: SWT-NS600E
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD1400-USD1700 per set
Packaging Details: Aluminum Alloy Box
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per week
Contact Now
Detailed Product Description
Product Name: Extrusion Welding Machine Model: SWT-NS600E
Welding Area: 3.0-4.0mm Condition: New
Plastic Processed: PE,PP,HDPE Certification: CE ISO
Voltage: 220V/110V Weight: 13KGS/7KGS
Power: 3400W After-sales Service Provided: Engineers Available To Service Machinery Overseas,Free Spare Parts


Extrusion Welder Machine Instruction:


SWT-NS Model extrusion welder is a new type of hot air welder which imported foreign advanced technology, well-developed.

This product is with two major components,preheating raw material’s hot air part and welding rod’s extrusion part.

Hot air part with adjustable temperature controller to heat automatically,and extrusion part with independent thermostatic heating control system to send hot air independently, It is easy to adjust extrusion speed and use screw extruding for powerful extrusion pressure.
Using 220v power supply uniformly to weld plastic sheets,tube and other thermoplastic products,especially for both ends
of large diameter hollow wall pipe,producing pipe and repairing pipe and so on.
Available welding materials: thermoplastic HDPE, PP, PVDF, especially PE .
Do not apply in a conductive plastic (PE-EL), or cause the machine to produce a conductive short-circuit.


Extrusion Welder Machine Specification:


Voltage:220V
Frequency:50/60HZ
Power::3400w
Wind Temperature:20-600℃
Heating Temperature When Extrudng:200-380℃
Extruding Volume:2.0 kg/h
Diametere of Welding Rod:Φ3.0mm-4.0mm
Weight:6 kg
Usage:PVC Tarpaulin Welding Extruder
Welding thickness:1-10MM


Extrusion Welder Machine Features:

This series of welding machine is powerful with high welding speed and good welding quality.
It is available for welding PE, PVDF, PVC, PP and other hot melt materials.
It is the first one to have a digital display control, 360 degree rotating welding head,
the motor cold start protection, independent heating of welding rod and membrane material and other functions in China.
SWT-NS600E Hdpe Pipe Plastic Pipe Jointing Extrusion Welding Machine 0

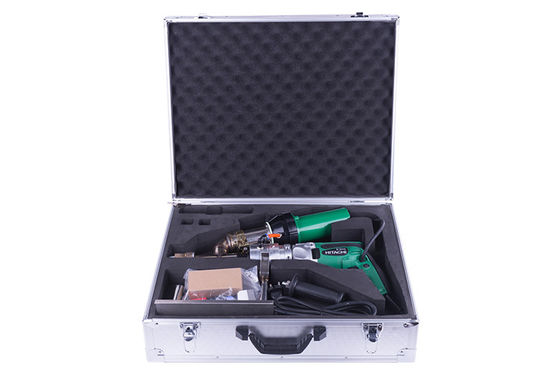

Package:
SWT-NS600E Hdpe Pipe Plastic Pipe Jointing Extrusion Welding Machine 1
After-Sales Service:

We always provide high quality products and workable price for every clients and have
won the trust, enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under
normal operating, we provide them for free.

Tag:

6.5KG Extrusion Welding Machine,

220V Extrusion Welding Machine,

220V Hdpe Extrusion Welding Gun
