Geo Membrane Leak Detection Tool High Pressure Variable Sensitivity

MMT-7DJ Geo Membrane Leakage Damage Detector

Geo Membrane Leakage Detector​ Introduction

1. MMT-7DJ Plastic Film Leak Detector is a high-pressure instrument.
2. It is a testing equipment used to detect the surface integrity of leaking plastic film and impermeable film.
3. It can identify damage points of any size caused by transportation, installation and use, and maintenance of the plastic film.

Geo Membrane Leakage Detector​​ Technical Data

1. Output high voltage: 1KV～50KV (continuously adjustable)
2. Direct indication of output high voltage value, voltage accuracy ±1%
3. Detection thickness ≤35mm
4. Variable sensitivity
5. Battery: 12V/2200mA
6. Power consumption: ≤5W
7. Host volume: 220 × 130 × 88 mm3
8. Backlight
9. Leak point count: maximum 999
10. Turn on instantaneously, turn off automatically when power off
11. Three-digit LCD display output voltage, full touch panel
12. Alarm: buzzer alarm

Geo Membrane Leakage Detector Packing Size

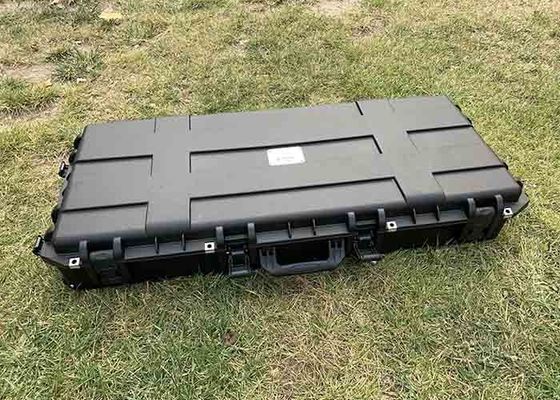

1 Black Plastic Box Inside and 1 Carton Outside

Geo Membrane Leakage Detector Quality Guarantee

24 months -- If any parts broken or doesn't work under normal operating, we will provide them for free.

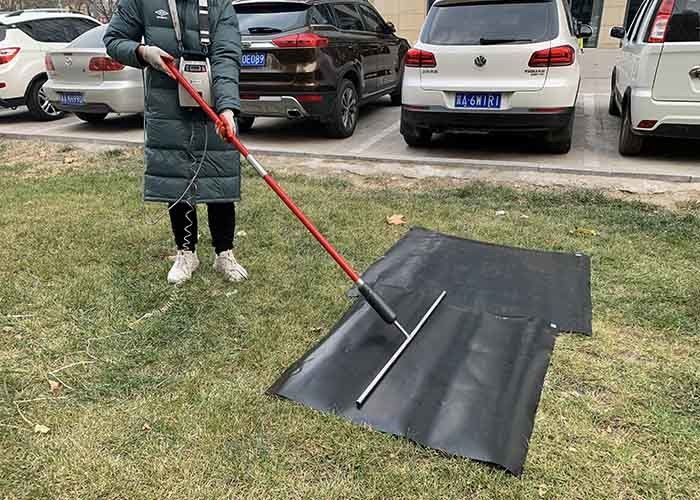

Geo Membrane Leakage Detector Application
