MM-Tech: SWT-NS800 Hot Wedge Welder
-------This hot wedge welder light, small structure for welding 0.2-1.5mm.
HDPE,LDPE,PVC,EVA,ECB,PP, thermoplastic material, which used in waterproofing projects like tunnels, subway, water conservancy, farming, solid waste landfills, chemical mining industry, sewage treatment, roofing, etc.
Hot Wedge Welder Specification:
| Voltage: |
220v |
| Frequency |
50Hz |
| Power: |
750W
m br |
| Welding speed: |
0.5-5mmin |
| Heating temperature: |
0-450°C |
| Thickness of material: |
0.2mm-1.5mm( PVC: 0.2-2.0mm ) |
| overlap width: |
10cm ( can be customized) |
| Welding width: |
12.5mm×2, interior cavity 12mm( can be customized ) |
| seam strength: |
≥85% base material(tensile resistant in shear direction) |
| Weight: |
5kgs |
| Insulation class: |
class ll |
| Usage |
for welding geomembrane,such as PE PVC EVA and so on |

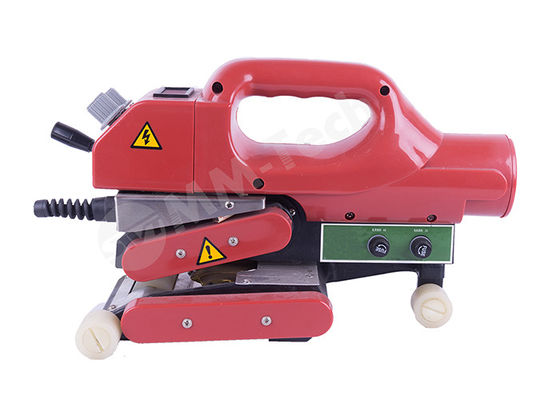

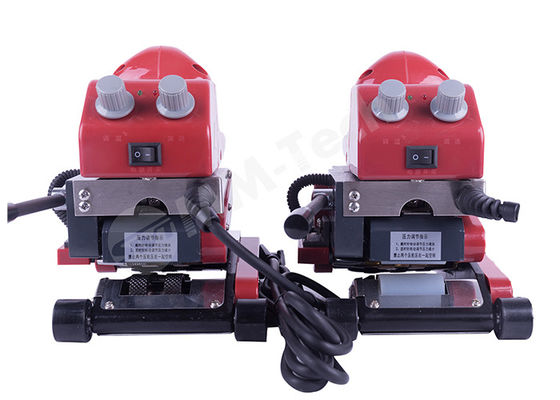

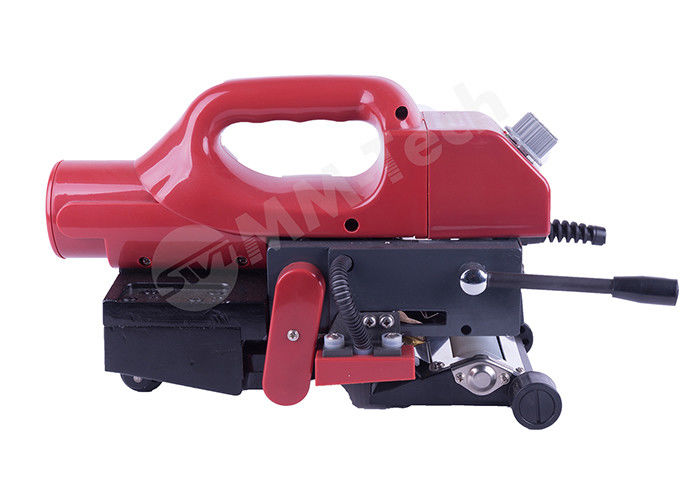

Hot Wedge Welder Decomposition of image:
Hot Wedge Welder Features:
1. Standard Production: moulding process
2. Control System: advanced digital display
3. Pressure Adjustment: pressure adjusted based on the material and thickness.
4. Pressure Roller: imported silica gel pressure roller, steel pressure roller is special for welding over 1.0mm thickness.
5. Heating System: Customized metal hot wedge with powerful heating elements.
Hot Wedge Welder Sales Promotion:
If you buy 1 set HDPE Geomembrane Welding Machine, we will send you 1 hot air gun, 1 cutter and 20 blades as gifts.
Delivery to your office by Fedex express, you will receive it about 7-10 days after your payment.
