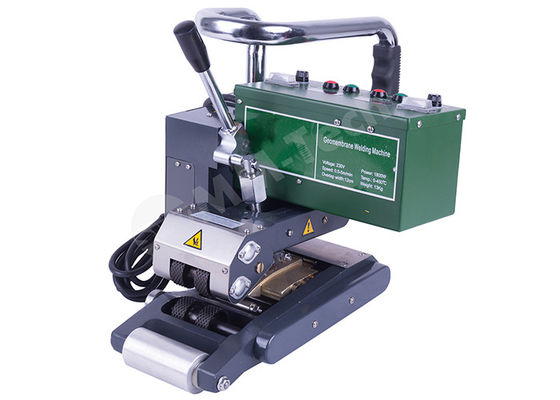

Welding Polyethylene Geomembrane Hot Wedge Welder With Digital Display

Large Image : Welding Polyethylene Geomembrane Hot Wedge Welder With Digital Display

Product Details:

Place of Origin:	China
Brand Name:	MM-Tech
Certification:	CE
Model Number:	SWT-NS900D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$2500-2700/set
Packaging Details:	495370400mm
Delivery Time:	5-8 days
Payment Terms:	T/T, Western Union
Supply Ability:	10 sets / day

Contact Now

Detailed Product Description

Product Name:	Geomembrane Welding Machine	Applicable Industries:	Roof Constructions, Sewage Treatment, Etc
Size:	495370400mm	Welding Speed:	0.5-5.0m/min
Weight:	19kg/13kg	Welding Thickness:	1.0-3.0mm
Frequency:	50-60HZ	Warranty:	2 Years
Power:	1800w	Certification:	CE
Highlight:	Geomembrane Hot Wedge Welder , Polyethylene Hot Wedge Welder , Geomembrane Wedge Welder With Digital Display

Welding Polyethylene Pond Liner Membrane Digital Display Hot Wedge Welder

Hot Wedge Welder Description:

SWT-NS700 HDPE liner welding machine adopts advanced hot air heating system. With small, light and high speed, it perfects the welding quality even if corrosive materials and bad working environment. This machine is specially designed for tunnels, subway, water conservancy, aquaculture, biogas plants, landfills, chemical mining, sewage treatment, roof constructions and other waterproofing projects.

Hot Wedge Welder Specification:

Item no.:	SWT-NS900D
Voltage:	220V/110V
Frequency:	50/60 HZ
Power:	1800w
Welding Speed:	0.5-5.0m/min
Overlap Width:	12 cm
Heating Temperature:	20-620℃
Certification:	CE
Warranty:	2 years

Hot Wedge Welder Features:

Control System	Advanced intelligent digital control system
Drive System	High power and torque motor combined with double precise driving motion
Pressure Adjustment System	Advance "T" style jib design and pressure regulation structure
Pressure Roller	Special stainless steel pressure roller with strong pressure force
Heating System	Powerful metal hot wedge and special heating system design

Hot Wedge Welder Exploded View.

Welding Polyethylene Geomembrane Hot Wedge Welder With Digital Display 0

Working principle:

Electric machine carried with above and below pressure wheel and turn it through speed-slow box and chain steel,

and heating the bracket up and turn thermal wedge to plug in between the two main materials, meantime let the pressure

bracket press the pressure wheel to made the thermal-fused mother material together.

Package:

Welding Polyethylene Geomembrane Hot Wedge Welder With Digital Display 1
