0.2mm - 1.5mm LDPE Geomembrane Wedge Welder For Thermo Fused Material

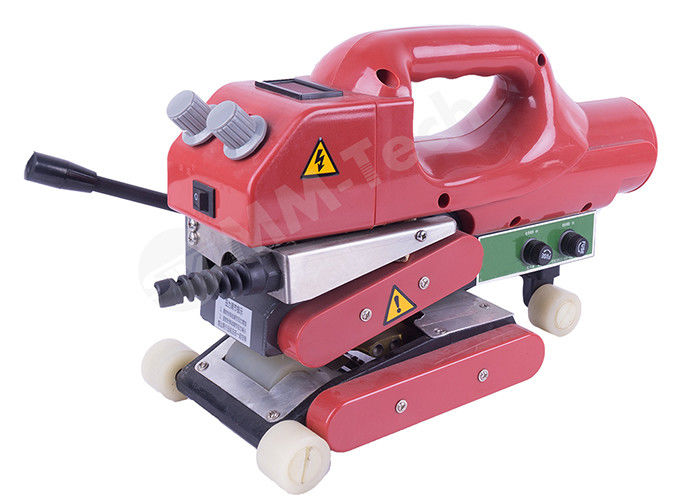

Large Image : 0.2mm - 1.5mm LDPE Geomembrane Wedge Welder For Thermo Fused Material

Product Details:

Place of Origin:	China
Brand Name:	MM-Tech
Certification:	CE
Model Number:	SWT-NS800D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$1200-1300/set
Packaging Details:	370240285mm
Delivery Time:	5-8 days
Payment Terms:	T/T, Western Union
Supply Ability:	10 sets / day

Contact Now

Detailed Product Description

Product Name:	Geomembrane Welding Machine	Size:	370240285mm
Welding Speed:	0.5-5.0m/min	Welding Thickness:	0.2-1.5mm
Weight:	9kg/5kg	Protection Class:	Class Ⅱ
Warranty:	2 Years	Power:	800w
Digital Display:	Yes	Certification:	CE
Highlight:	LDPE Geomembrane Wedge Welder , 1.5mm Geomembrane Wedge Welder , 9kg Geomembrane Wedge Welder

0.2 - 1.5mm LDPE Geomembrane Liners Wedge Geomembrane Welding Machine

Geomembrane Welding Machine Introduction:

SWT-NS series geo-membrane welding machine is our new developed products, which can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and so on.

Geomembrane Welding Machine Specification:

Voltage:	220v or 110v
Frequency	50/60Hz
Power:	800W or 1000W
Welding speed:	0.5-5m/min
Heating temperature:	0-450C
Thickness of material:	0.2mm-1.5mm( PVC: 0.2-2.0mm )
Overlap width:	10cm ( can be customized)
Welding width:	12.5mm×2,interior cavity 12mm( can be customized )
Seam strength:	≥85% base material (tensile resistant in shear direction)
Weight:	5kgs
Insulation class:	class ll
Usage	for welding geomembrane,such as PE PVC EVA and so on

Tips:

1. For welding membrane with thickness below 1.0 mm, the silica pressure roller is the suitable choice.

2. For welding membrane with thickness above 1.0mm, the steel pressure roller is the best choice.

Geomembrane Welding Machine Promotion:

From now on to the end of the month:

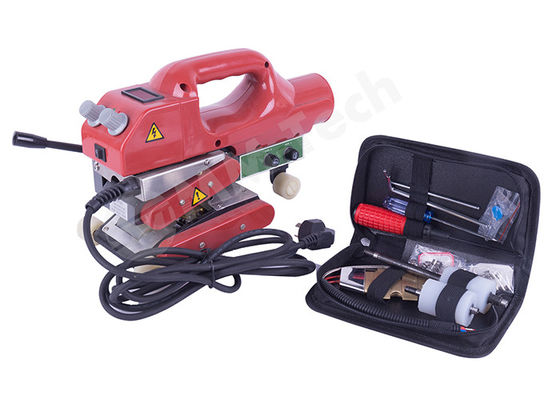

------------ Buy 1 set SWT-NS800D, we will send 1 hot air gun, 1 cutter and 20 blades as gifts.

0.2mm - 1.5mm LDPE Geomembrane Wedge Welder For Thermo Fused Material 0

Exhibition:

0.2mm - 1.5mm LDPE Geomembrane Wedge Welder For Thermo Fused Material 1
