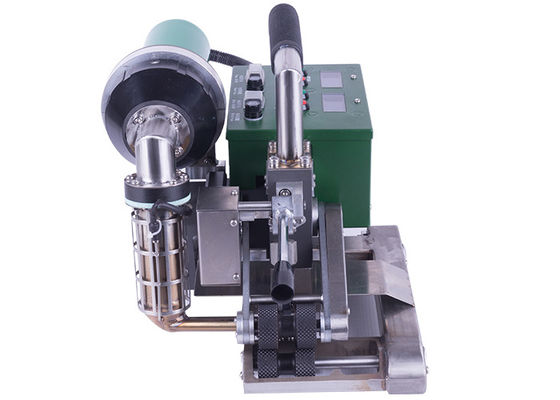

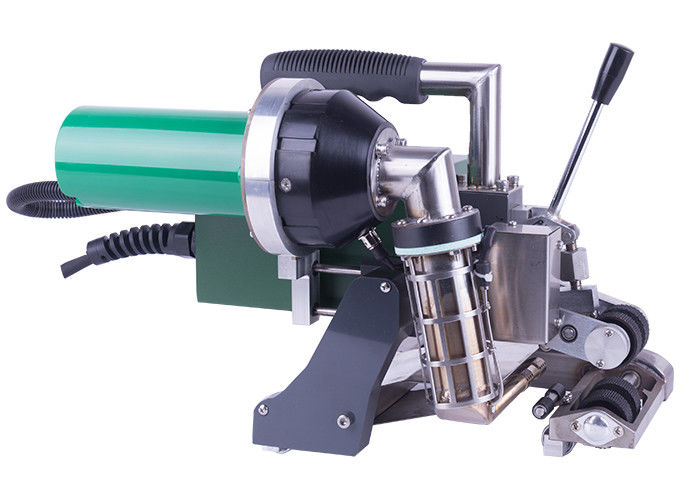

0.5 - 3.0mm HDPE Geomembrane Welding Machine for Waterproof Projects

Large Image : 0.5 - 3.0mm HDPE Geomembrane Welding Machine for Waterproof Projects

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-NS700

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$2,700 - 2,900 / set
Packaging Details:	1 Alloy Box and 1 Carton
Delivery Time:	Within 7 days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	9,000 sets / month

Contact Now

Detailed Product Description

Model:	SWT-NS700	Voltage:	220V/110V
Frequency:	50/60Hz	Power:	3000W
Overlap Width:	16cm	Welding Speed:	0.2 - 6m / Min
Temperature:	20 - 620℃ Adjustable	Saem Width:	15mm*2, Interior Cavity 15mm
Welding Thickness:	0.5-3.0mm	Applicable Materials:	PE PP PVC PVDF ECB
Highlight:	HDPE geomembrane welding machine , geomembrane welding machine for waterproofing , 0.5-3.0mm geomembrane welder

Geomembrane Welding Machine Introduction

It adopts advanced hot wedge structure.
With its high power, high speed and pressure.
It weld 0.5-3.0mm thickness hot melt material such as HDPE, LDPE, PVC, EVA, ECB, PP.
This machine is specially designed for water conservancy, aquaculture, landfills, chemical mining, sewage treatment, roof constructions and other waterproofing projects.

Geomembrane Welding Machine Application

0.5 - 3.0mm HDPE Geomembrane Welding Machine for Waterproof Projects 0

Geomembrane Welding Machine Datasheet

Model	SWT-NS700
Voltage	220V/110V
Frequency	50/60Hz
Overlap Width	16cm
Welding Speed	0.2 - 6m / min
Temperature	20 - 620℃ Adjustable
Saem Width	15mm*2, interior cavity 15mm
Welding Thickness	0.5-3.0mm
Weldable Materials	PE PP PVC EVA ECB
Application	Waterproofing Projects
